Name: OEM Oxide Alumina Ceramic Plates For Semiconductor Packaging 3300Mpa
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	95% Alumina Ceramics	Color:	White
Density:	3.6g/cm³	Compressive Strength:	3300 Mpa
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	OEM alumina ceramic plates , 3300Mpa alumina ceramic plates , 3300Mpa aluminium oxide ceramic

Product Description

OEM Oxide Alumina Ceramic Plates For Semiconductor Packaging (3300Mpa)

Premium Ceramic Solution for Electronics and Semiconductor Industry

High-performance 95% alumina ceramics offering exceptional mechanical, thermal, and electrical properties for demanding industrial applications.

Key Specifications

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Density	3.6g/cm³
Compressive Strength	3300 Mpa
Customization	OEM/ODM Acceptable
Origin	Wuxi Jiangsu, China
Minimum Order Quantity	100 PCS
Package	Carton

Product Overview

Alumina ceramics are widely used across multiple industries due to their superior performance characteristics. Our 95% alumina ceramics meet both general usage requirements and specialized performance needs.

Particularly suited for the electronics industry, these ceramics are commonly employed in semiconductor packaging and focusing potentiometers. Their excellent properties make them the most frequently used ceramic material in industrial applications.

Technical Comparison of Alumina Ceramic Grades

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

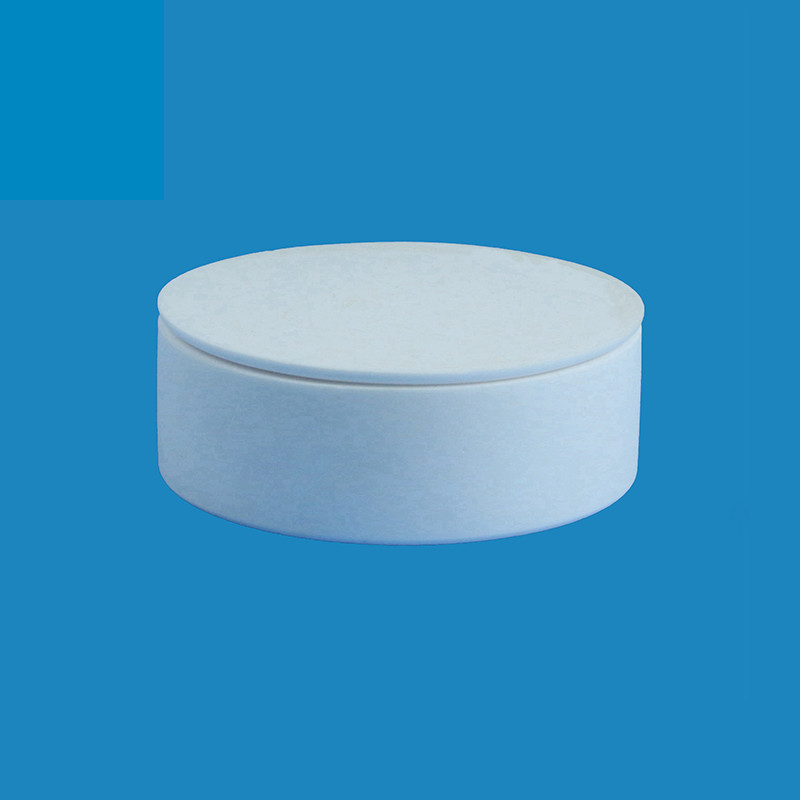

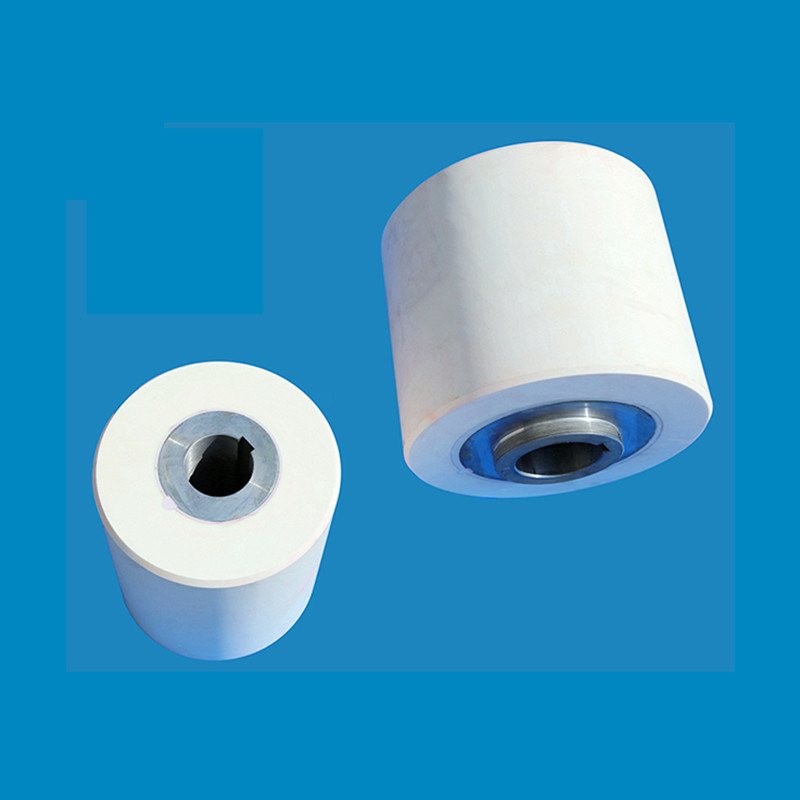

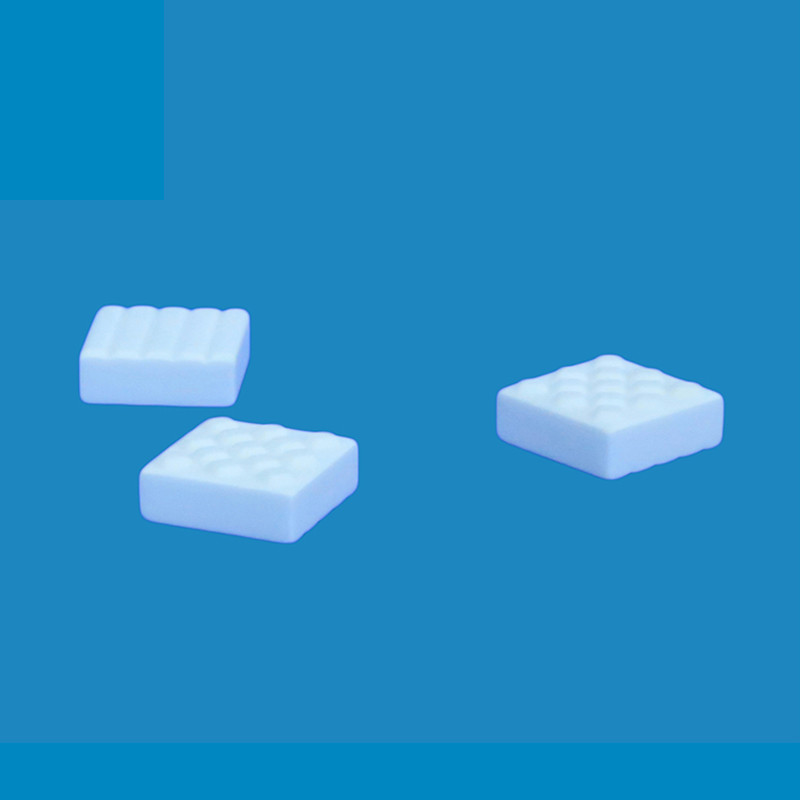

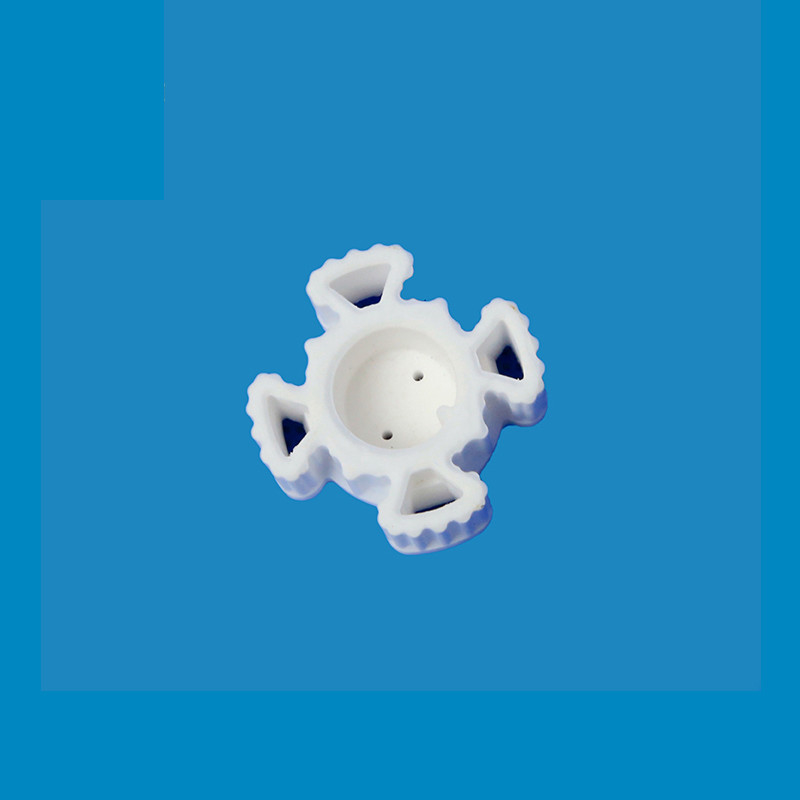

Product Gallery

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	95% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
