Name: Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	99% Alumina Ceramics	Color:	White
Density:	3.85g/cm³	Type:	Custom
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	Al2O3 alumina ceramic machining , Refractory alumina ceramic machining , Custom alumina 99.5

Product Description

Custom Al₂O₃ Alumina Ceramic Machining 99.5% for Refractory Furnace

Product Specifications

Attribute	Value
Material	99% Alumina Ceramics
Color	White
Density	3.85g/cm³
Type	Custom
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Refractory Furnace Pipe 99% Alumina Ceramics with excellent properties. Alumina ceramic is a precision ceramic material, currently the most widely applied and highest production volume new ceramic material in oxide ceramics.

Material Properties Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

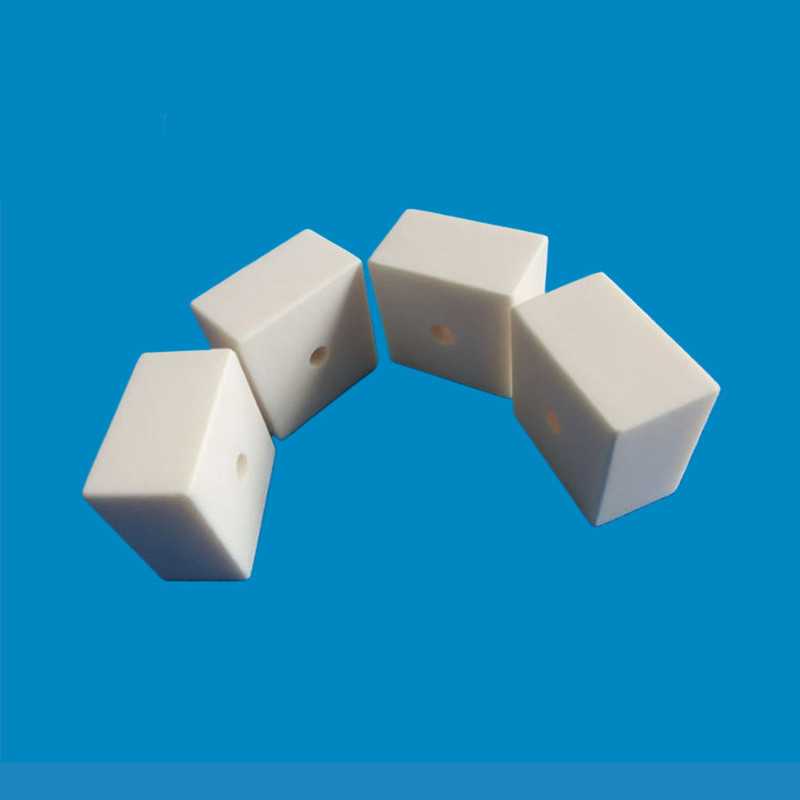

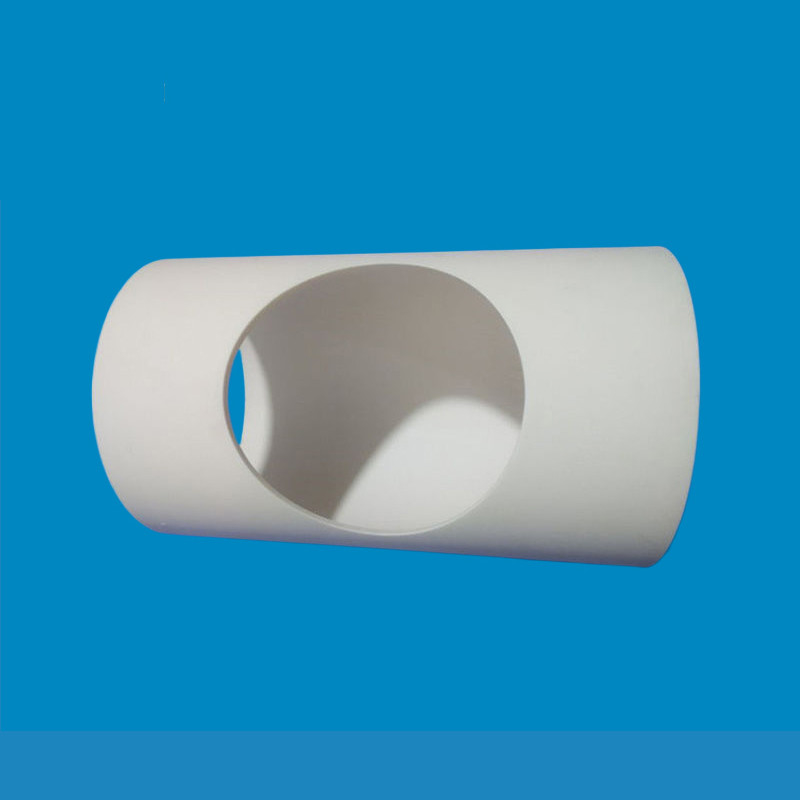

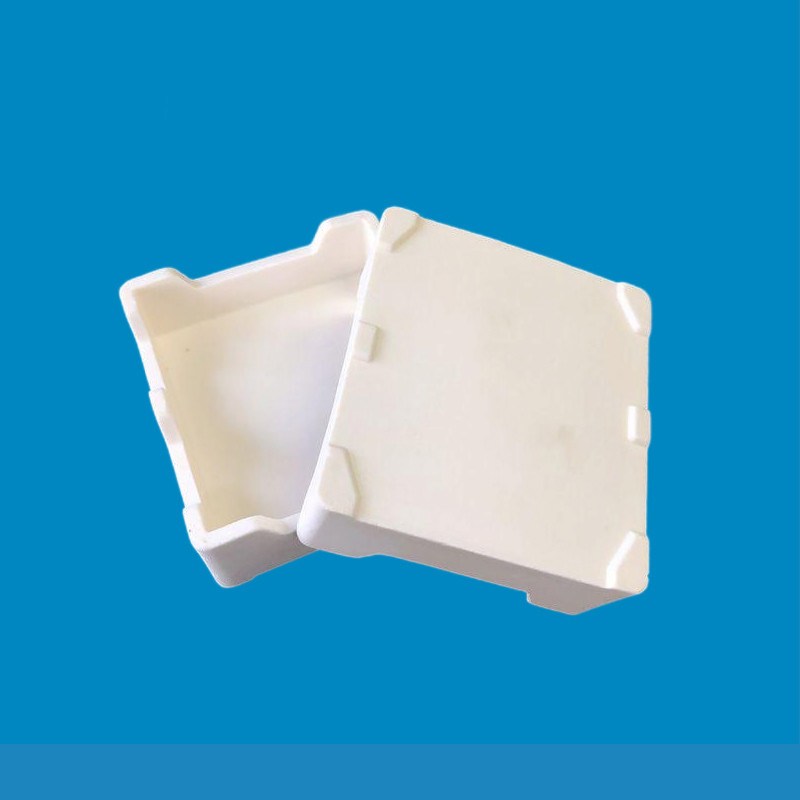

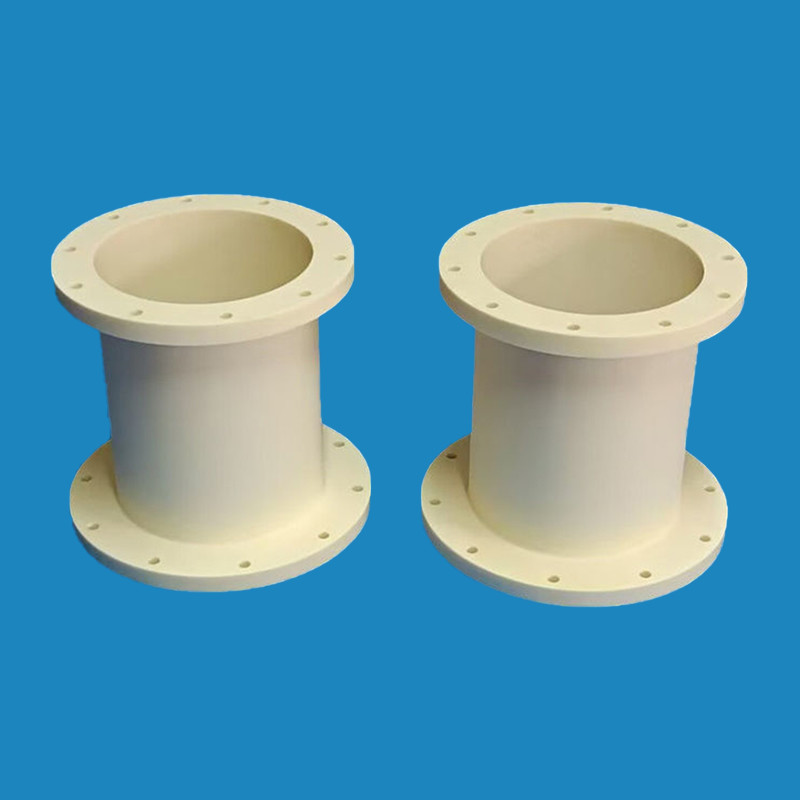

Product Images

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 0$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 1$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 2$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 3$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 4$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 5$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 6$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 7$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 8$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 9$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 10$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 11$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 12$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 13$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 14$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 15$

$Custom Al2O3 Alumina Ceramic Machining 99.5% for Refractory Furnace 16$
