Name: Customized 99% Oxide Alumina Based Ceramics Parts Tube For Aerospace Electronics
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	99% Alumina Ceramics	Density:	3.85g/cm³
Flexural Strength:	350 Mpa	Shape:	Customizable
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	Customized Alumina Based Ceramics , aerospace Alumina Based Ceramics , alumina parts tube

Product Description

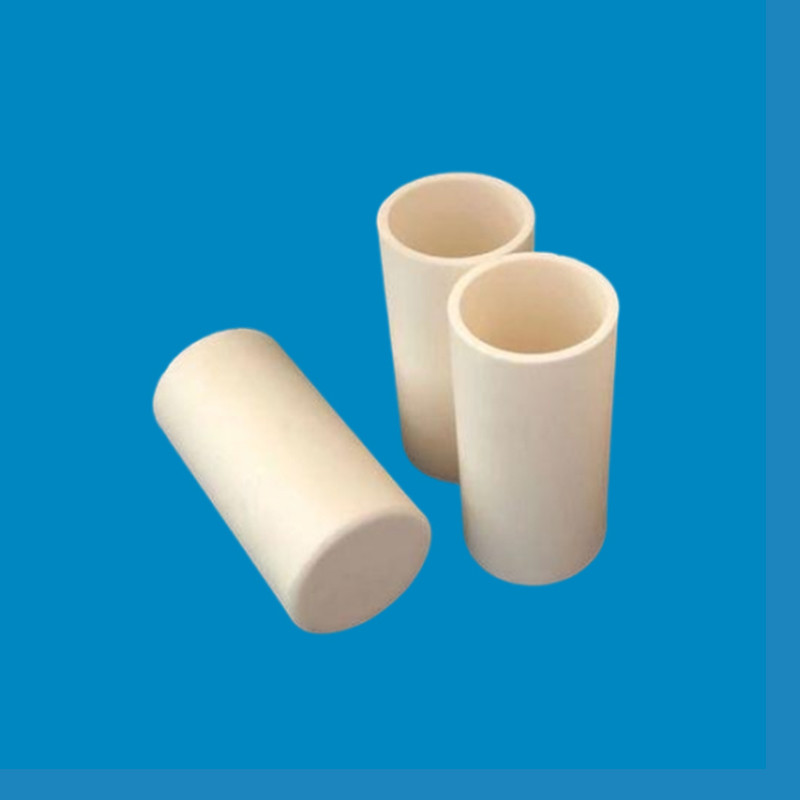

Customized 99% Oxide Alumina Based Ceramics Parts Tube For Aerospace Electronics

Product Specifications

Attribute	Value
Material	99% Alumina Ceramics
Density	3.85g/cm³
Flexural Strength	350 Mpa
Shape	Customizable
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramic is an advanced ceramic material primarily composed of Al2O3, offering exceptional performance characteristics for demanding industrial applications. This 99% alumina ceramic variant provides superior mechanical strength, high temperature resistance, excellent corrosion resistance, and outstanding wear resistance.

Widely used across multiple industries including electronics, textiles, chemicals, construction, and aerospace, alumina ceramics represent one of the most versatile and widely produced oxide ceramic materials available today.

Technical Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric Constant	εr	10	10	10	10

Product Gallery
