Name: Ceramic Alumina Machining Bushing Spacer Insulator Parts For Electrical
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	99% Alumina Ceramics	Density:	3.85g/cm³
Modulus Of Elasticity:	380 Gpa	Color:	White Or Yellow
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	alumina machining Insulator , Electrical alumina machining , alumina bushing Spacer

Product Description

Ceramic Alumina Machining Bushing Spacer Insulator Parts For Electrical

Product Specifications

Material	99% Alumina Ceramics
Density	3.85g/cm³
Modulus of Elasticity	380 Gpa
Color	White or yellow
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 PCS
Package	Carton

Product Description

Our high-purity alumina ceramic spacers contain 99% Al2O3 content, sintered at 1600-1650°C for superior electrical insulation properties. These components are ideal for integrated circuit boards and electronic insulation applications, offering excellent high-frequency dielectric performance and electrical insulation characteristics.

Material Properties Comparison

Property	Unit	95% Alumina	97% Alumina	99% Alumina	99.7% Alumina
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric Constant	εr	10	10	10	10

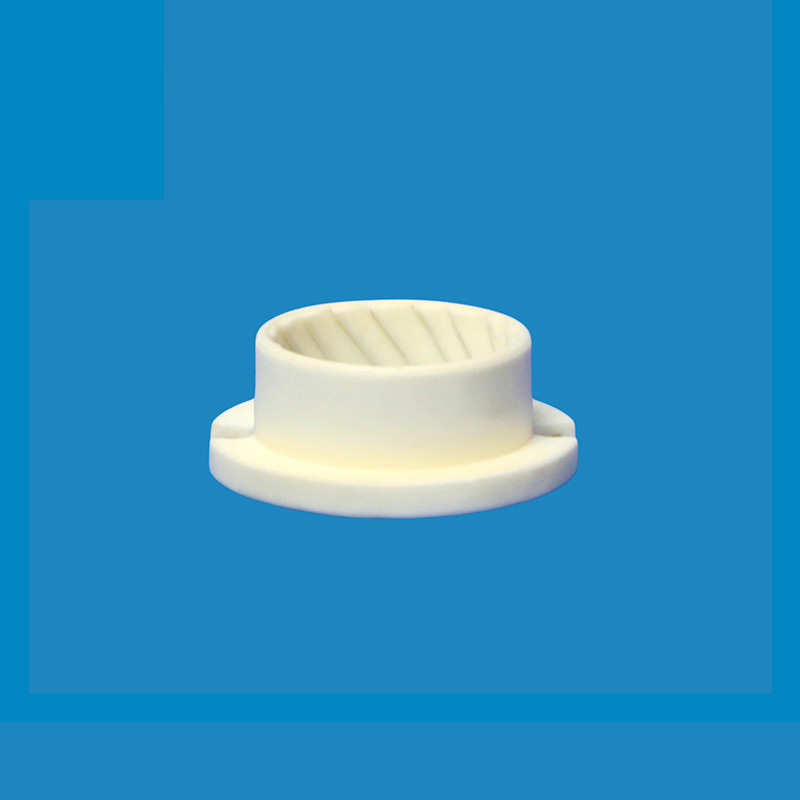

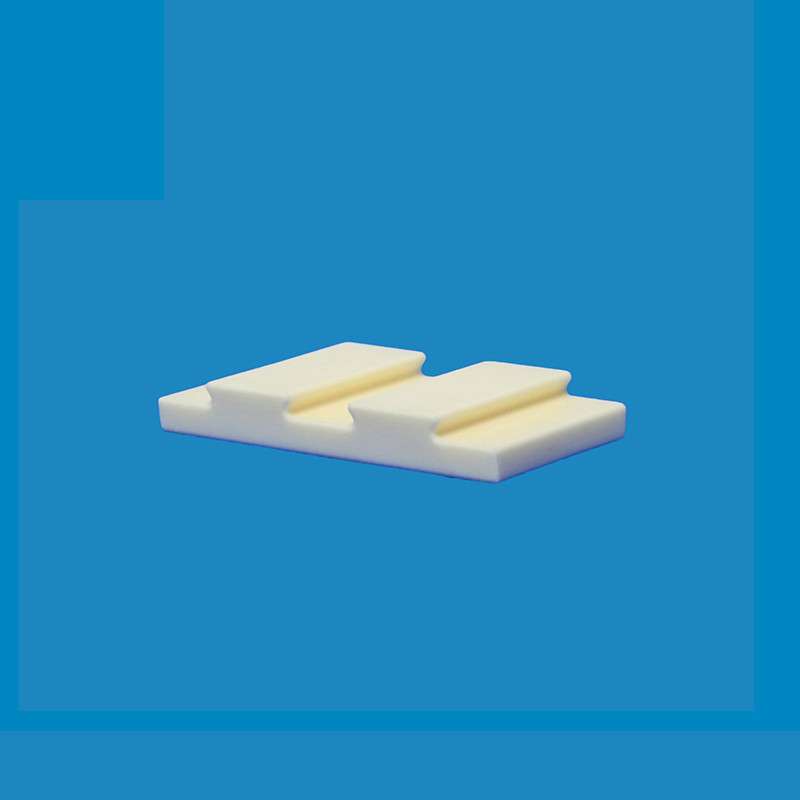

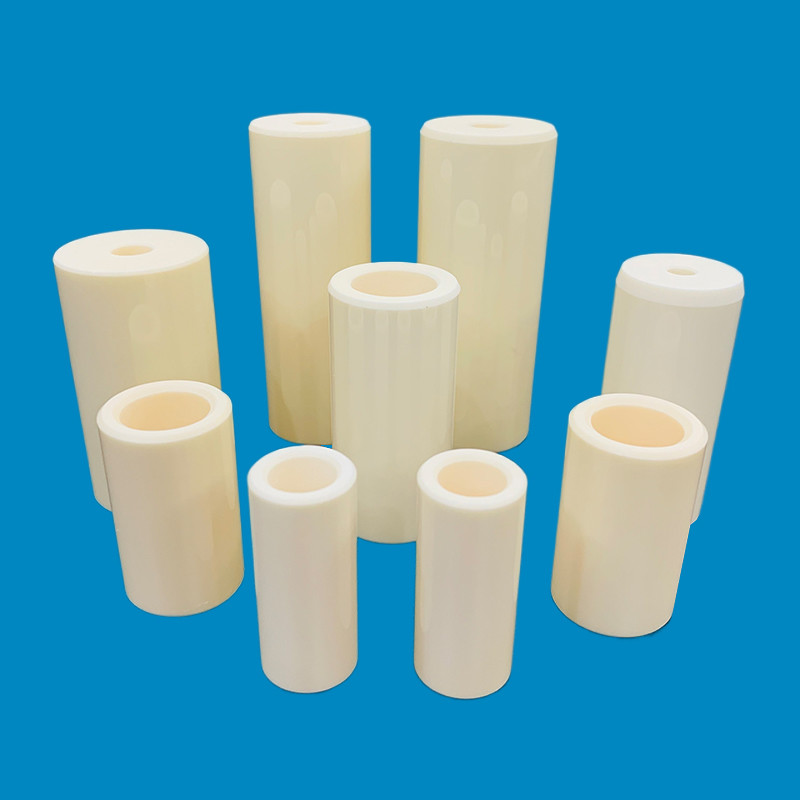

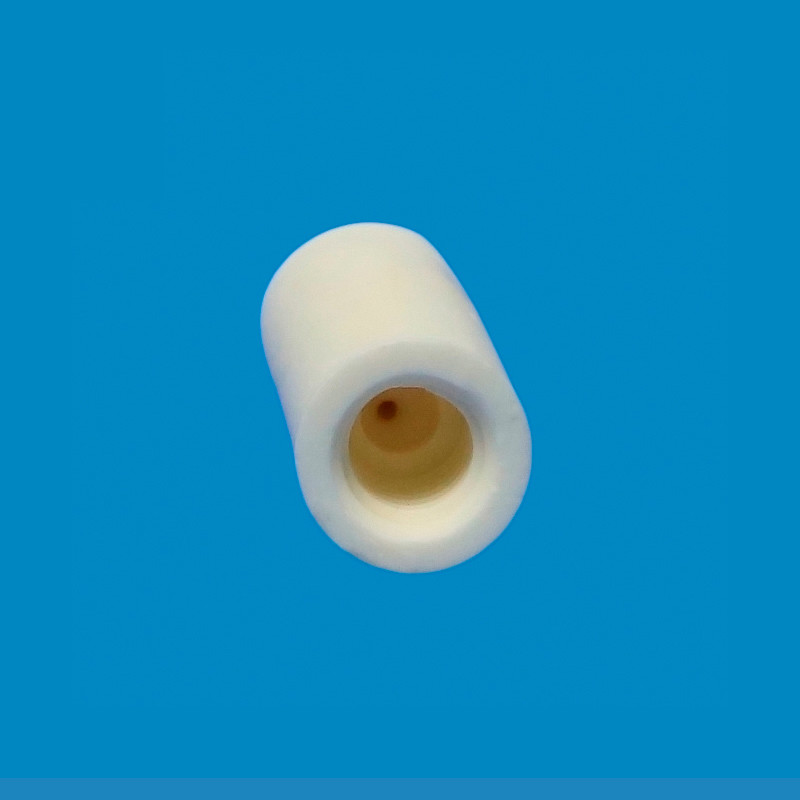

Product Images

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	99% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Supply Ability:	5000 PCS/WEEK
