Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation

Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Cordierite Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: Negotiable
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Cordierite Ceramics Thermal Conductivity: 1.3 W/m.k
Thermal Shock Resistance: 250°C Volume Resistivity: >1012 Ohm-cm
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

dielectric Cordierite Ceramic

,

Cordierite Ceramic material

,

Cordierite alumina refractory

Product Description

Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation
Key Features
  • Excellent thermal shock resistance (250°C)
  • Low thermal expansion characteristics
  • High volume resistivity (>1012 ohm-cm)
  • Superior dielectric properties
  • Wide temperature range applications (up to 1400℃)
Technical Specifications
Attribute Value
Material Cordierite Ceramics
Thermal Conductivity 1.3 W/m.k
Thermal Shock Resistance 250°C
Volume Resistivity >1012 ohm-cm
Bulk Density 2.6 gm/cc
Maximum Use Temperature 1400℃
Hardness 800 HV
Bending Strength 900 Kgf/cm2
Compressive Strength 3500 Kgf/cm2
Thermal Expansion ≤2.0 × 10-6/℃
Product Description

Cordierite ceramic alumina refractory material offers exceptional thermal shock resistance and low thermal expansion, making it ideal for demanding filtration and separation applications. Its excellent dielectric properties also make it suitable for electronic device components.

The material's primary chemical composition includes MgO, Al2O3, and SiO2, providing superior performance in high-temperature environments while maintaining structural integrity.

Manufacturing & Customization

We accept OEM and ODM requests with a minimum order quantity of 100 pieces. Our manufacturing facility in Wuxi, Jiangsu, China produces high-quality cordierite ceramic components packaged securely in cartons for safe transportation.

Product Images

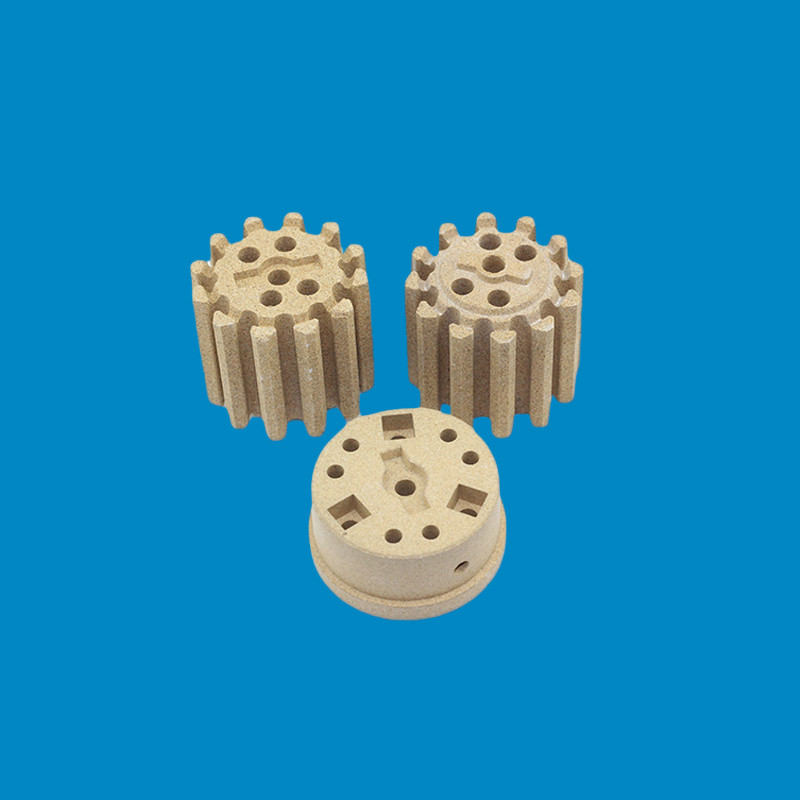

Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 0

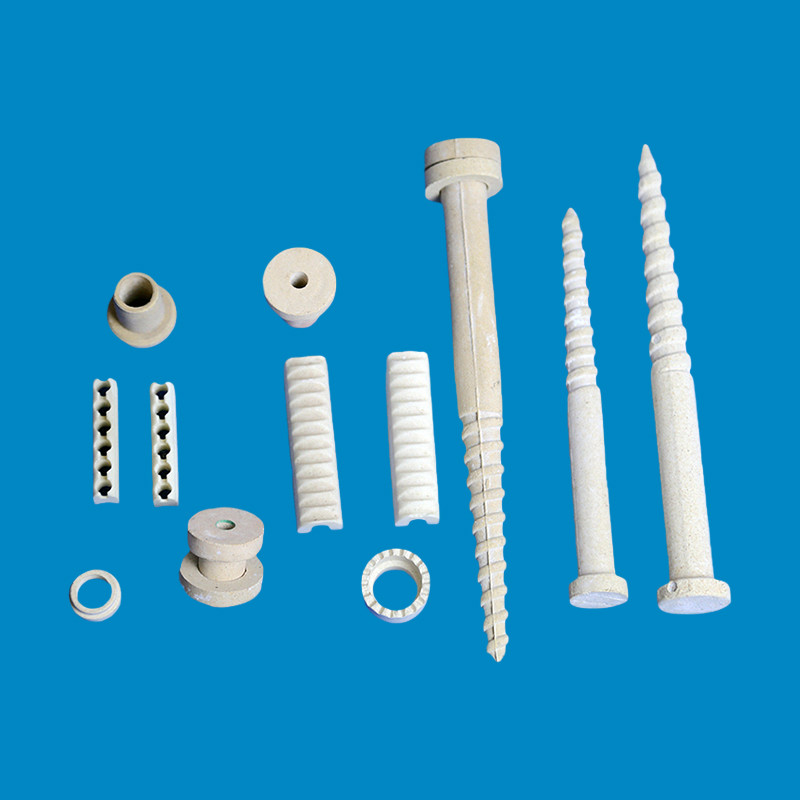

Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 1

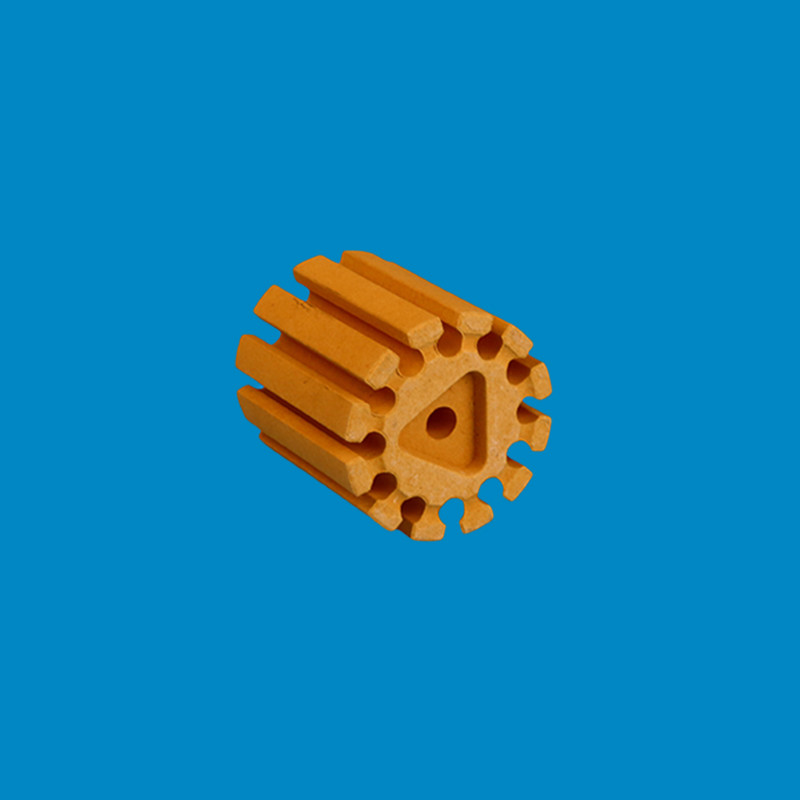

Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 2

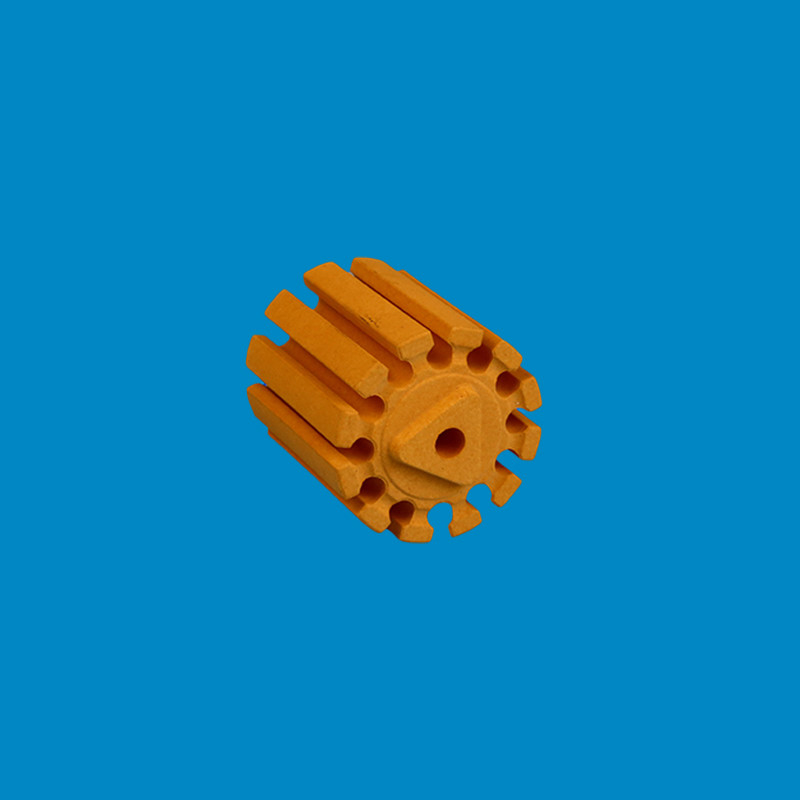

Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 3
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 4
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 5
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 6
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 7
Dielectric Cordierite Ceramic Alumina Refractory Material For Filtration And Separation 8
