Home > Products> Cordierite Ceramic> Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials

Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials

Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Cordierite Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: Negotiable
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Cordierite Ceramics Color: Customizable
Hardness: 800 HV Bending Strength: 900 Kgf/cm2
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Synthesized Cordierite Ceramic

,

Thermal Radiation Cordierite Ceramic

,

Synthesized alumina ceramic ring

Product Description

Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials
Product Attributes
Attribute Value
Material Cordierite Ceramics
Color Customizable
Hardness 800 HV
Bending Strength 900 Kgf/cm2
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description

Efficiently control shrinkage with high-performance cordierite ceramics offering industrial-grade 900 Kgf/cm2 bending strength. These advanced materials are engineered for demanding industrial applications.

Cordierite ceramics are primarily used in industrial applications including ceramic kiln shed plates, saggars, electronic packaging materials, catalyst carriers, foam ceramics, bioceramics, and high-temperature thermal radiation materials.

With limited natural reserves and low-grade availability, most cordierite materials are artificially synthesized. This material offers exceptional properties including:

  • Low thermal expansion coefficient
  • High compressive strength
  • Excellent fire resistance
  • Superior thermal shock resistance

These properties make cordierite ceramics ideal for refractory industry applications, particularly valuable for high-temperature environments.

Technical Specifications
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012
Product Images

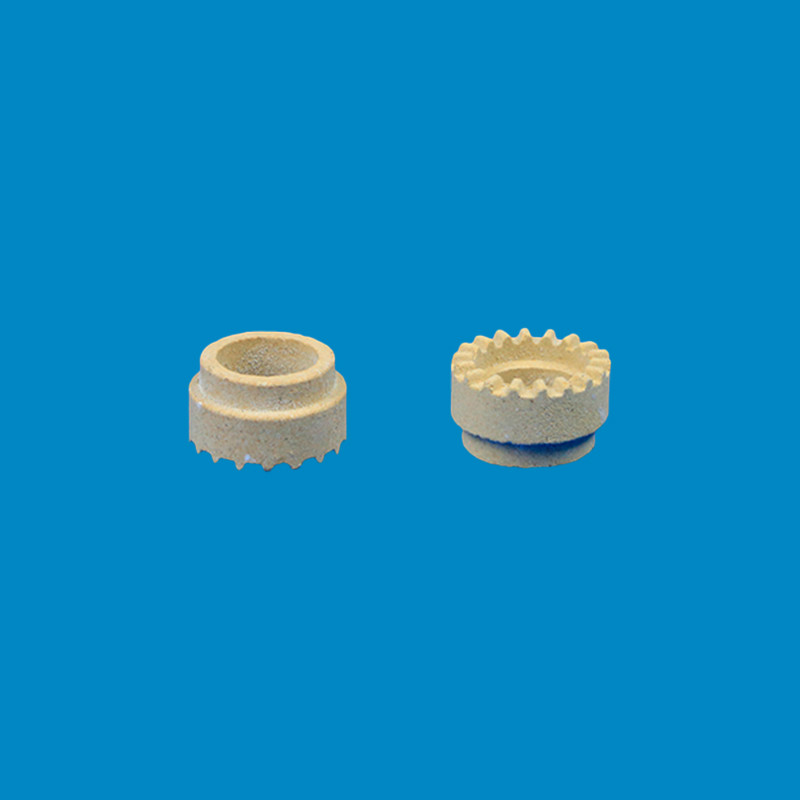

Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 0

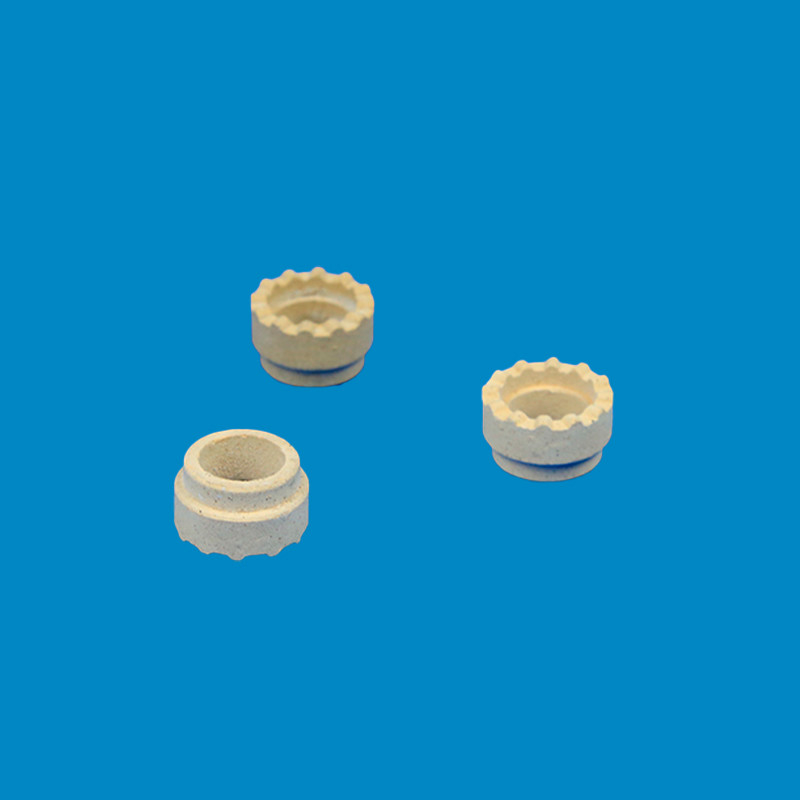

Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 1
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 2
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 3
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 4
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 5
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 6
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 7
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 8
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 9
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 10
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 11
Synthesized Kiln Alumina Cordierite Ceramic Ring Thermal Radiation Materials 12
