Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance

Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Cordierite Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: Negotiable
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Cordierite Ceramics Color: Customizable
Hardness: 800 HV Bending Strength: 900 Kgf/cm2
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Customized alumina refractory products

,

Cordierite alumina refractory products

,

Cordierite refractory ceramic products

Product Description

Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance
Product Specifications
Attribute Value
Material Cordierite Ceramics
Color Customizable
Hardness 800 HV
Bending Strength 900 Kgf/cm²
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description

Cordierite is a mineral with extremely high hardness, high density, and excellent wear resistance, significantly enhancing the physical properties of ceramics. Compared to other materials, cordierite offers superior thermal expansion coefficient and thermal conductivity, providing exceptional control over ceramic shrinkage rates and thermal stability.

Technical Parameters
Item Test Condition Unit & Symbol Cordierite Ceramics
Main Chemical Ingredient MgO, Al₂O₃, SiO₂
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm² 900
Compressive Strength 20℃ Kgf/cm² 3500
Thermal Expansion 1×10⁻⁶/℃ ≤2.0
Thermal Conductivity 25℃-30℃ W/m*k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectric Constant 1MHz.25℃ 6
Dielectric Strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 10¹²
Product Images

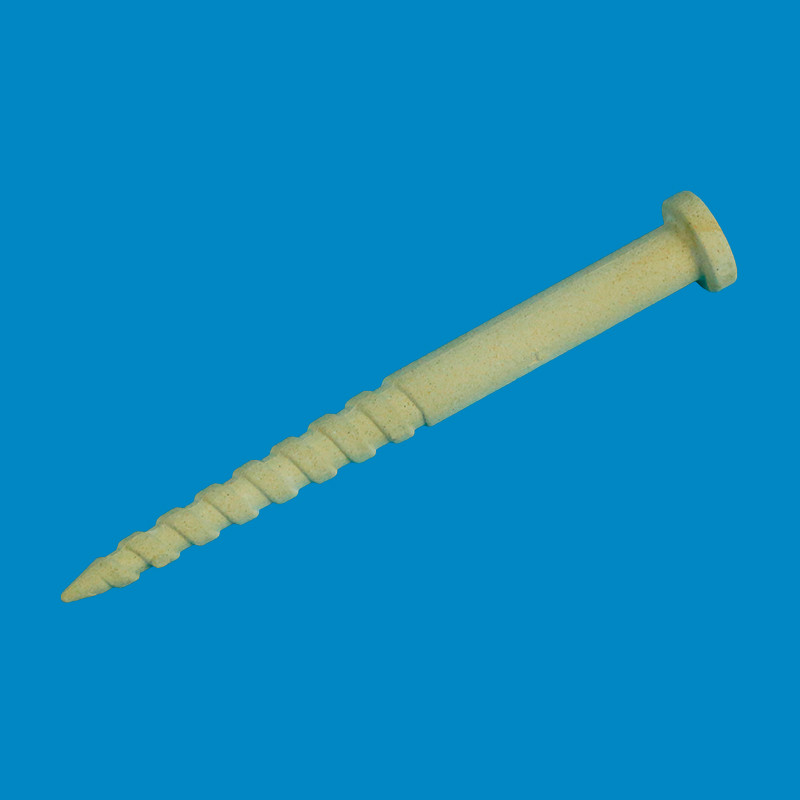

Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 0
Customizable cordierite ceramic industrial components

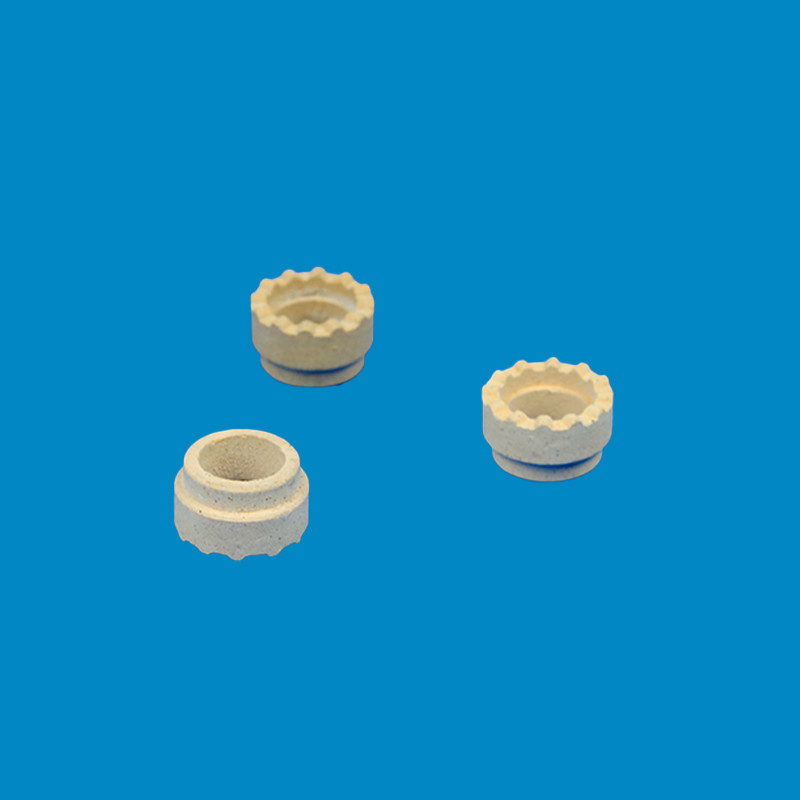

Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 1
High-performance cordierite ceramic parts

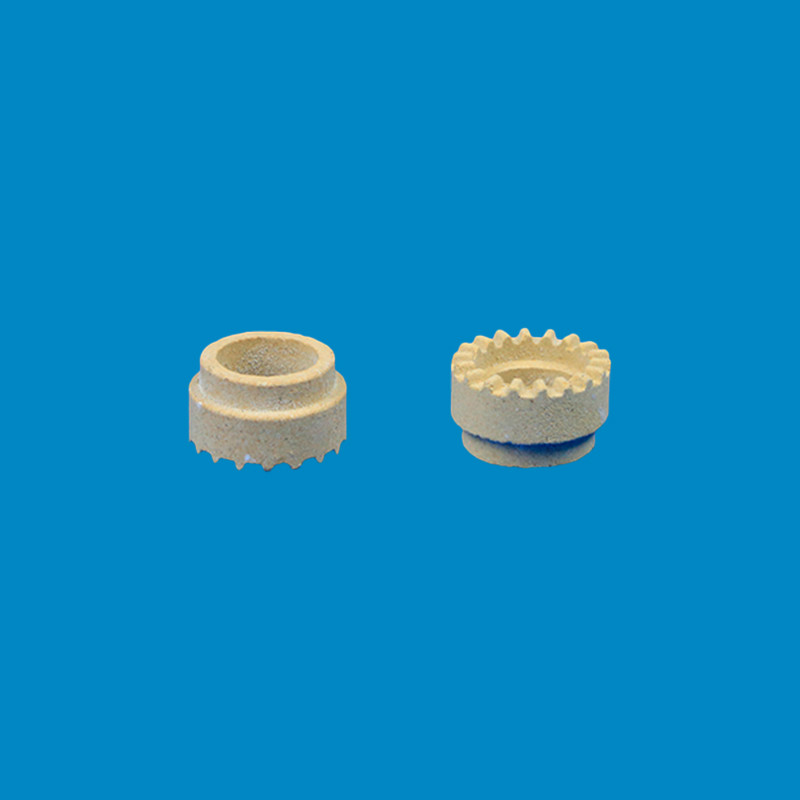

Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 2
Durable cordierite ceramic industrial solutions

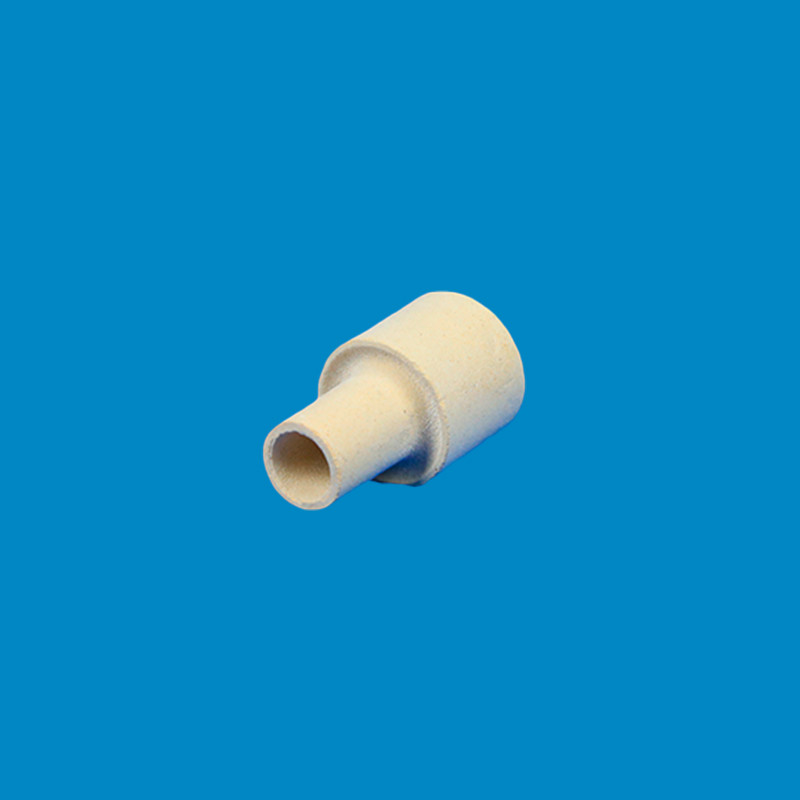

Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 3
Precision cordierite ceramic manufacturing
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 4
Heat resistant alumina ceramic ring
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 5
Industrial-grade cordierite ceramic components
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 6
Custom cordierite ceramic parts
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 7
High-density cordierite ceramic products
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 8
Thermal resistant ceramic components
Customized Cordierite Ceramic Alumina Refractory Products Tube Rod Wear Resistance 9
Alumina ceramic ring with high insulation
