Thermal Expansion Ceramic Refractory Materials Cordierite OEM

Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Cordierite Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: Negotiable
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Cordierite Ceramics The Main Chemical Ingredient: MgO, Al2O3,SiO2
Hardness: 800 HV Compressive Strength: 3500 Kgf/cm2
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Thermal Expansion ceramic refractory materials

,

OEM ceramic refractory materials

,

OEM cordierite refractory

Product Description

Thermal Expansion Ceramic Refractory Materials Cordierite OEM
Key Specifications
Attribute Value
Material Cordierite Ceramics
Main Chemical Composition MgO, Al2O3, SiO2
Hardness 800 HV
Compressive Strength 3500 Kgf/cm2
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Overview

Cordierite ceramics are premium low thermal expansion ceramics with exceptional thermal stability. First synthesized in the 1880s, these materials have been refined for over a century to deliver optimal performance in demanding industrial applications.

Technical Properties
Property Test Condition Unit Value
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Bending Strength 20℃ Kgf/cm2 900
Thermal Expansion 1×10-6/℃ ≤2.0
Thermal Conductivity 25℃-30℃ W/m·k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectric Constant 1MHz, 25℃ 6
Dielectric Strength ac-kV/mm 10
Volume Resistivity 20℃ ohm-cm > 1012
Product Features
  • Exceptional thermal stability with low expansion coefficient (≤2.0×10-6/℃)
  • High temperature resistance up to 1400℃
  • Superior mechanical strength (3500 Kgf/cm2 compressive strength)
  • Excellent electrical insulation properties (Volume Resistivity > 1012 ohm-cm)
  • Custom manufacturing options available (OEM/ODM)
Product Images

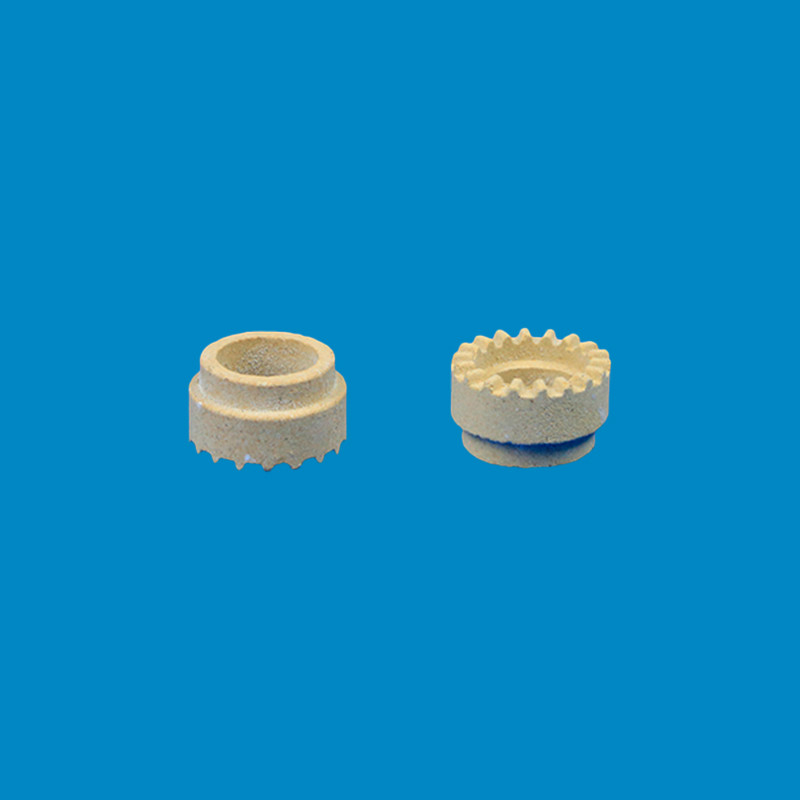

Thermal Expansion Ceramic Refractory Materials Cordierite OEM 0

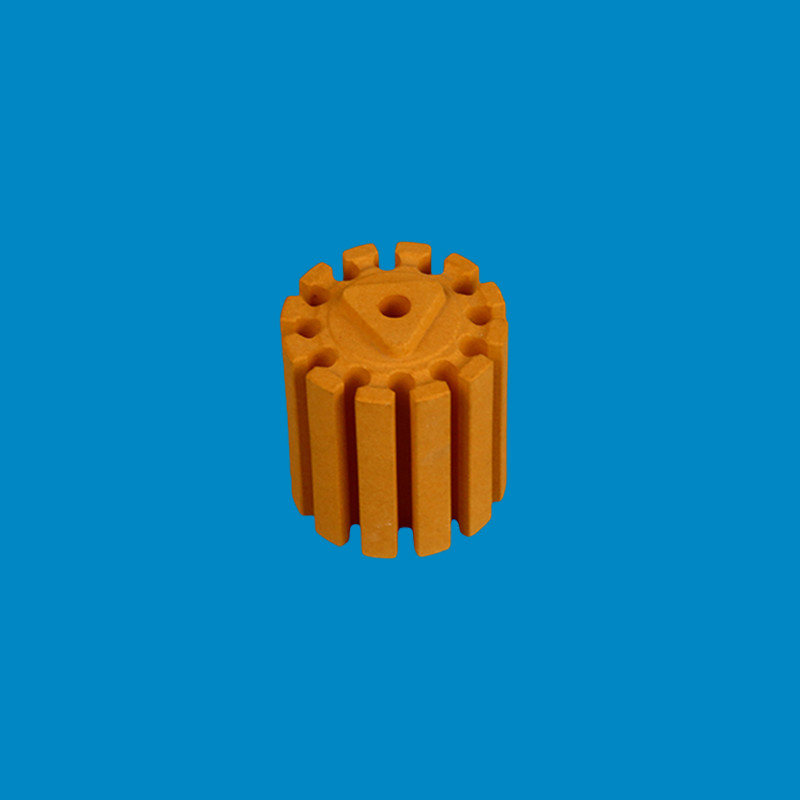

Thermal Expansion Ceramic Refractory Materials Cordierite OEM 1

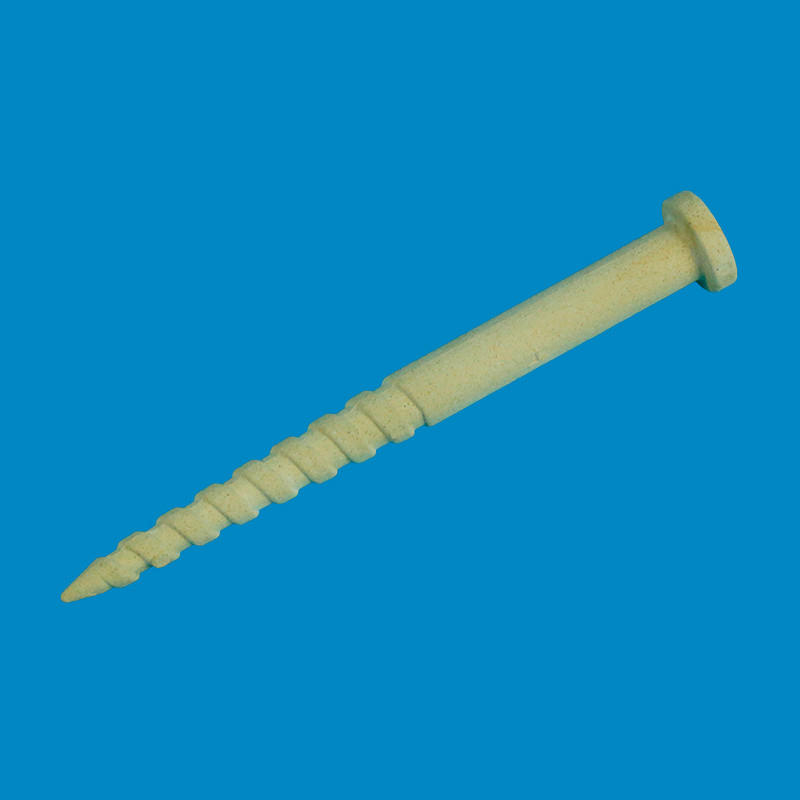

Thermal Expansion Ceramic Refractory Materials Cordierite OEM 2

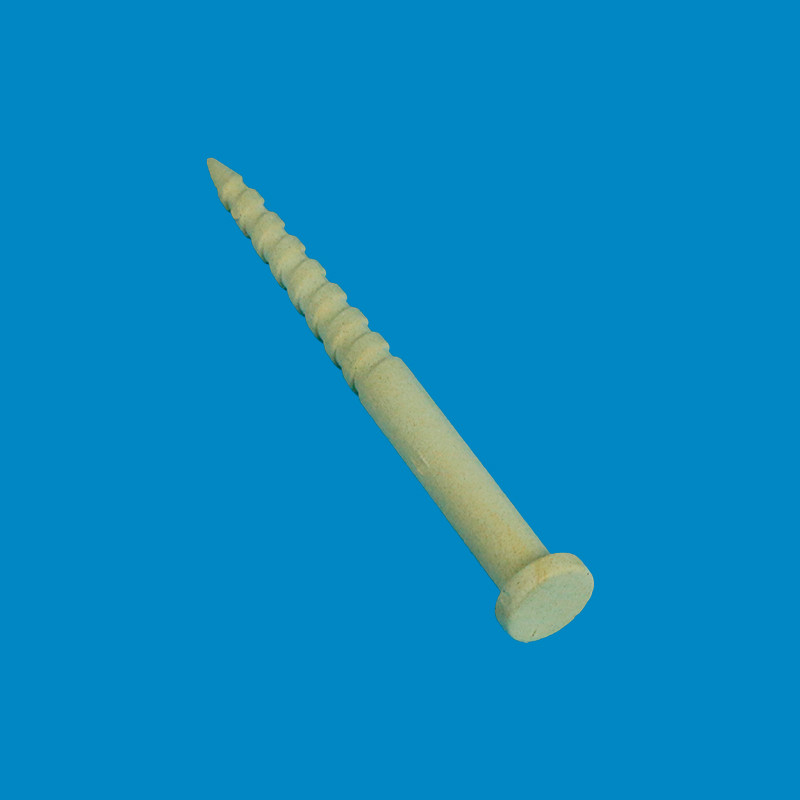

Thermal Expansion Ceramic Refractory Materials Cordierite OEM 3
Thermal Expansion Ceramic Refractory Materials Cordierite OEM 4
Thermal Expansion Ceramic Refractory Materials Cordierite OEM 5
Thermal Expansion Ceramic Refractory Materials Cordierite OEM 6
Thermal Expansion Ceramic Refractory Materials Cordierite OEM 7
Thermal Expansion Ceramic Refractory Materials Cordierite OEM 8
Thermal Expansion Ceramic Refractory Materials Cordierite OEM 9
