High Density Cordierite Alumina Ring Refractory In Ceramics

High Density Cordierite Alumina Ring Refractory In Ceramics
High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics High Density Cordierite Alumina Ring Refractory In Ceramics
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Cordierite Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: Negotiable
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Cordierite Ceramics The Main Chemical Ingredient: MgO, Al2O3,SiO2
Thermal Shock Resistance: 250°C Bulk Density: 2.6 Gm/cc
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Cordierite alumina ring

,

High Density alumina ring

,

Cordierite refractory in ceramics

Product Description

High Density Cordierite Alumina Ring Refractory for Ceramic Applications
Key Attributes
Attribute Value
Material Cordierite Ceramics
Main Chemical Composition MgO, Al2O3, SiO2
Thermal Shock Resistance 250°C
Bulk Density 2.6 gm/cc
Customization OEM/ODM Accepted
Origin Wuxi, Jiangsu, China
Minimum Order Quantity 100 PCS
Packaging Carton
Product Description

Our high-density cordierite porous ceramics are engineered for superior filtration and separation applications. The material's interconnected pore structure with uniform size distribution ensures efficient gas and liquid filtration performance.

Technical Specifications
Property Test Condition Unit Value
Main Chemical Composition MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature °C 1400
Hardness HV 800
Bending Strength 20°C Kgf/cm2 900
Compressive Strength 20°C Kgf/cm2 3500
Thermal Expansion 1×10-6/°C ≤2.0
Thermal Conductivity 25°C-30°C W/m·k 1.3
Thermal Shock Resistance Tc °C 250
Dielectric Constant 1MHz, 25°C 6
Dielectric Strength ac-kV/mm 10
Volume Resistivity 20°C ohm-cm > 1012

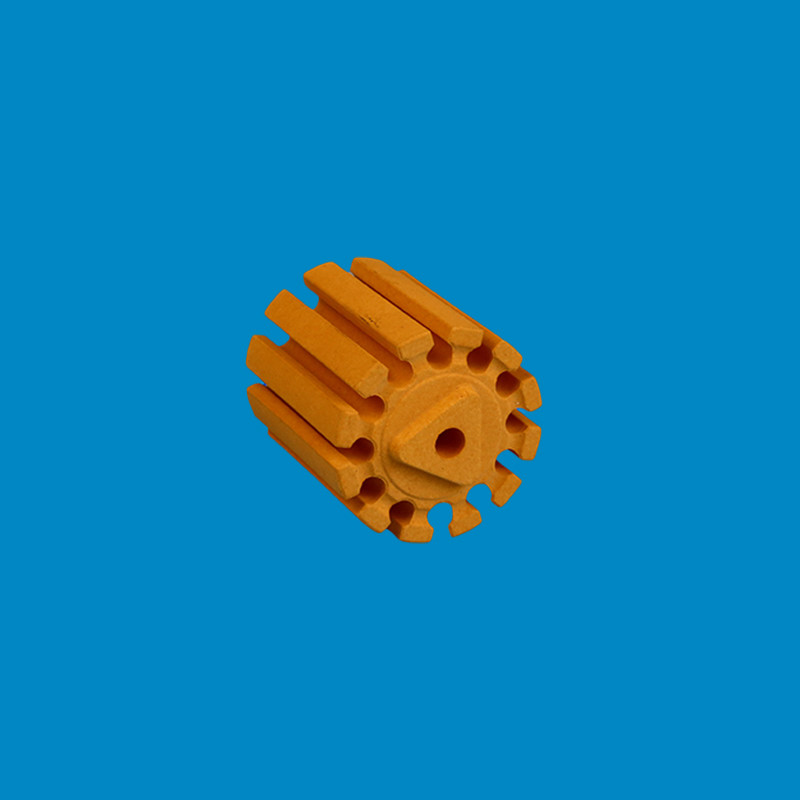

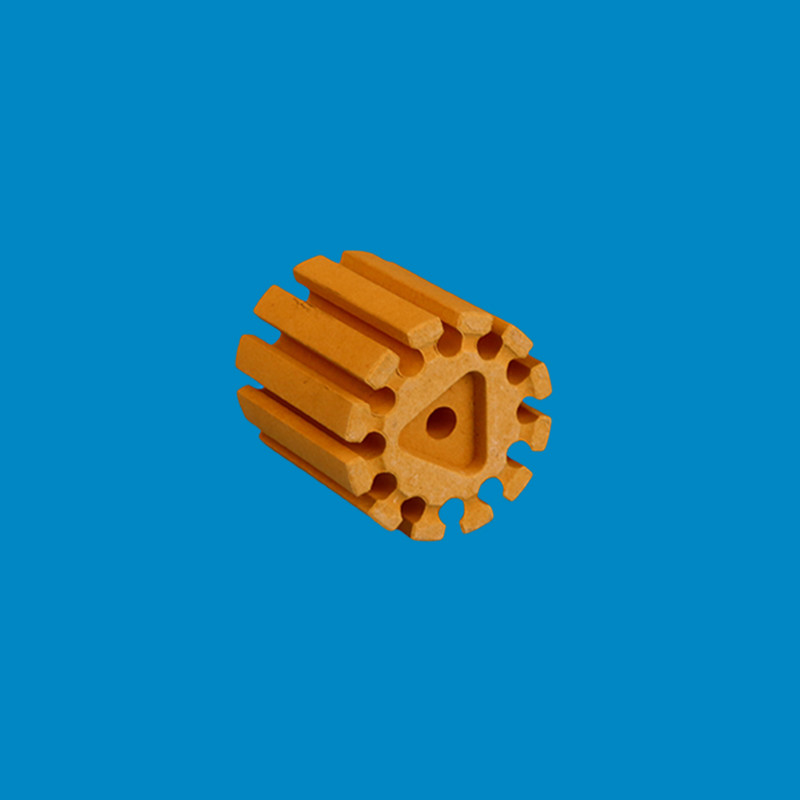

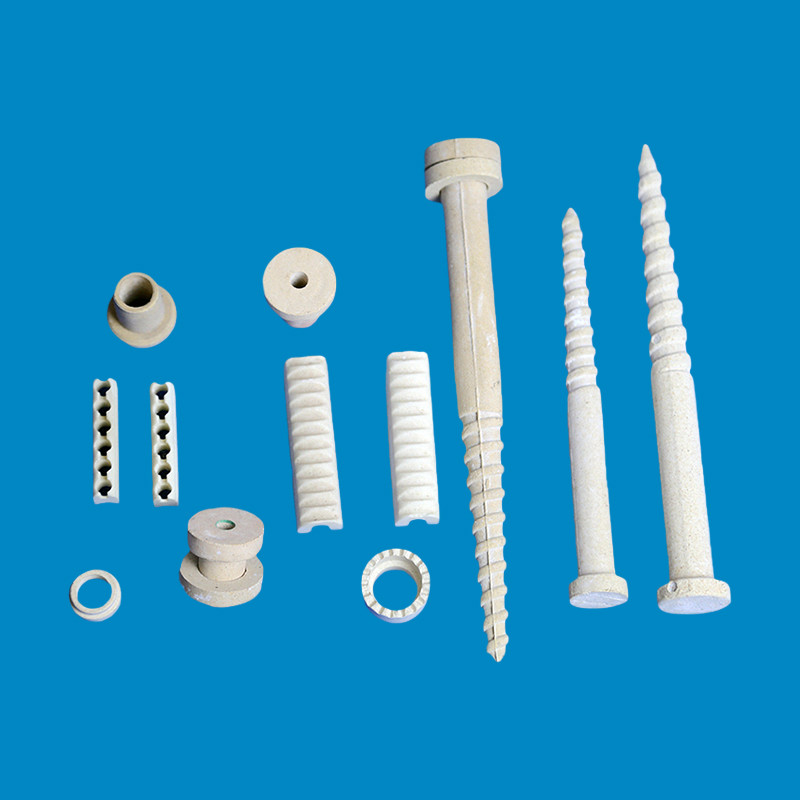

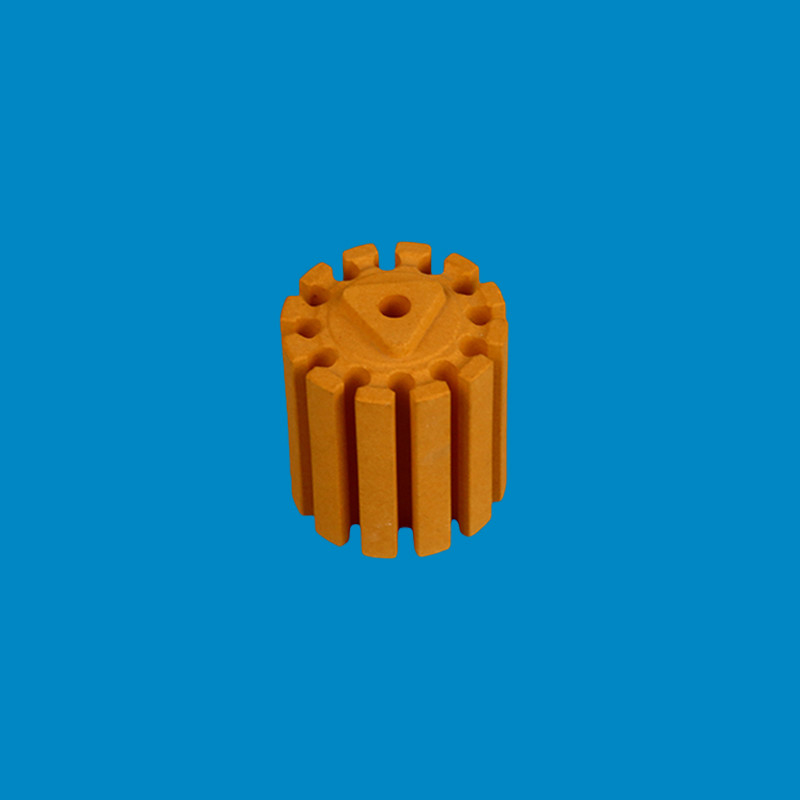

Product Images
High Density Cordierite Alumina Ring Refractory In Ceramics 0
High Density Cordierite Alumina Ring Refractory In Ceramics 1
High Density Cordierite Alumina Ring Refractory In Ceramics 2
High Density Cordierite Alumina Ring Refractory In Ceramics 3
High Density Cordierite Alumina Ring Refractory In Ceramics 4
High Density Cordierite Alumina Ring Refractory In Ceramics 5
High Density Cordierite Alumina Ring Refractory In Ceramics 6
High Density Cordierite Alumina Ring Refractory In Ceramics 7
High Density Cordierite Alumina Ring Refractory In Ceramics 8
High Density Cordierite Alumina Ring Refractory In Ceramics 9
High Density Cordierite Alumina Ring Refractory In Ceramics 10
