Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness

Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Cordierite Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: Negotiable
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Cordierite Ceramics Color: Yellow Or White
Bulk Density: 2.6gm/cc Hardness: 800 HV
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Mullite Cordierite Ceramic

,

High hardness Cordierite Ceramic

,

High hardness cordierite refractory

Product Description

Refractory Mullite Cordierite Ceramic Ring - Yellow/White - High Hardness
Product Attributes
Attribute Value
Material Cordierite Ceramics
Color Yellow or White
Bulk Density 2.6gm/cc
Hardness 800 HV
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description

Refractory cordierite ceramic rings offer exceptional high-temperature resistance and superior insulation properties. These mullite ceramic components are engineered for demanding industrial applications requiring thermal stability and durability.

Key Features & Advantages
  • High hardness (800 HV) - Provides excellent durability and wear resistance
  • Exceptional heat resistance - Stable performance up to 1400℃
  • Superior wear resistance - Ideal for industrial wear parts
  • High electrical resistivity - Excellent insulating properties
  • Corrosion resistant - Withstands water and most chemical solutions
Technical Specifications
Item Test Condition Unit & Symbol Value
Main Chemical Composition MgO, Al₂O₃, SiO₂
Bulk Density gm/cc 2.6
Maximum Use Temperature ℃ 1400
Hardness HV 800
Bending Strength 20℃ Kgf/cm² 900
Compressive Strength 20℃ Kgf/cm² 3500
Thermal Expansion 1×10⁻⁶/℃ ≤2.0
Thermal Conductivity 25℃-30℃ W/m·k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectric Constant 1MHz, 25℃ 6
Dielectric Strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 10¹²

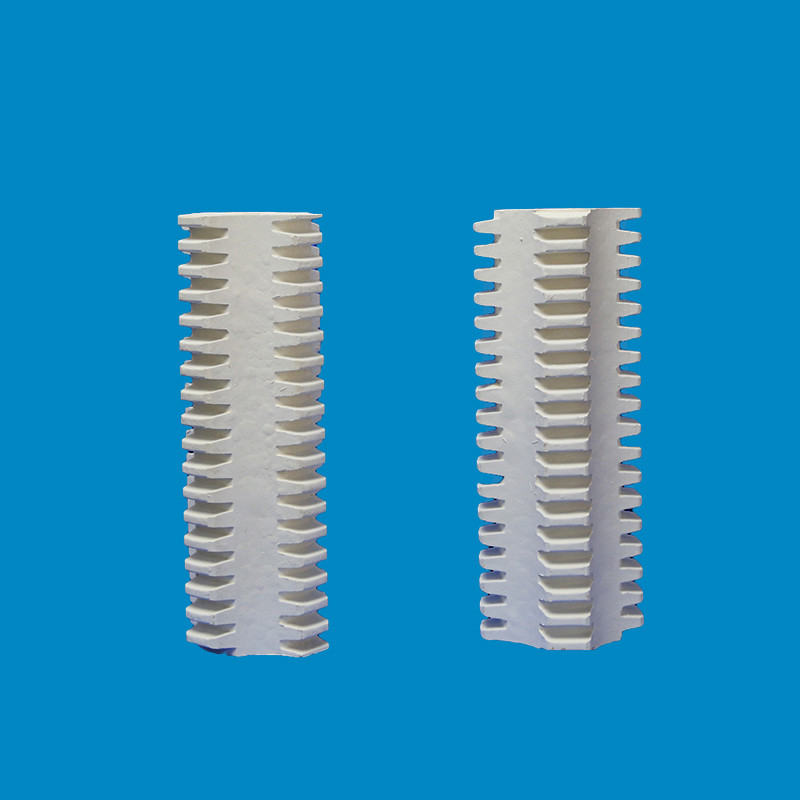

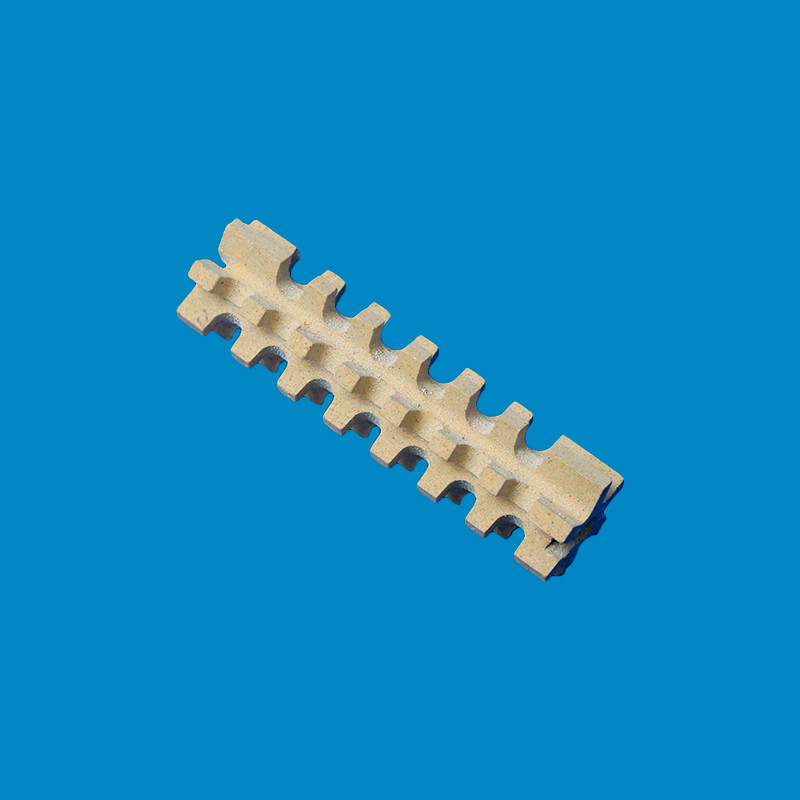

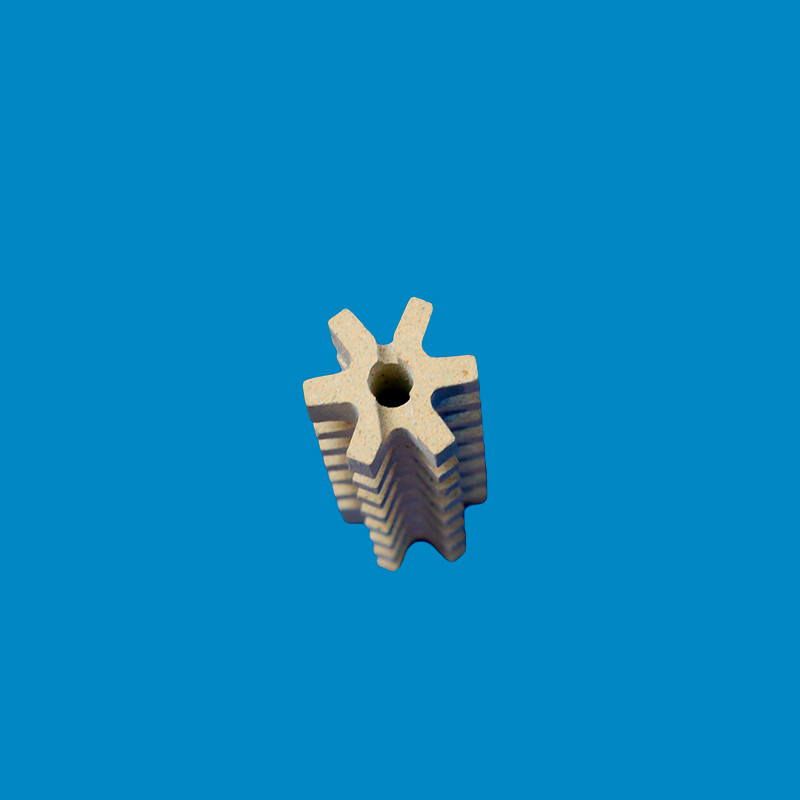

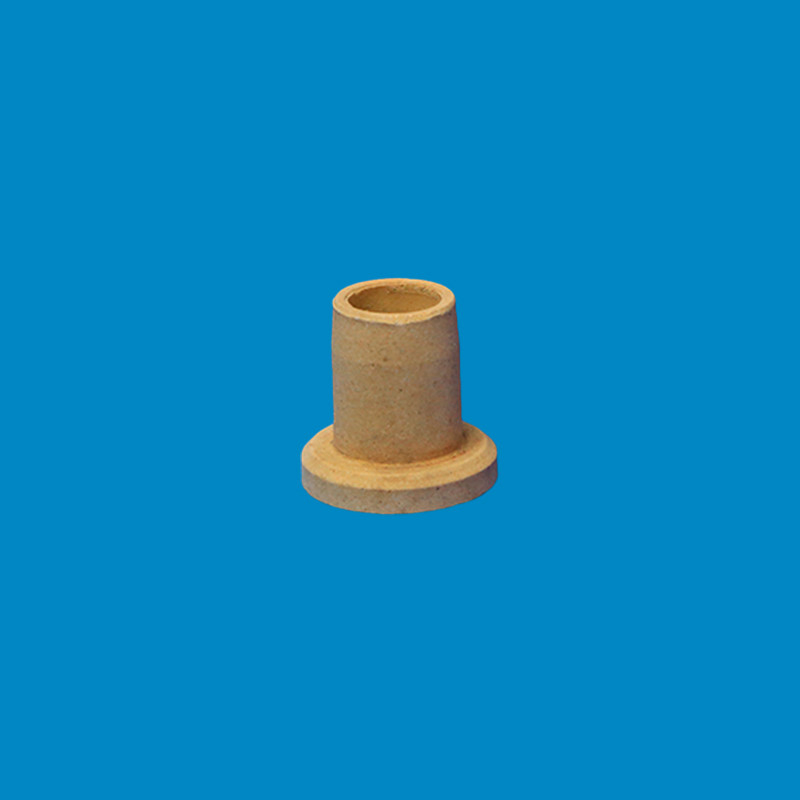

Product Images
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 0
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 1
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 2
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 3
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 4
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 5
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 6
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 7
Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness 8
