Name: Electronics Alumina Based Ceramics Insulator Heat Resistant Customised
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	99% Alumina Ceramics	Color:	White
Density:	3.85g/cm³	Type:	Custom
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	Electronics Alumina Based Ceramics , Heat Resistant Alumina Based Ceramics , Heat Resistant alumina insulator

Product Description

Electronics Alumina Based Ceramics Insulator Heat Resistant Customised

Key Specifications

Material	99% Alumina Ceramics
Color	White
Density	3.85g/cm³
Type	Custom
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Overview

Our 99% alumina ceramic materials represent advanced engineering ceramics with exceptional performance characteristics, specifically engineered for demanding industrial applications. These high-performance ceramics are ideal for manufacturing refractory furnace tubes and specialized wear-resistant components including ceramic bearings, seals, and water valves.

Technical Properties Comparison

Material	Unit	A95% Alumina	A97% Alumina	A99% Alumina	A99.7% Alumina
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

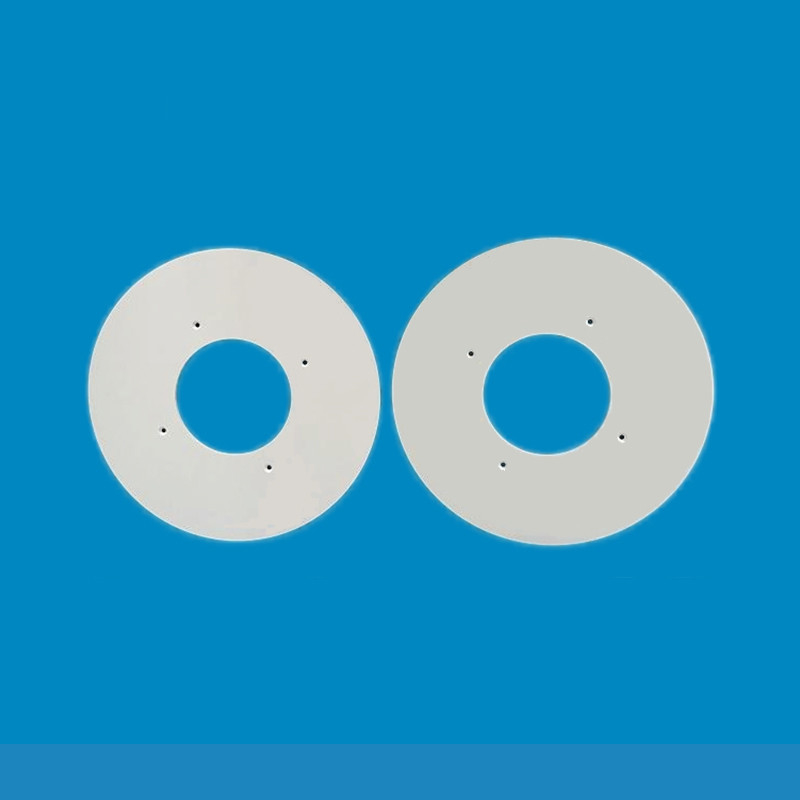

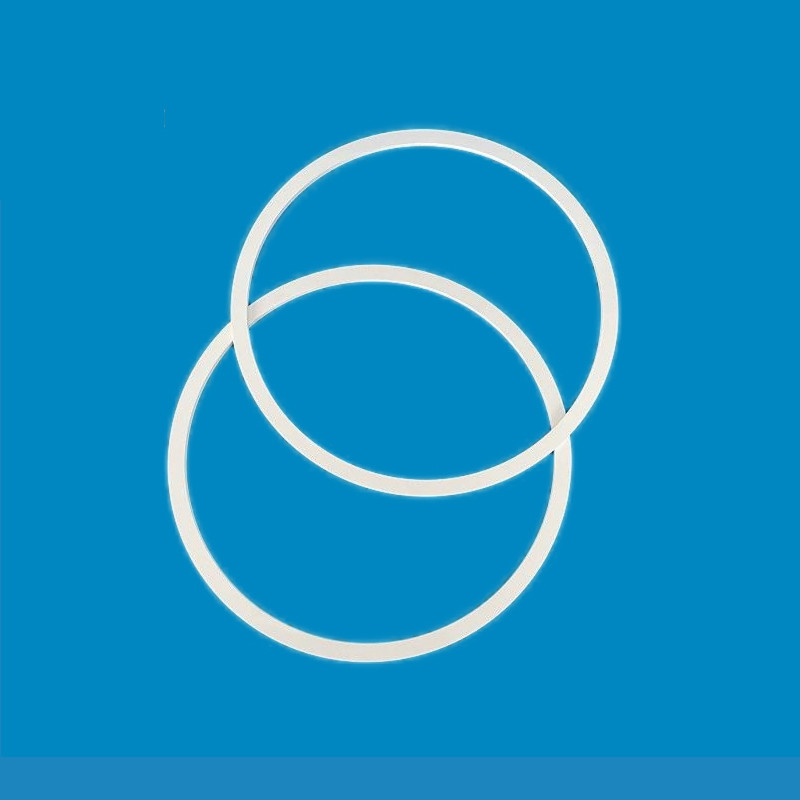

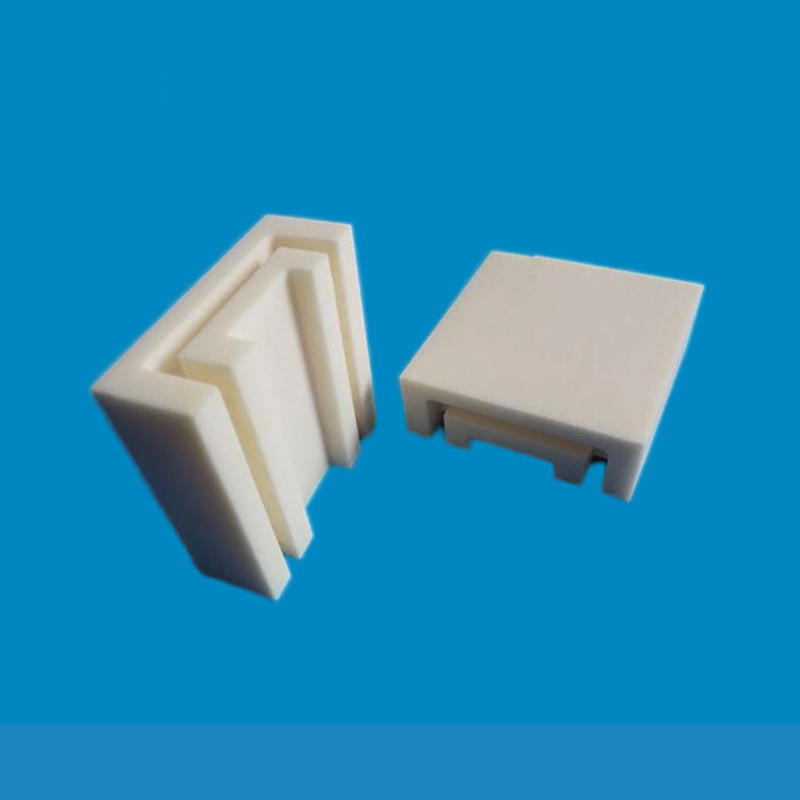

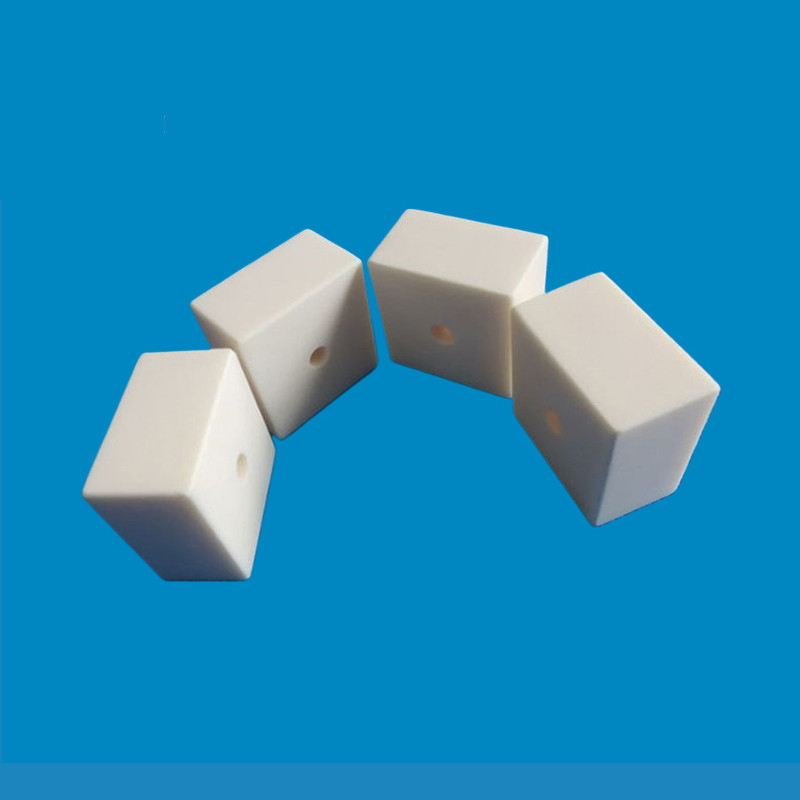

Product Gallery

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	99% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Supply Ability:	5000 PCS/WEEK
