Home > Products> Alumina Based Ceramics> High Purity 96% Alumina Ceramic Components Producers For Crucible

High Purity 96% Alumina Ceramic Components Producers For Crucible

High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: 99% Alumina Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: 99% Alumina Ceramics Color: White
Density: 3.85g/cm³ Type: Custom
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

96 alumina ceramic Components

,

crucible 96 alumina ceramic

,

high purity alumina producers

Product Description

High Purity 96% Alumina Ceramic Components for Crucible
Product Specifications
Attribute Value
Material 99% Alumina Ceramics
Color White
Density 3.85g/cm³
Type Custom
OEM, ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Our 99% alumina ceramic components represent one of the most advanced engineering ceramics available, offering exceptional performance in high-temperature applications. With a density of 3.85g/cm³, these precision components are ideal for manufacturing high-temperature crucibles, refractory furnace pipes, and specialized wear-resistant materials including ceramic bearings, seals, and water valves.

Material Properties Comparison
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

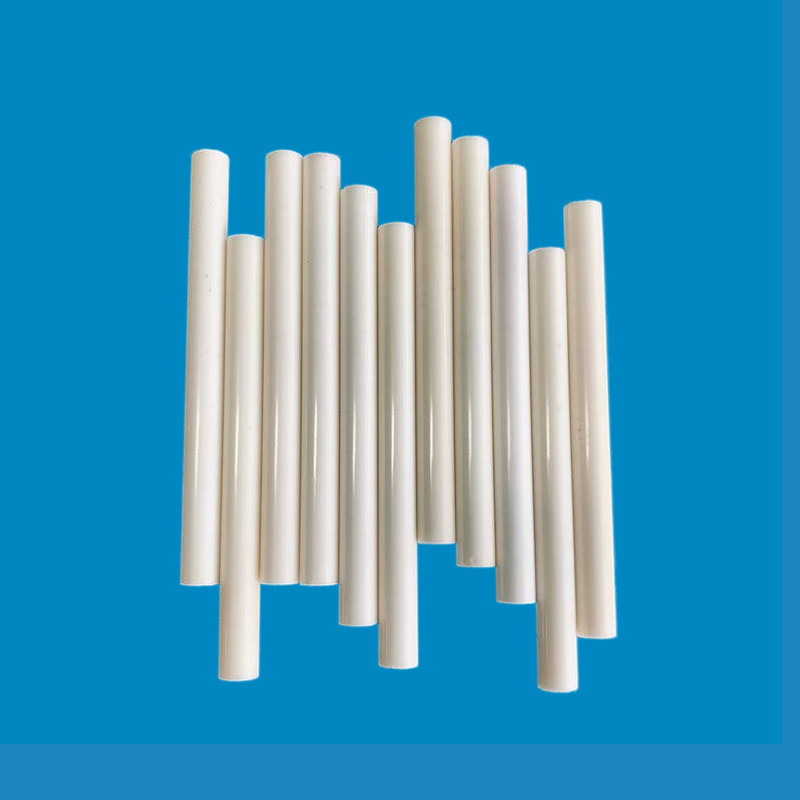

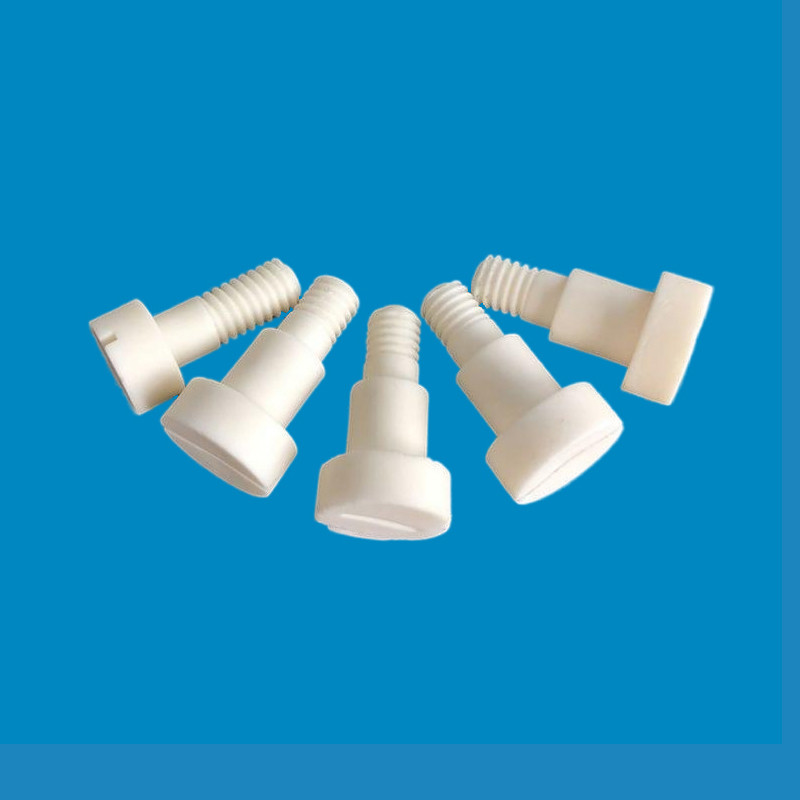

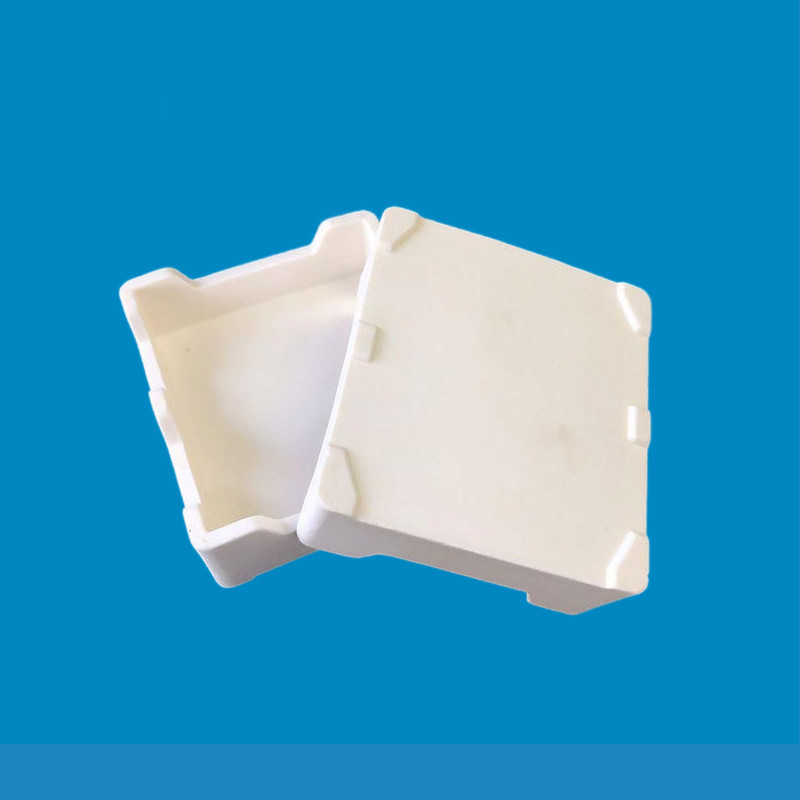

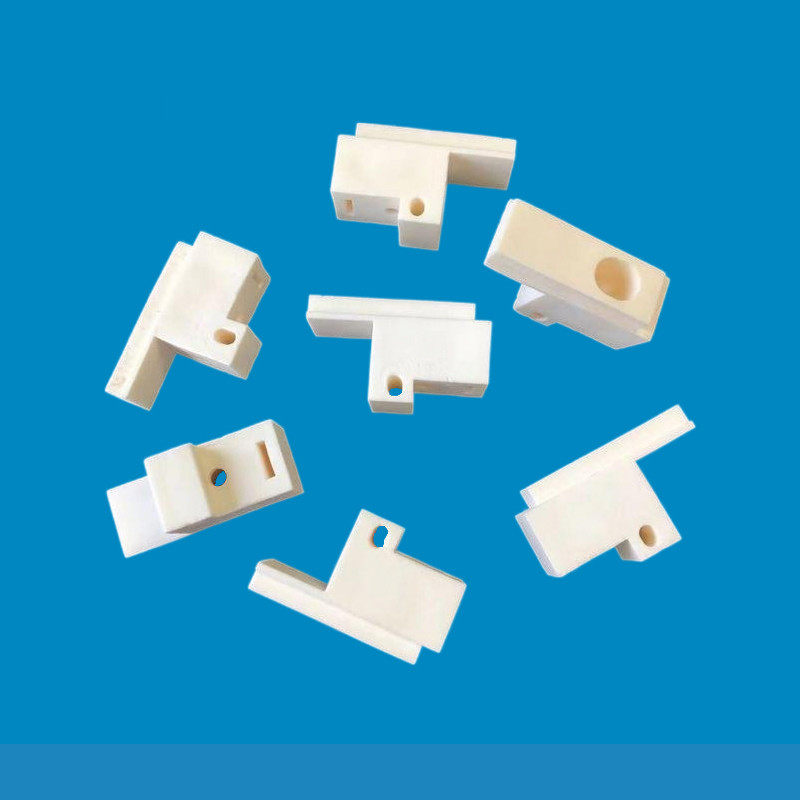

Product Images
High Purity 96% Alumina Ceramic Components Producers For Crucible 0
High Purity 96% Alumina Ceramic Components Producers For Crucible 1
High Purity 96% Alumina Ceramic Components Producers For Crucible 2
High density 3.85g/cm³ alumina ceramic products
High Purity 96% Alumina Ceramic Components Producers For Crucible 4
High Purity 96% Alumina Ceramic Components Producers For Crucible 5
High Purity 96% Alumina Ceramic Components Producers For Crucible 6
High Purity 96% Alumina Ceramic Components Producers For Crucible 7
High Purity 96% Alumina Ceramic Components Producers For Crucible 8
High Purity 96% Alumina Ceramic Components Producers For Crucible 9
High Purity 96% Alumina Ceramic Components Producers For Crucible 10
High Purity 96% Alumina Ceramic Components Producers For Crucible 11
High Purity 96% Alumina Ceramic Components Producers For Crucible 12
High Purity 96% Alumina Ceramic Components Producers For Crucible 13
High Purity 96% Alumina Ceramic Components Producers For Crucible 14
High Purity 96% Alumina Ceramic Components Producers For Crucible 15
High Purity 96% Alumina Ceramic Components Producers For Crucible 16
