ODM Deformation Alumina Based Ceramics Components Thermal Conductivity

Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: 99% Alumina Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: 99% Alumina Ceramics Density: 3.85g/cm³
Vickers Hardulus: 1900 HV1/2 Shape: Customizable
OEM,ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

ODM Alumina Based Ceramics

,

Deformation Alumina Based Ceramics

,

ODM alumina ceramic components


Product Description

ODM Deformation Alumina Based Ceramics Components Thermal Conductivity
Product Specifications
Material 99% Alumina Ceramics
Density 3.85g/cm³
Vickers Hardness 1900 HV1/2
Shape Customizable
OEM/ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

High purity 99% alumina ceramics provide exceptional structural stability and resistance to deformation. These advanced ceramic materials offer excellent insulation properties, high mechanical strength, superior thermal conductivity, and stable performance across demanding industrial applications.

Key Advantages
  • Exceptional hardness for superior wear resistance
  • Outstanding heat resistance for high-temperature applications
  • Cost-effective solution with excellent performance-to-price ratio
  • Long operational lifespan reducing replacement frequency
Material Properties Comparison
Property Unit 95% Alumina 97% Alumina 99% Alumina 99.7% Alumina
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Conductivity W/Mk 23 24 27 27
Maximum Use Temperature 1600 1600 1650 1650

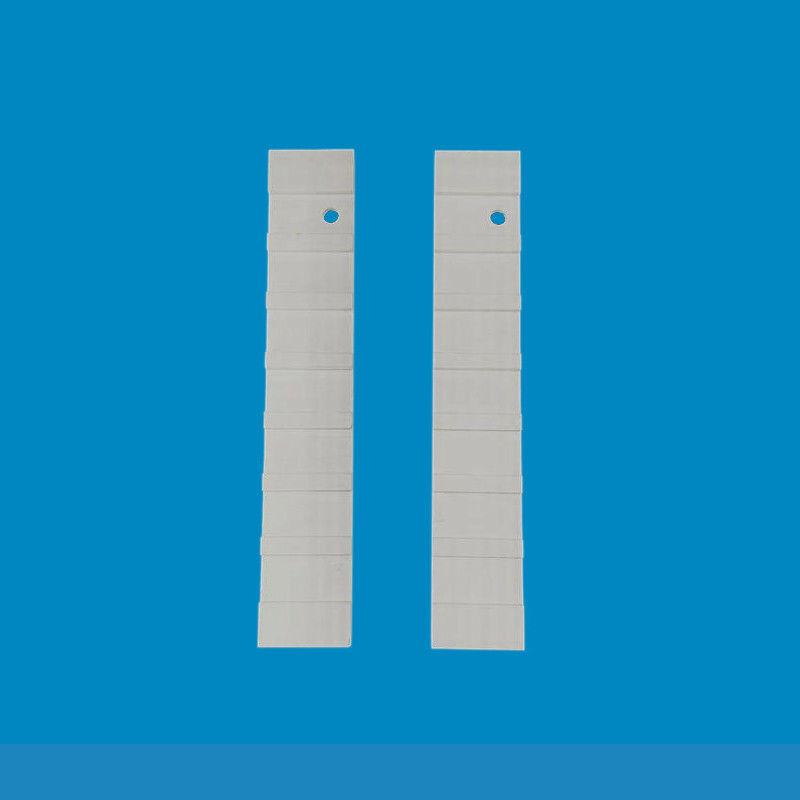

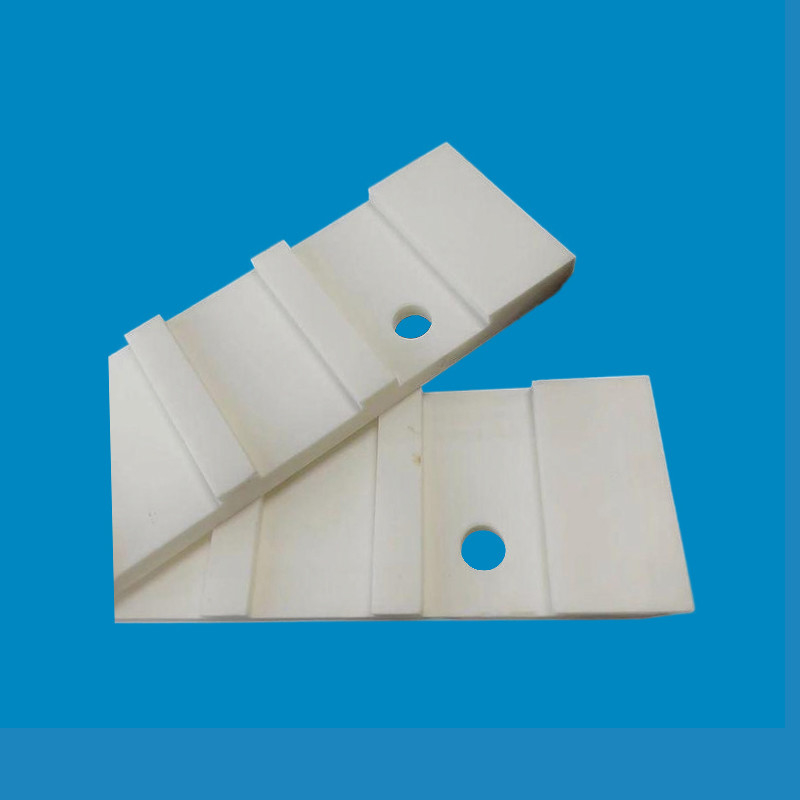

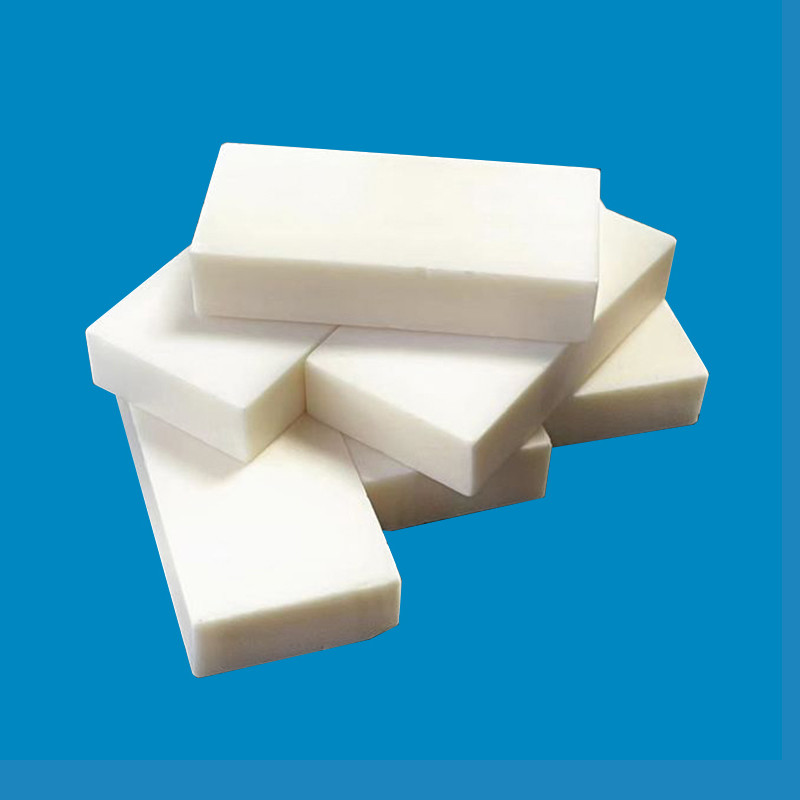

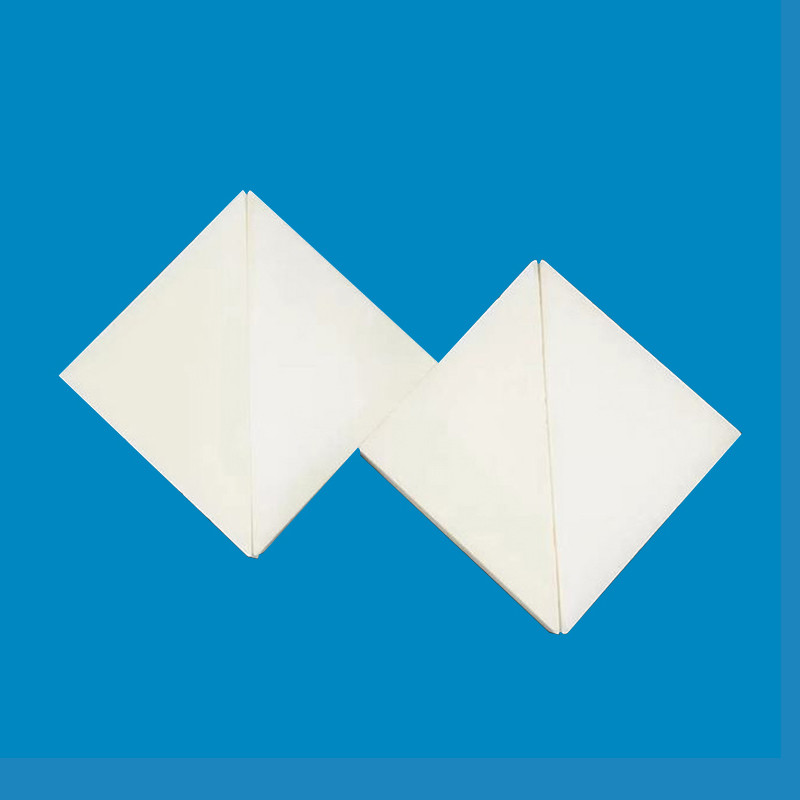

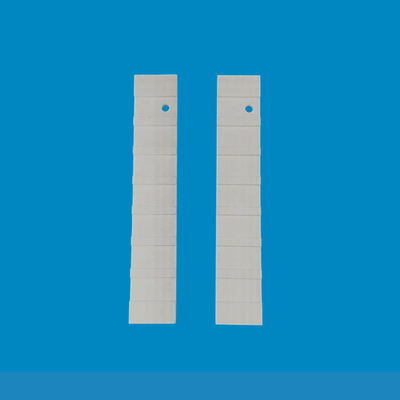

Product Gallery
