Name: Industrial Insulated Aluminium Oxide Ceramic Alumina Tubing Products
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	99% Alumina Ceramics	Density:	3.85g/cm³
Color:	White Or Yellow	Shape:	Customizable
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	aluminium oxide ceramic Tubing , Insulated aluminium oxide ceramic , Insulated alumina ceramic tubing

Product Description

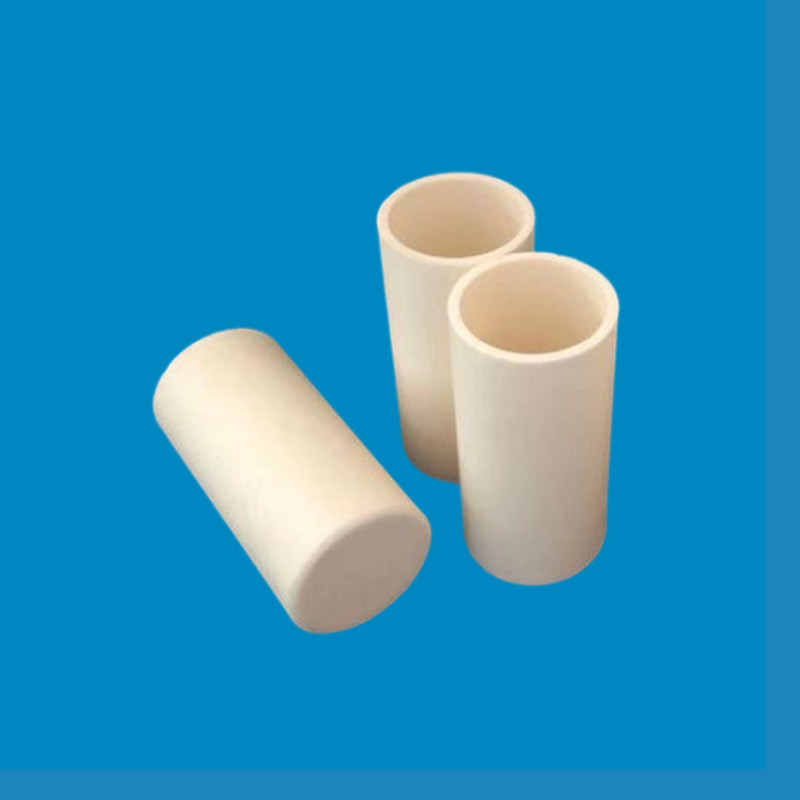

Industrial Insulated Aluminium Oxide Ceramic Alumina Tubing Products

Product Specifications

Attribute	Value
Material	99% Alumina Ceramics
Density	3.85g/cm³
Color	White or yellow
Shape	Customizable
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramics (Al₂O₃) are widely used industrial ceramics available in high-purity (99% Al₂O₃ content or higher) and standard formulations.

Key Advantages

Smooth surface with excellent flatness
Superior structural stability and deformation resistance
Outstanding corrosion and chemical resistance
Maintains stable physical and chemical properties in high-temperature environments

Technical Specifications Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric Constant	εr	10	10	10	10

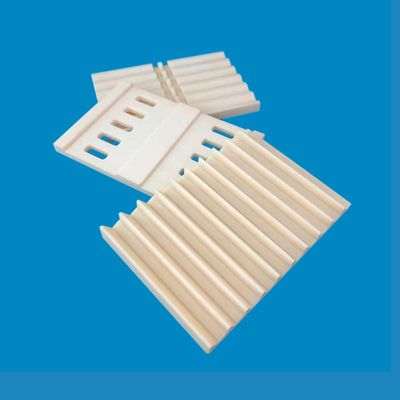

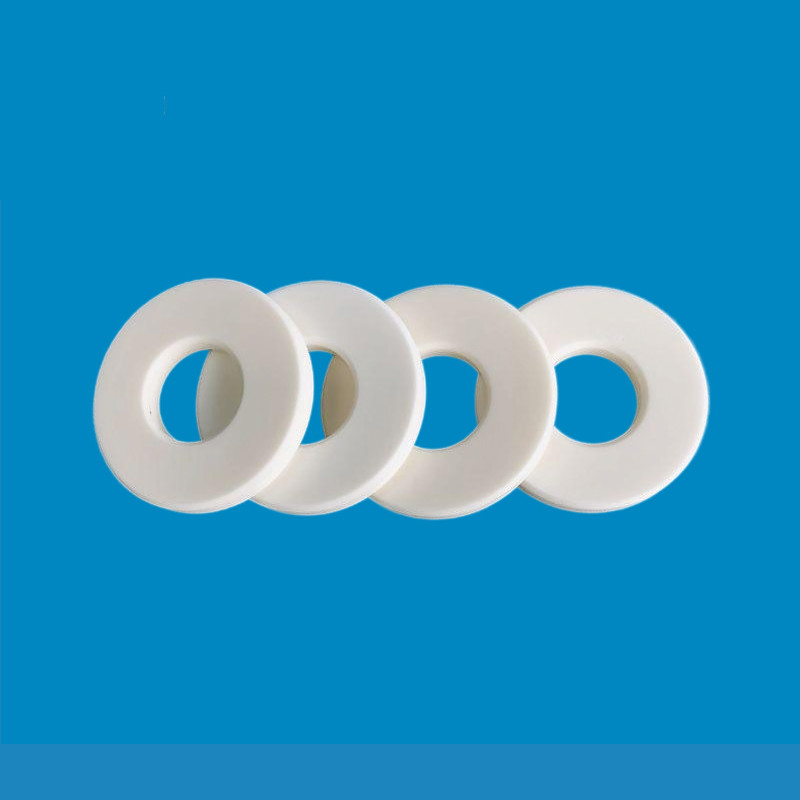

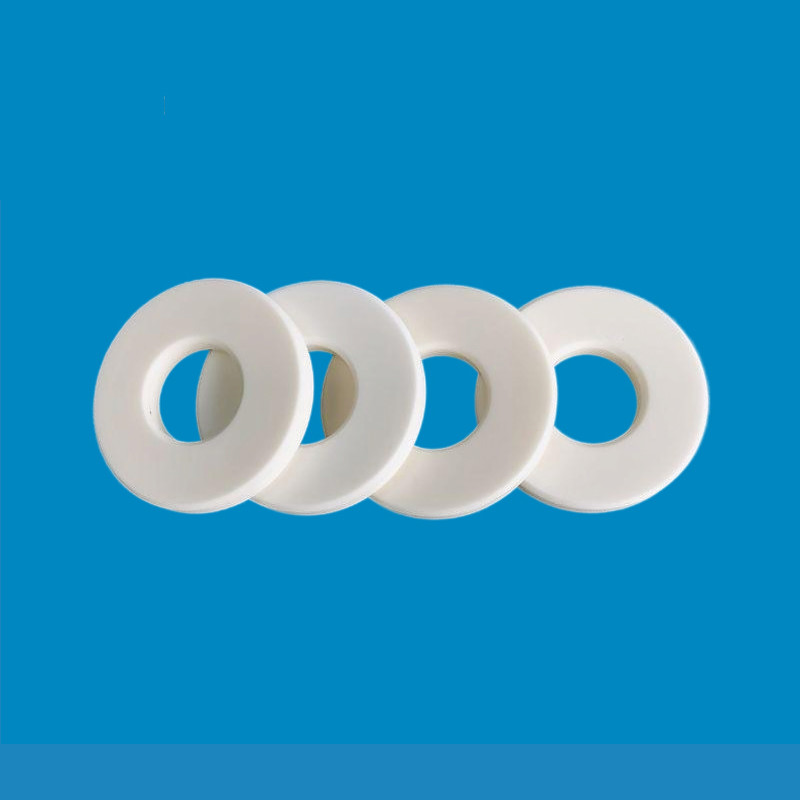

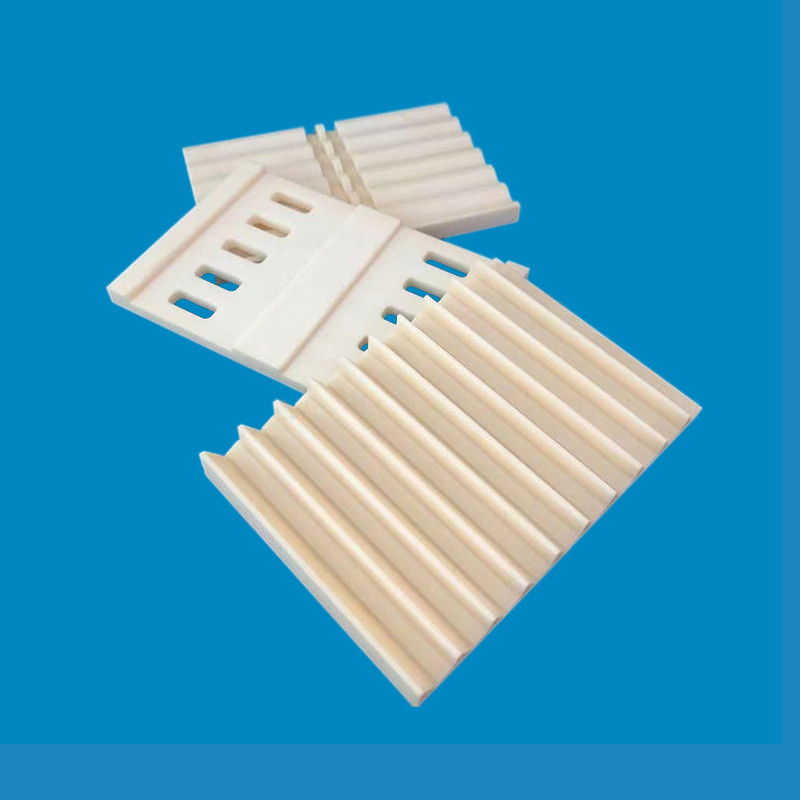

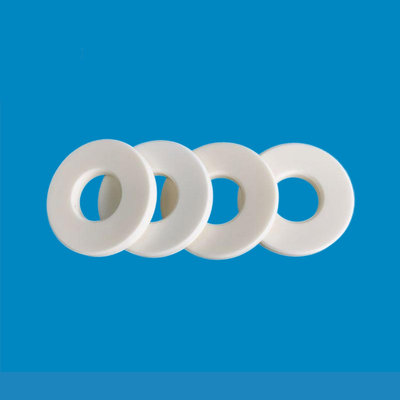

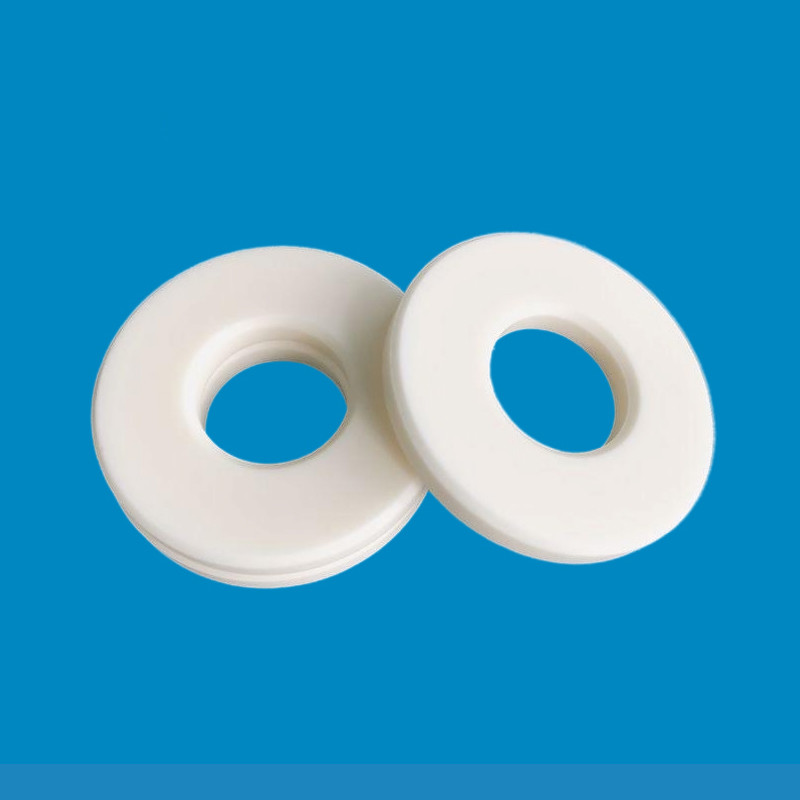

Product Gallery

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	99% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Supply Ability:	5000 PCS/WEEK
