Name: Machinable Al2 O3 Oxide Alumina Based Ceramics Bushing Material Heat Resistance
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 99% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	99% Alumina Ceramics	Density:	3.85g/cm³
Impact Resistance:	5 MPam1/2	Color:	White Or Yellow
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	Alumina Based Ceramics Bushing , Machinable Alumina Based Ceramics , Machinable alumina bushing

Product Description

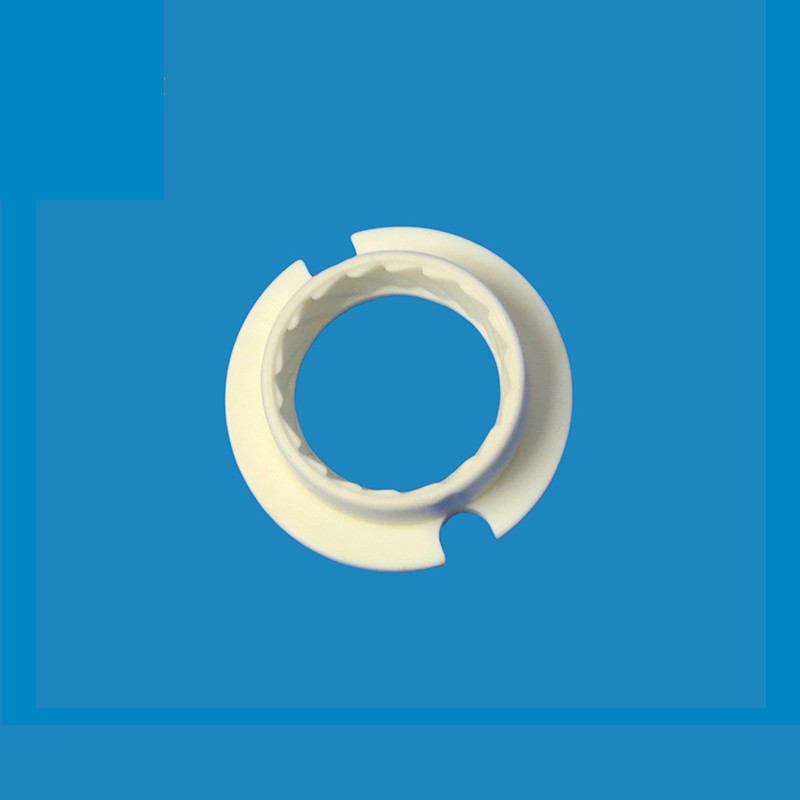

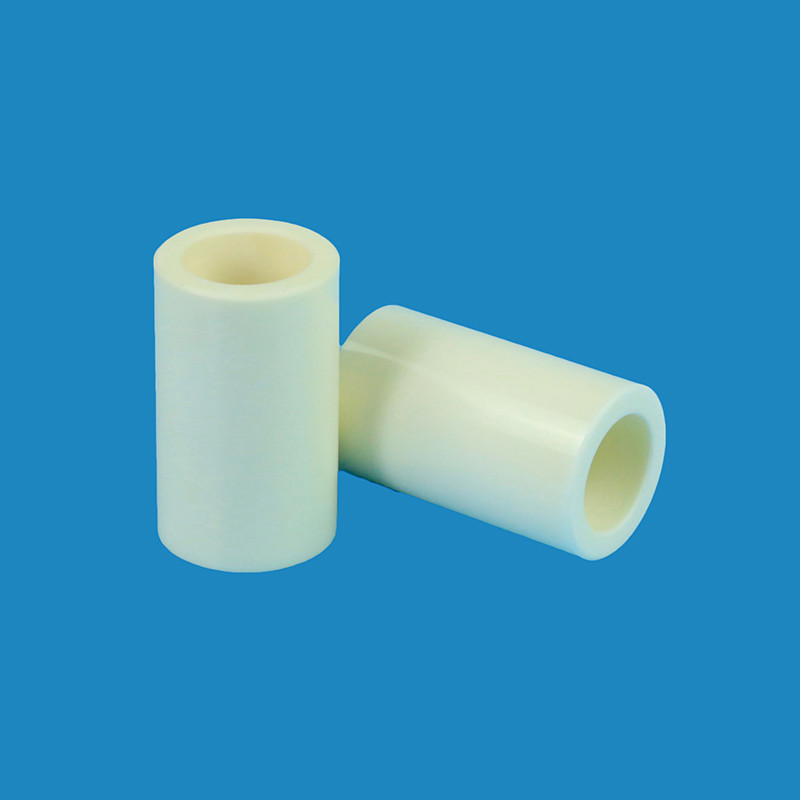

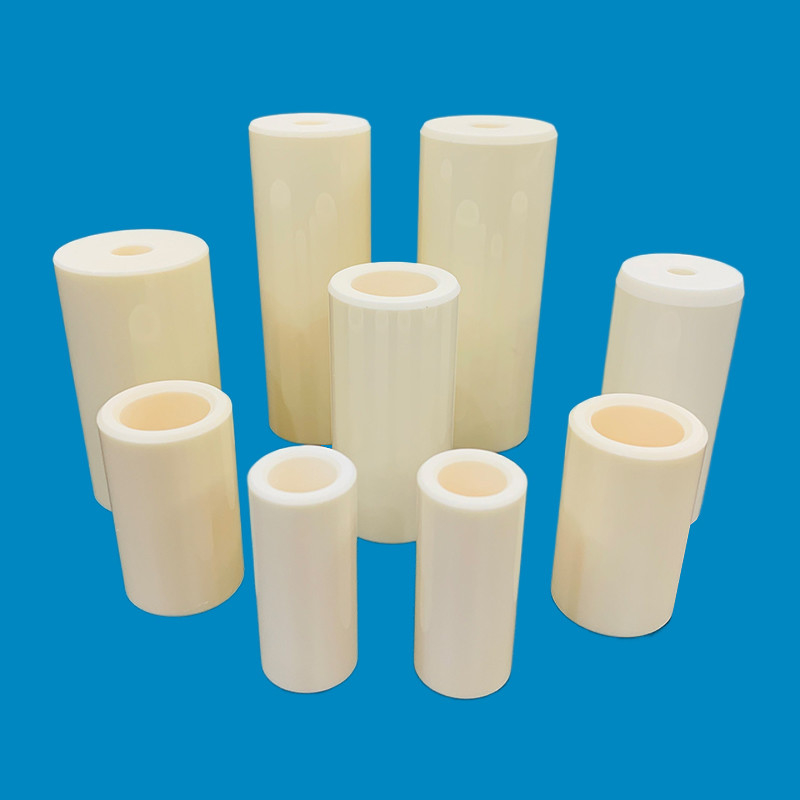

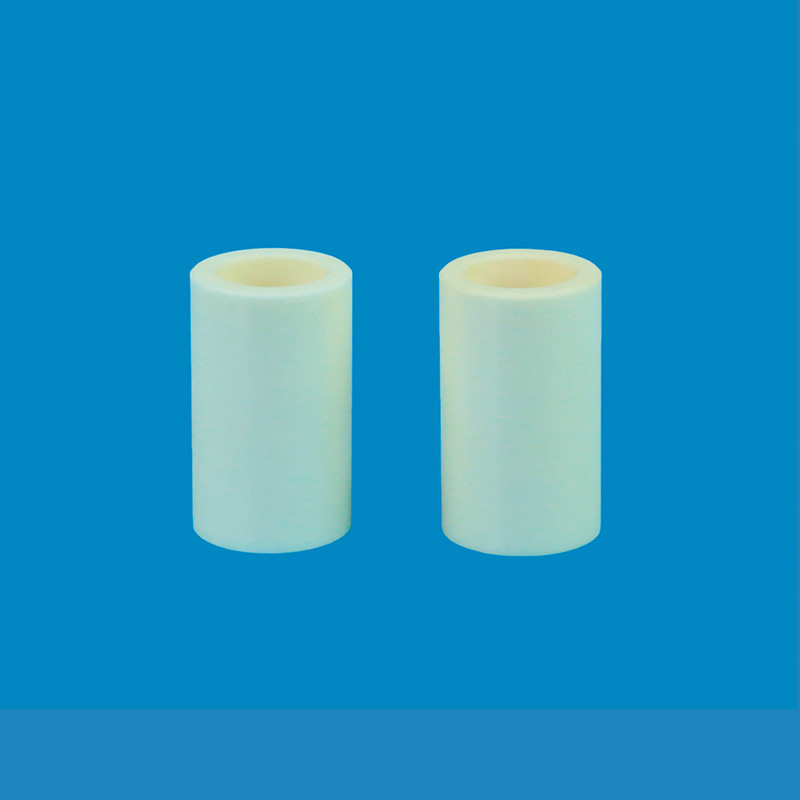

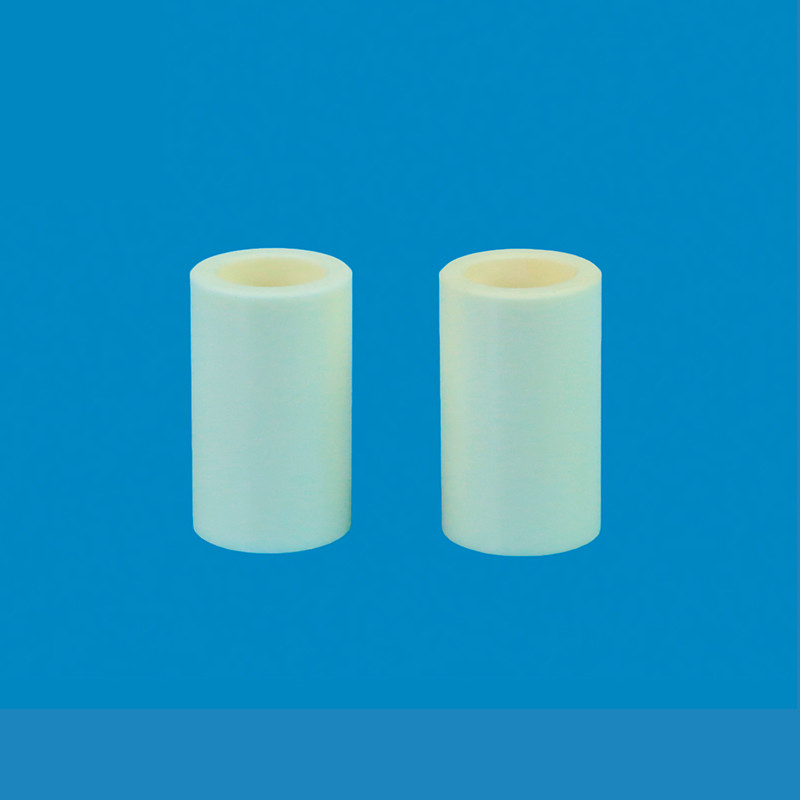

Machinable Al₂O₃ Oxide Alumina Based Ceramics Bushing Material with Heat Resistance

Key Attributes

Material	99% Alumina Ceramics
Density	3.85g/cm³
Impact Resistance	5 MPam^1/2
Color	White or yellow
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 PCS
Package	Carton

Product Overview

High-purity 99% alumina ceramic material with exceptional heat resistance up to 1650°C, ideal for demanding industrial applications requiring superior insulation and thermal stability.

Material Advantages

Exceptional hardness and mechanical strength
Superior high temperature resistance (1650°C)
Excellent electrical insulation properties
Outstanding wear and corrosion resistance
High dimensional stability under thermal stress

Customization Services

Multiple specifications available for customization
Custom color options to meet specific requirements
Accommodation of custom drawings and designs
Competitive pricing with excellent cost-performance ratio

Technical Specifications

Material	Unit	A95% Alumina	A97% Alumina	A99% Alumina	A99.7% Alumina
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam^1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10^-6K^-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥10¹⁴	≥10¹⁴	≥10¹⁴	≥10¹⁴
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

Product Gallery

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	99% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Supply Ability:	5000 PCS/WEEK
