Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom

Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: 99% Alumina Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: 99% Alumina Ceramics Color: White
Density: 3.85g/cm³ Type: Custom
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

alumina ceramic parts tabular

,

alumina ceramic parts white tabular

,

alumina 99.5 tabular

Product Description

Engineering 99.5% Alumina Ceramic Parts for Electrical Insulation
Product Specifications
Attribute Value
Material 99% Alumina Ceramics
Color White
Density 3.85g/cm³
Type Custom
OEM/ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Our high-density 99% alumina ceramic components offer exceptional thermal stability and electrical insulation properties. With a density of 3.85g/cm³, these custom-engineered parts are specifically designed for demanding high-temperature applications where superior wear resistance and electrical insulation are required.

Key Features & Advantages
  • High hardness: Exceptional surface durability for demanding applications
  • High heat resistance: Excellent thermal stability for extreme temperature environments (up to 1650°C)
  • Superior wear resistance: Ideal choice for alumina wear parts and components
  • High electrical resistivity: Excellent insulating properties for electrical applications (≥10¹⁴Ω at 20°C)
  • Exceptional corrosion resistance: Insoluble in water and resistant to strong acids and alkaline solutions
Material Properties Comparison
Our 99% alumina ceramic offers superior performance compared to lower alumina content materials:
Material Unit A95% Alumina A97% Alumina A99% Alumina A99.7% Alumina
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric Constant εr 10 10 10 10

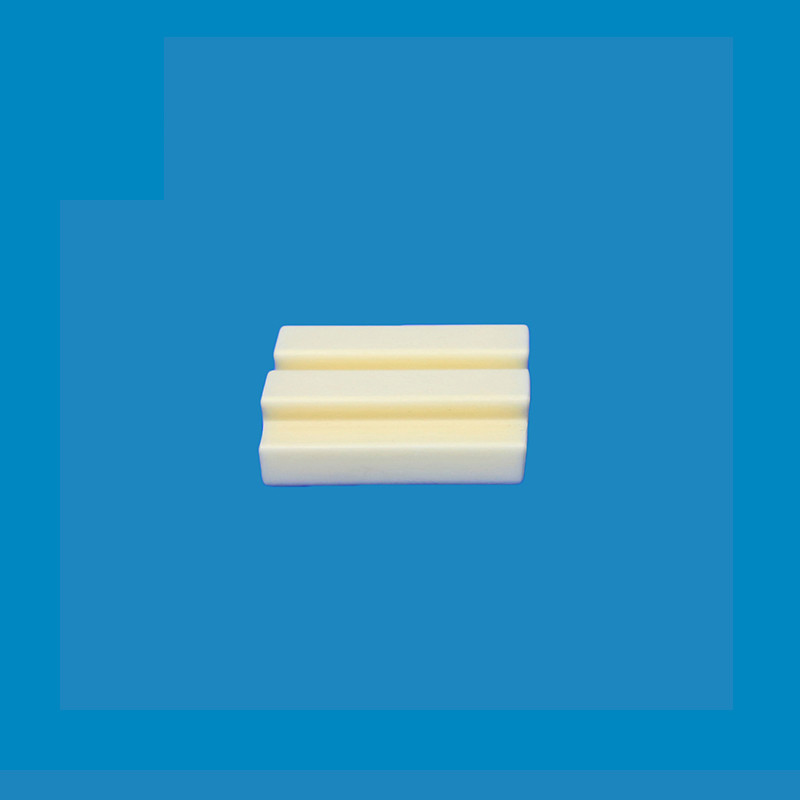

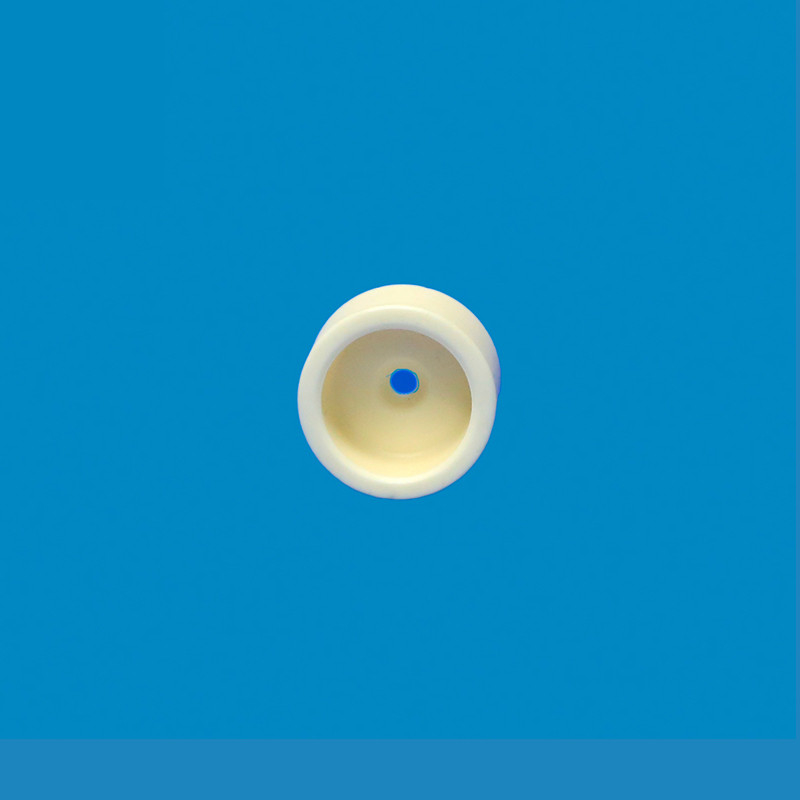

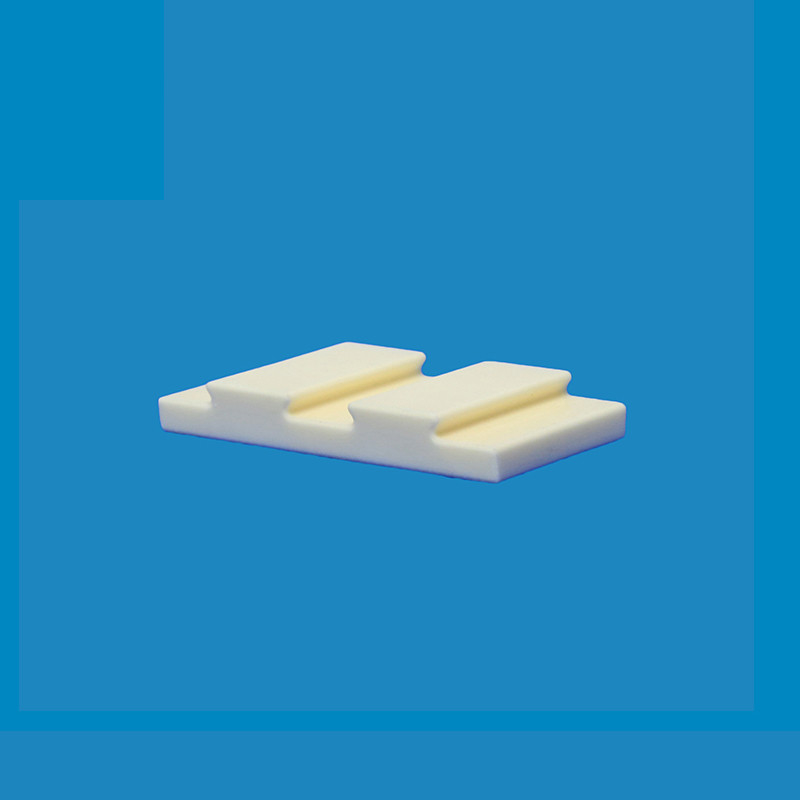

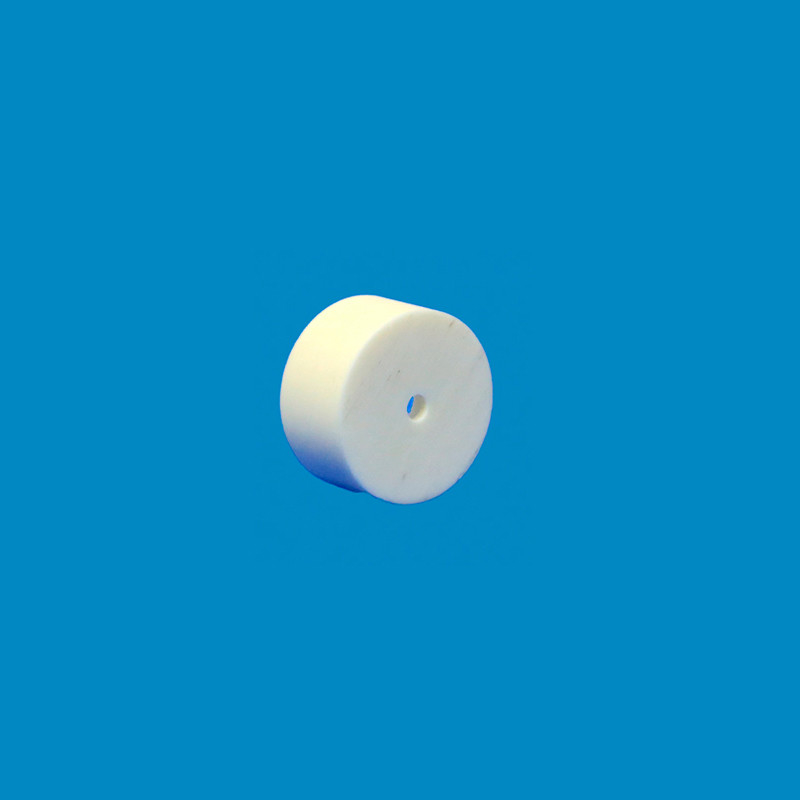

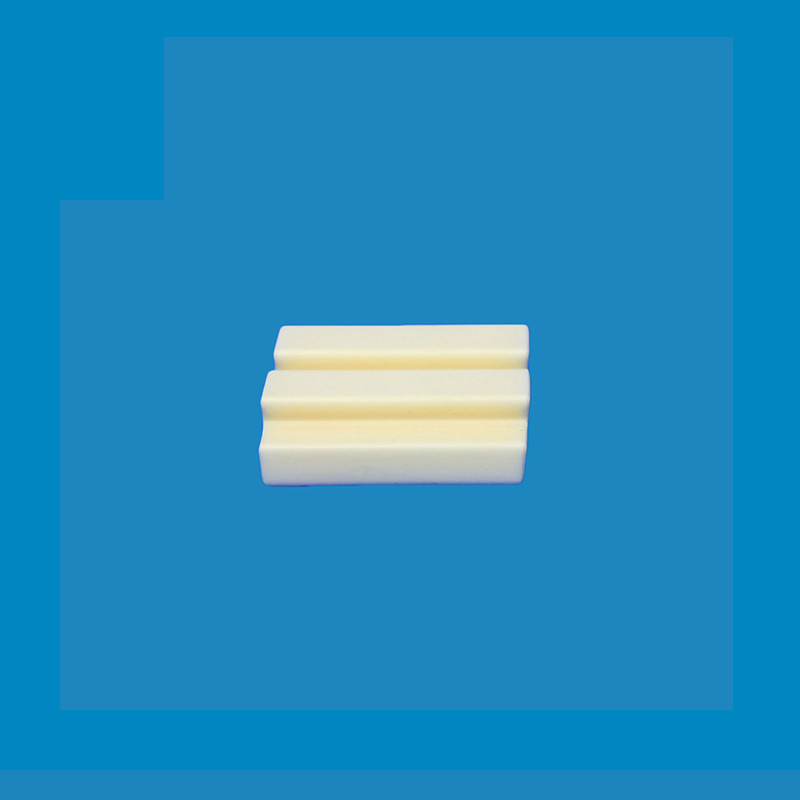

Product Images
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 0
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 1
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 2
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 3
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 4
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 5
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 6
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 7
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 8
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 9
Engineering 99.5% Alumina Ceramic Parts Electrical Insulation White Tabular Custom 10
