Name: 95% Recrystallised Alumina Insulator Ceramics For Semiconductor Components
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	95% Alumina Ceramics	Color:	White
Density:	3.6g/cm³	Compressive Strength:	3300 Mpa
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	95% alumina insulator , Semiconductor alumina insulator , recrystallised alumina Components

Product Description

95% Recrystallised Alumina Insulator Ceramics For Semiconductor Components

Key Specifications

Material	95% Alumina Ceramics
Color	White
Density	3.6g/cm³
Compressive Strength	3300 Mpa
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Our 95% Alumina Ceramics are engineered for durability and exceptional performance in electronic and semiconductor applications. These components maintain structural integrity in extreme conditions, making them ideal for demanding industrial environments.

Key Features

Exceptional heat resistance withstanding temperatures exceeding 1600°C
High compressive strength of 3300 Mpa for reliable performance
Excellent electrical insulation properties
Superior thermal shock resistance
Custom designs available through our OEM/ODM services

Material Properties Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

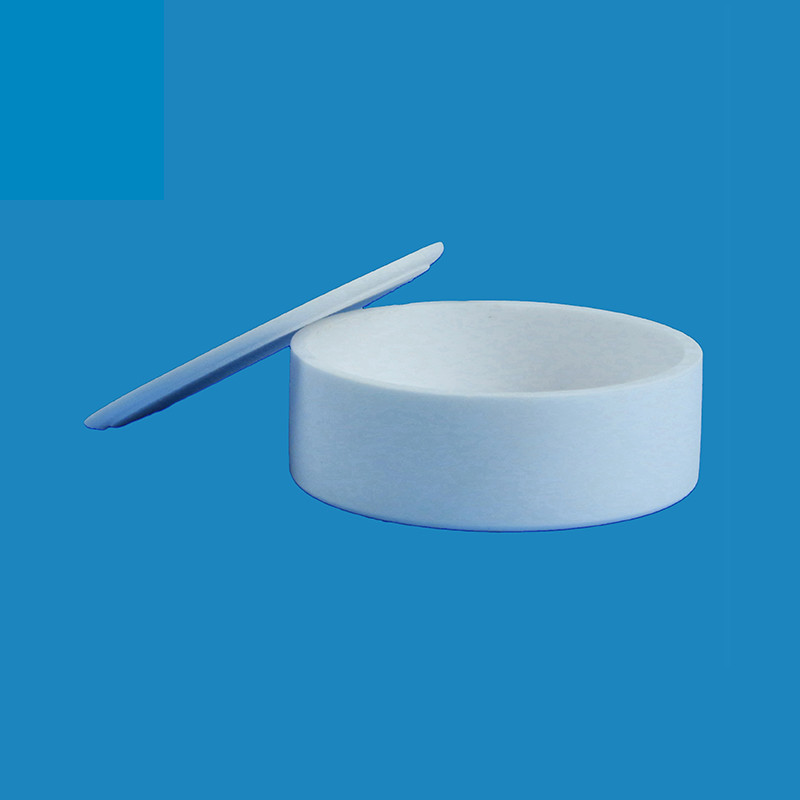

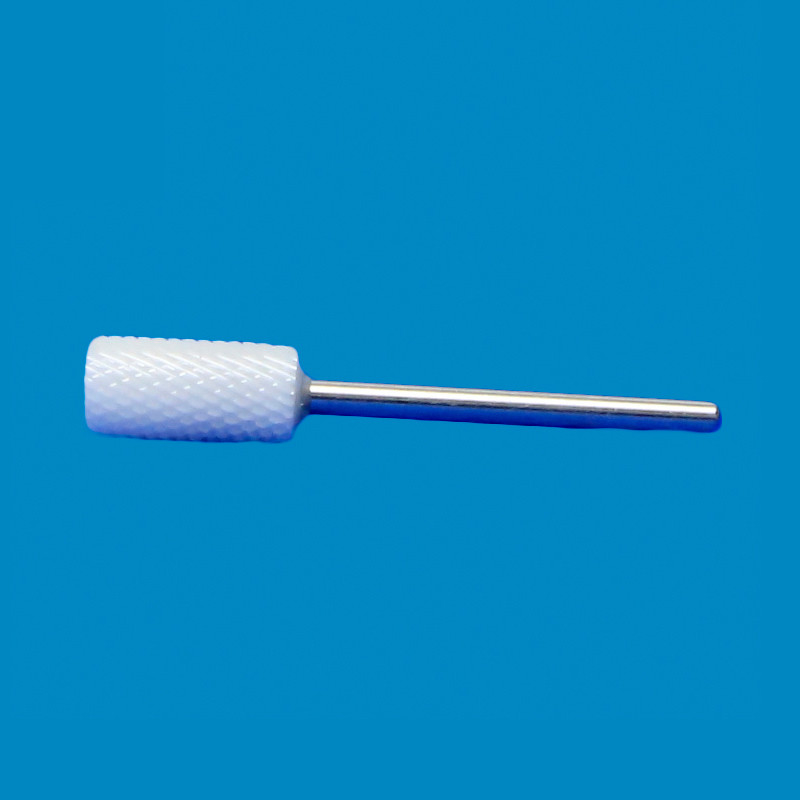

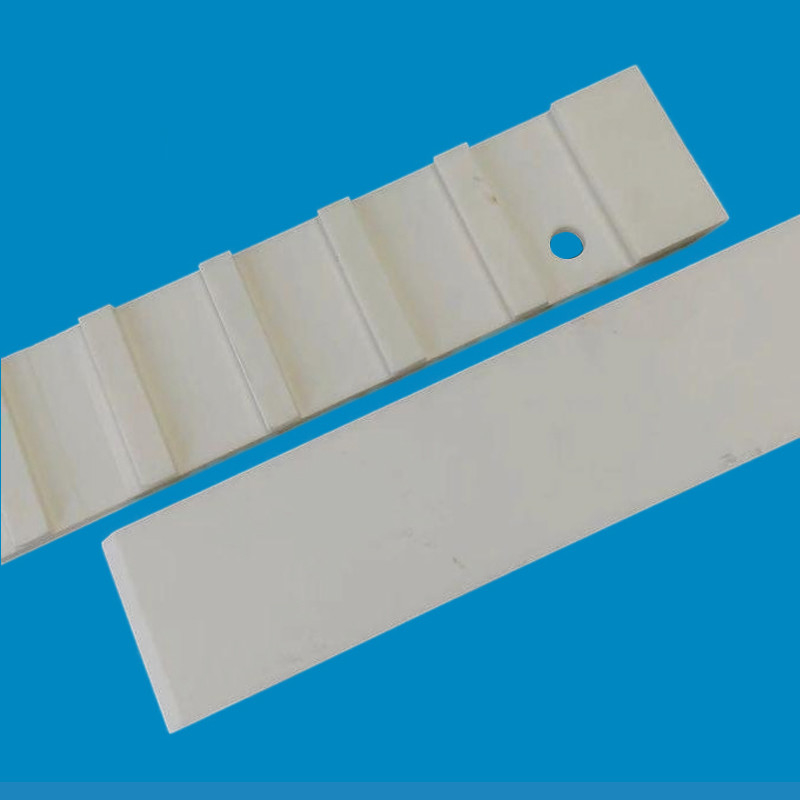

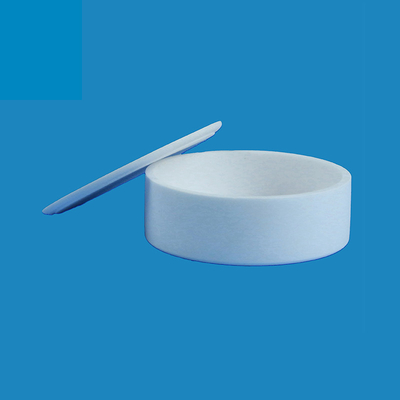

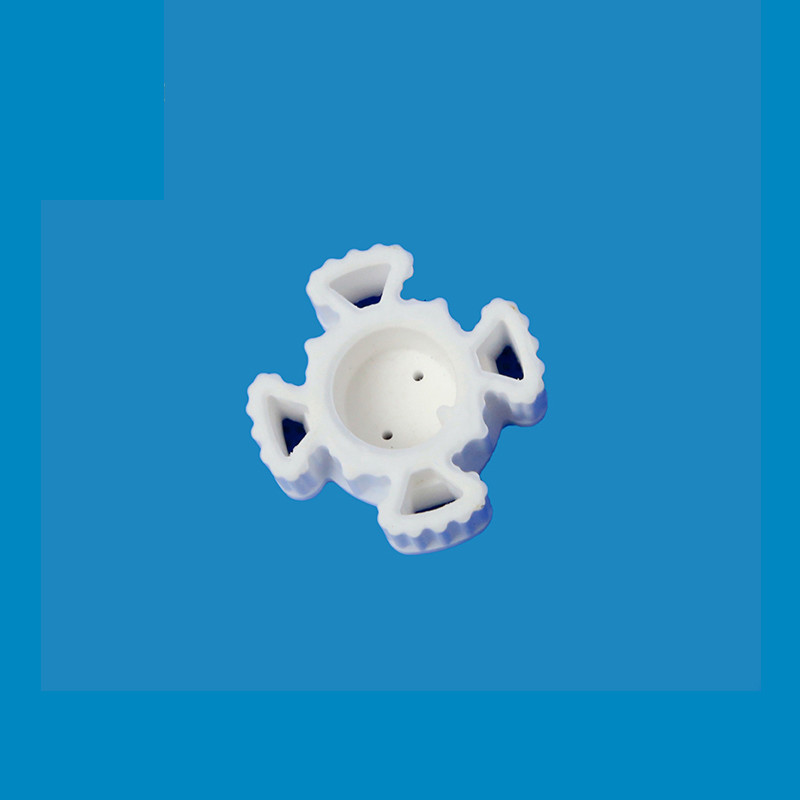

Product Gallery

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	95% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
