Name: Recrystallized Alumina Based Ceramics For Bulletproof Armor Abrasion Resistance
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	95% Alumina Ceramics	Color:	White
Heat Resistance Level:	High Heat Resistance	Shape:	Customizable
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	Recrystallized Alumina Based Ceramics , armor Alumina Based Ceramics , armor recrystallized alumina

Product Description

Recrystallized Alumina Based Ceramics For Bulletproof Armor Abrasion Resistance

Product Specifications

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Heat resistance level	High heat resistance
Shape	Customizable
OEM, ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

OEM ODM White 95% Alumina Ceramics designed for harsh environments in mechanical and electrical industries. Alumina ceramics have excellent properties and can be widely used in a variety of demanding applications.

The exceptional hardness and toughness of alumina ceramics make it a key material for the production of bulletproof armor. It is used in body armor plates and vehicle armor to protect against bullets, shrapnel and other projectiles.

Material Properties

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardulus	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

Product Images

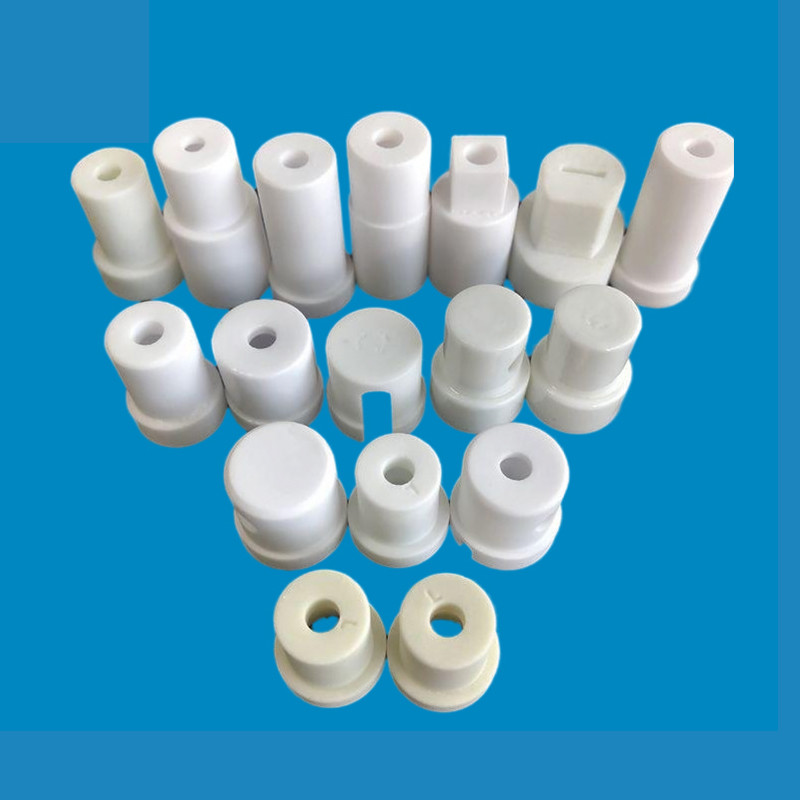

White 95% alumina ceramic component

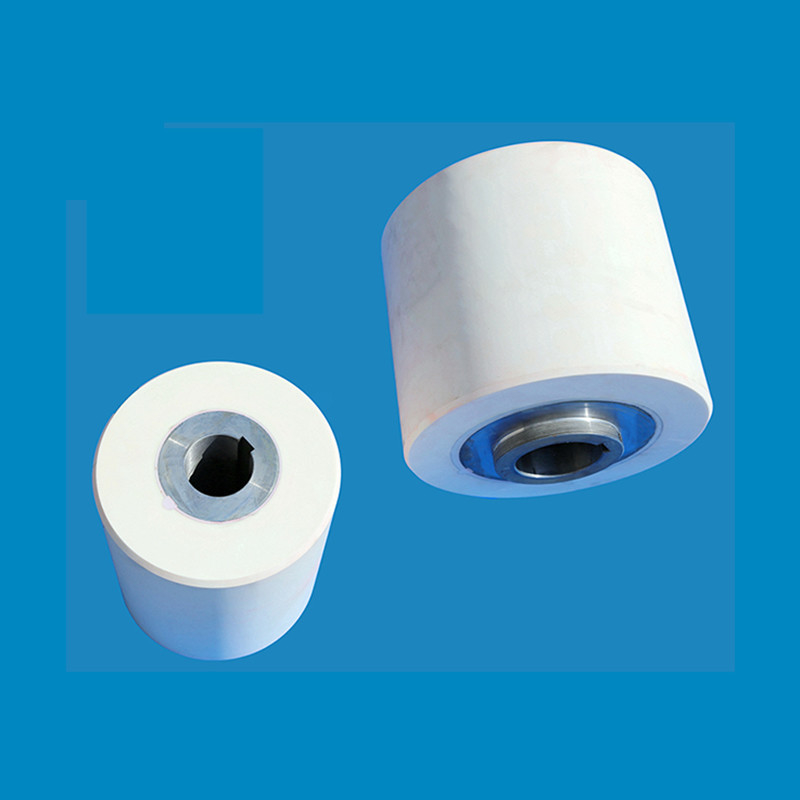

High precision alumina ceramic part

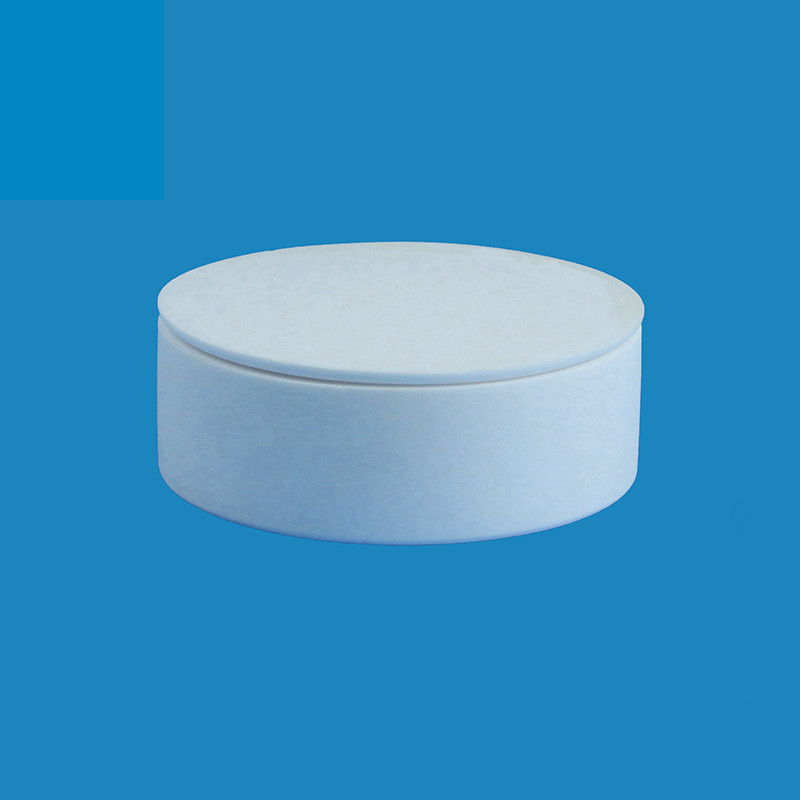

Custom shaped alumina ceramic product

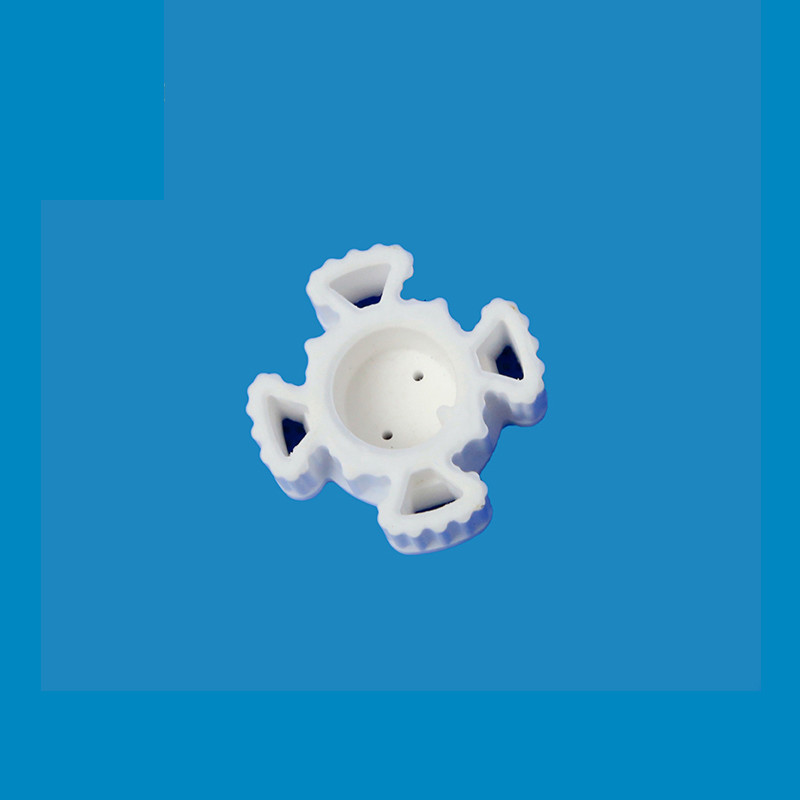

Industrial grade alumina ceramic component

High insulation heat resistant alumina ceramic ring

Alumina ceramic industrial component

Precision alumina ceramic part

Custom alumina ceramic product

High performance alumina ceramic component

Industrial alumina ceramic part

Custom designed alumina ceramic product

High quality alumina ceramic component

Precision engineered alumina ceramic part

Industrial grade alumina ceramic product

High performance alumina ceramic component

Custom alumina ceramic industrial part

High insulation heat resistant alumina ceramic ring

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	95% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
