Name: Synthetic Alumina Ceramic Disc Components Parts 94% AL2O3 High Hardness
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	95% Alumina Ceramics	Color:	White
Maximum Use Temperature:	1600 ℃	Shape:	Customizable
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	synthetic alumina ceramic disc , 94% AL2O3 alumina ceramic disc , high hardness alumina parts

Product Description

Synthetic Alumina Ceramic Disc Components Parts 94% AL2O3 High Hardness

Product Specifications

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Maximum Use Temperature	1600 ℃
Shape	Customizable
OEM, ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Our 95% alumina ceramics are engineered for diverse industrial applications including mechanical equipment, electronics, medical devices, and chemical processing. These high-performance components can be customized through various molding methods to meet specific operational requirements.

In energy and environmental applications, our alumina ceramics excel in high-temperature environments, making them ideal for manufacturing industrial furnaces, heat exchangers, and other thermal management systems.

Material Properties Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

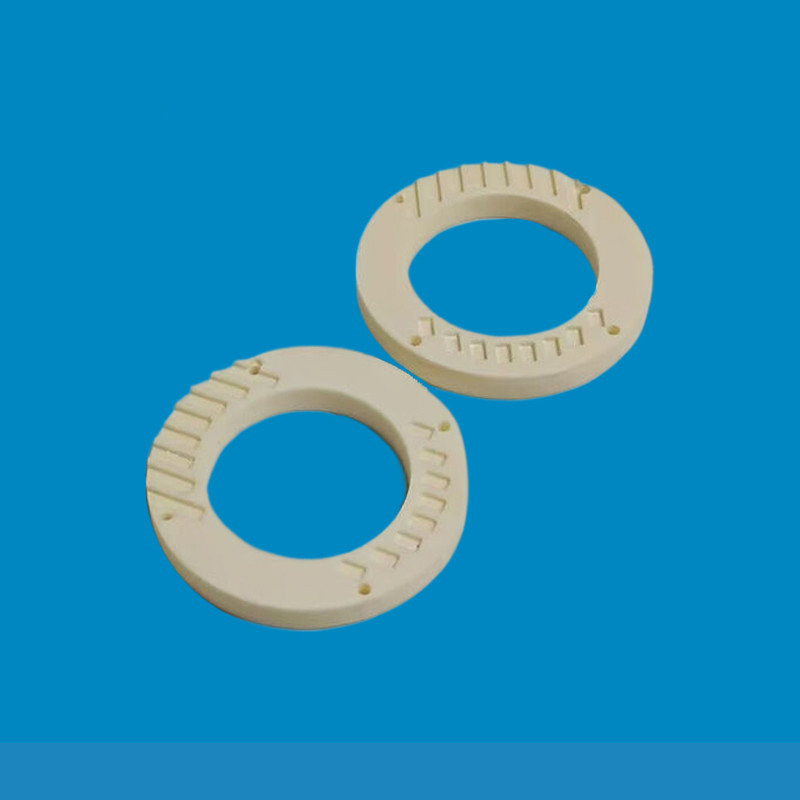

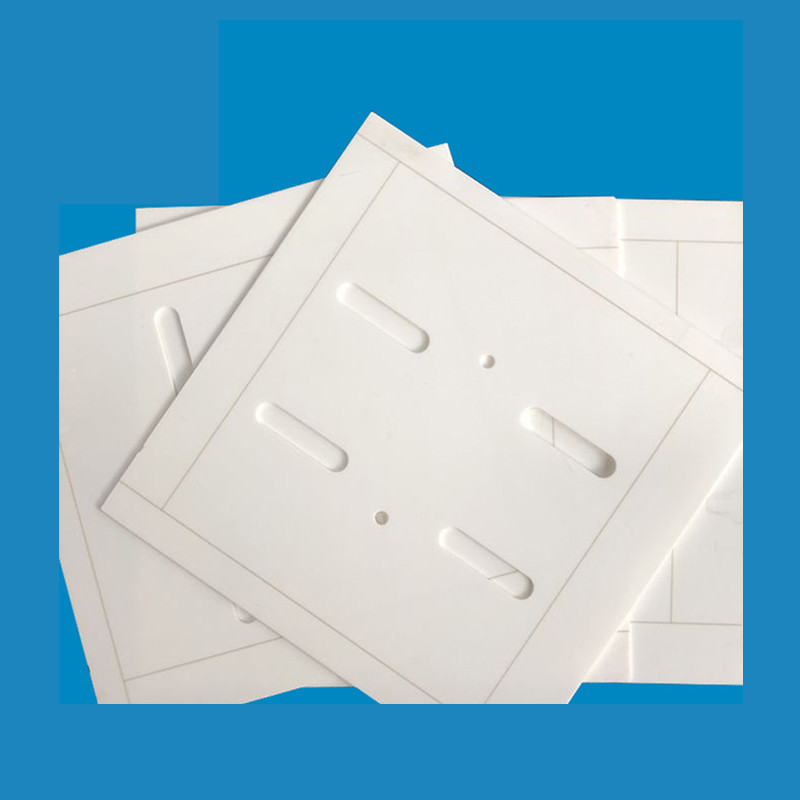

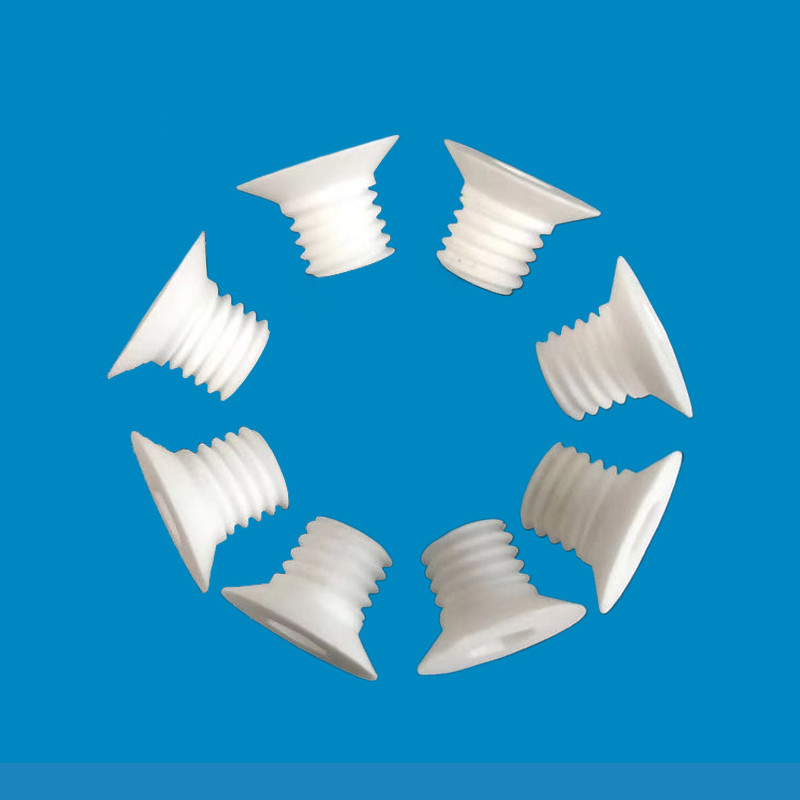

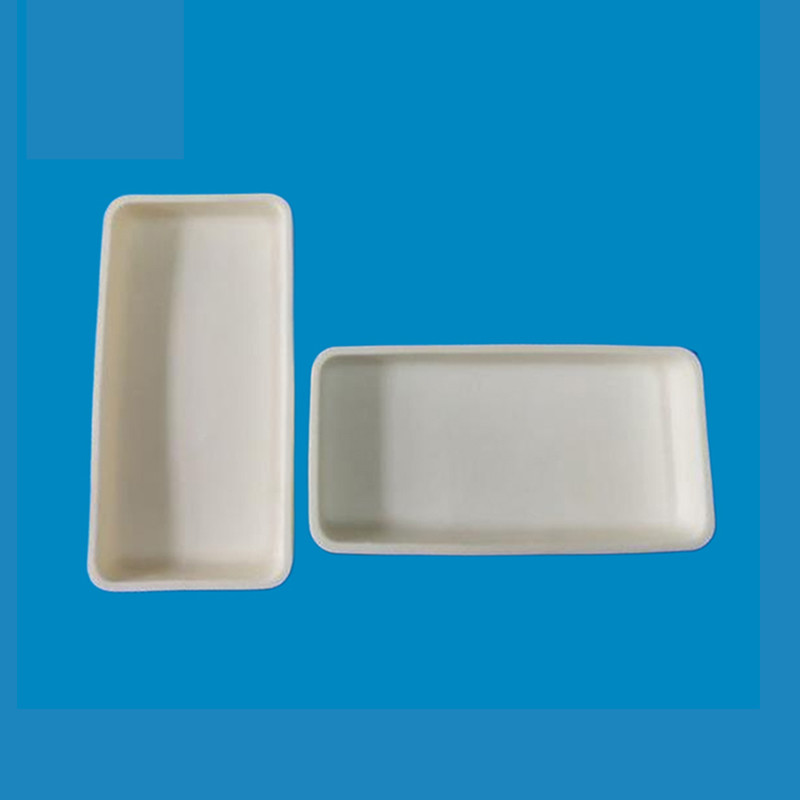

Product Gallery

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	95% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
