White 95% Dielectric Alumina Ceramic Components Producers High Purity

White 95% Dielectric Alumina Ceramic Components Producers High Purity
White 95% Dielectric Alumina Ceramic Components Producers High Purity White 95% Dielectric Alumina Ceramic Components Producers High Purity White 95% Dielectric Alumina Ceramic Components Producers High Purity White 95% Dielectric Alumina Ceramic Components Producers High Purity
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: 95% Alumina Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: 95% Alumina Ceramics Color: White
Density: 3.6 G/cm³ Dielectric Strength: 20 KV/mm
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Dielectric alumina ceramic components

,

alumina ceramic components Producers

,

Dielectric high purity alumina producers

Product Description

White 95% Dielectric Alumina Ceramic Components Producers High Purity
Product Specifications
Attribute Value
Material 95% Alumina Ceramics
Color White
Density 3.6 g/cm³
Dielectric Strength 20 KV/mm
OEM/ODM Acceptable
Origin Wuxi Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description
Our 95% alumina ceramics are engineered for machinery manufacturing applications, particularly suited for high-precision mechanical components such as ceramic bearings and sliders. These components benefit from the material's exceptional hardness, strength, and low thermal expansion coefficient.
Technical Properties Comparison
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10
Product Images

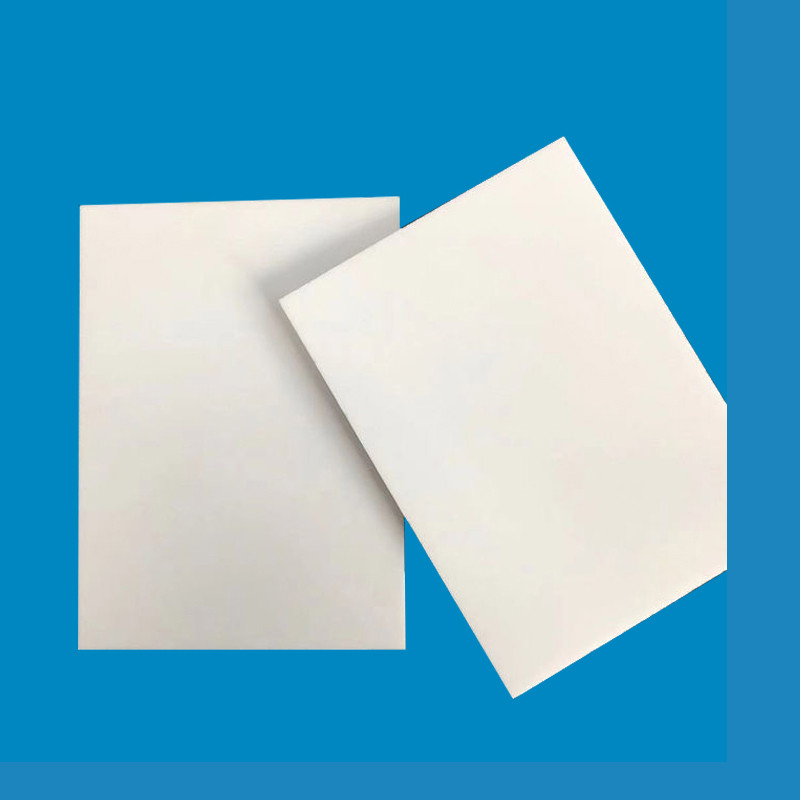

White 95% Dielectric Alumina Ceramic Components Producers High Purity 0
High-precision alumina ceramic component

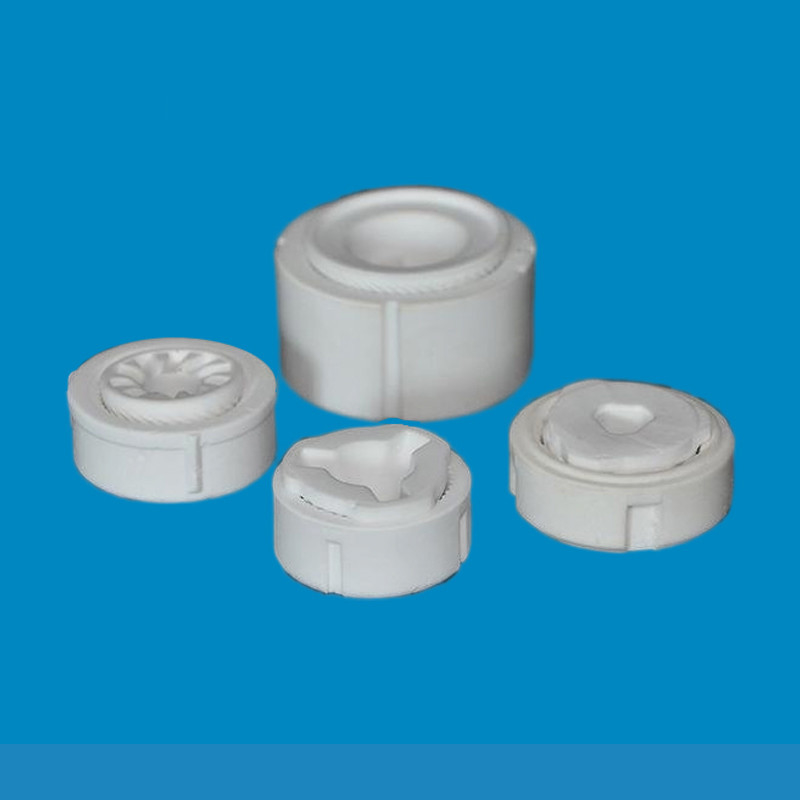

White 95% Dielectric Alumina Ceramic Components Producers High Purity 1
Surface texture detail

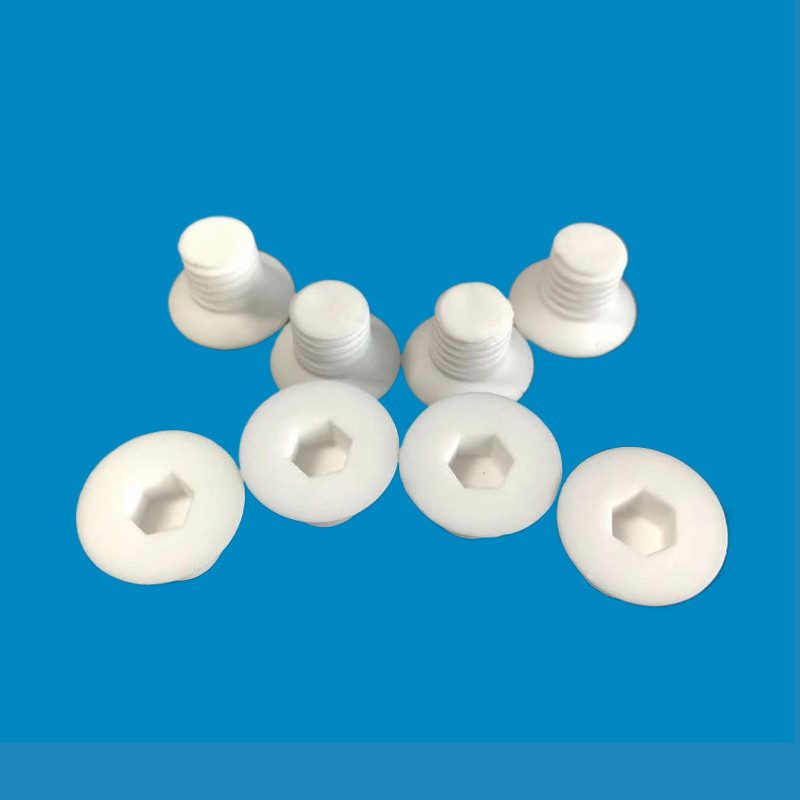

White 95% Dielectric Alumina Ceramic Components Producers High Purity 2
Industrial application

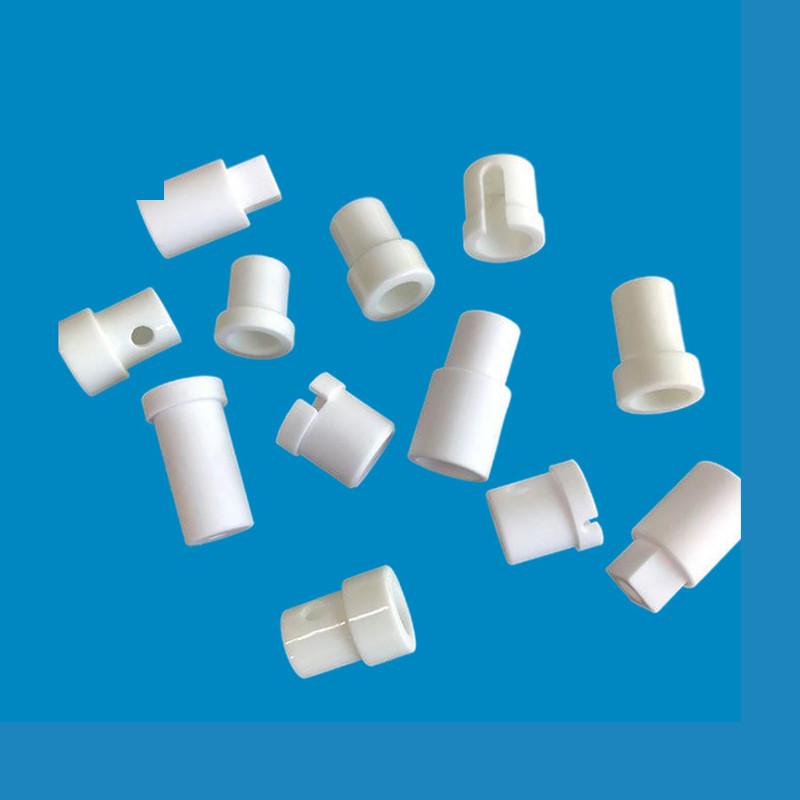

White 95% Dielectric Alumina Ceramic Components Producers High Purity 3
Ceramic insulation ring
White 95% Dielectric Alumina Ceramic Components Producers High Purity 4
Heat-resistant ceramic ring
White 95% Dielectric Alumina Ceramic Components Producers High Purity 5
Precision industrial components
White 95% Dielectric Alumina Ceramic Components Producers High Purity 6
Smooth surface finish
White 95% Dielectric Alumina Ceramic Components Producers High Purity 7
Various component shapes
White 95% Dielectric Alumina Ceramic Components Producers High Purity 8
Corrosion-resistant parts
White 95% Dielectric Alumina Ceramic Components Producers High Purity 9
Precision-engineered components
White 95% Dielectric Alumina Ceramic Components Producers High Purity 10
Dielectric ceramic parts
White 95% Dielectric Alumina Ceramic Components Producers High Purity 11
Machinery components
White 95% Dielectric Alumina Ceramic Components Producers High Purity 12
Dimensional accuracy
White 95% Dielectric Alumina Ceramic Components Producers High Purity 13
Thermally stable components
White 95% Dielectric Alumina Ceramic Components Producers High Purity 14
Mechanical applications
White 95% Dielectric Alumina Ceramic Components Producers High Purity 15
High-quality components
White 95% Dielectric Alumina Ceramic Components Producers High Purity 16
Insulation ceramic ring
