Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component

Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: 95% Alumina Ceramics
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: 95% Alumina Ceramics Color: White
Weibull Modulus: 10M Modulus Of Elasticity: 340 Gpa
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Robust alumina oxide ceramic

,

Insulating alumina oxide ceramic

,

Robust alumina ceramic machining

Product Description

Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Key Attributes
Attribute Value
Material 95% Alumina Ceramics
Color White
Weibull Modulus 10M
Modulus of Elasticity 340 Gpa
OEM/ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Overview

Our 95% alumina ceramic is an advanced industrial material offering exceptional performance characteristics. With volume resistivity of ≥10¹⁴ Ω, it provides superior electrical insulation while maintaining excellent thermal properties.

Key Features
  • Hardness second only to diamond, surpassing steel and stainless steel wear resistance
  • Superior wear resistance extends equipment service life
  • Excellent electrical insulation properties
  • High thermal resistance and conductivity
  • Available in custom OEM/ODM configurations
Technical Specifications
Property Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥10¹⁴ ≥10¹⁴ ≥10¹⁴ ≥10¹⁴
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10
Product Images

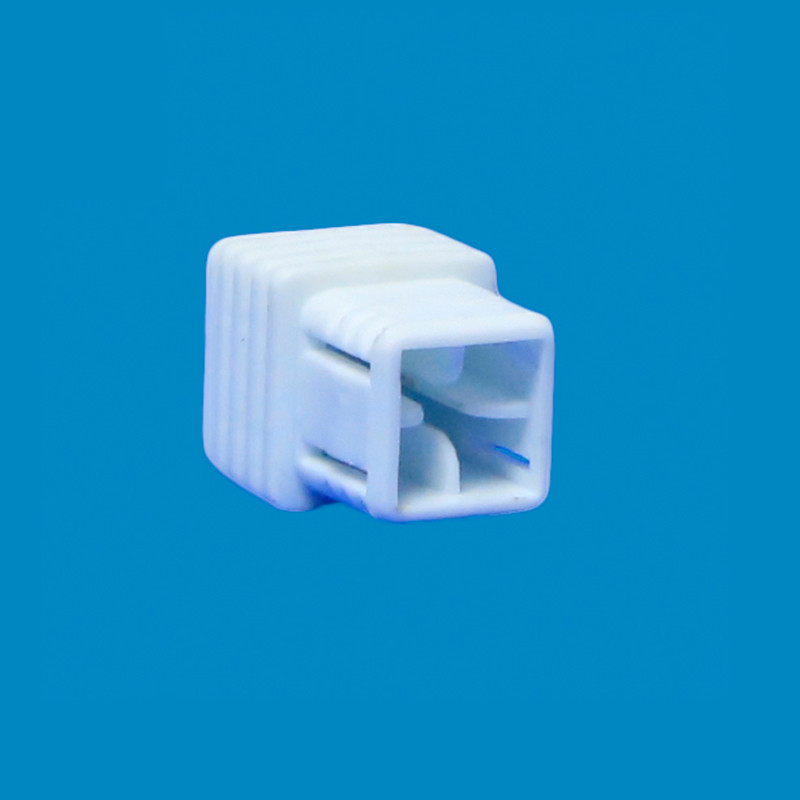

Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 0

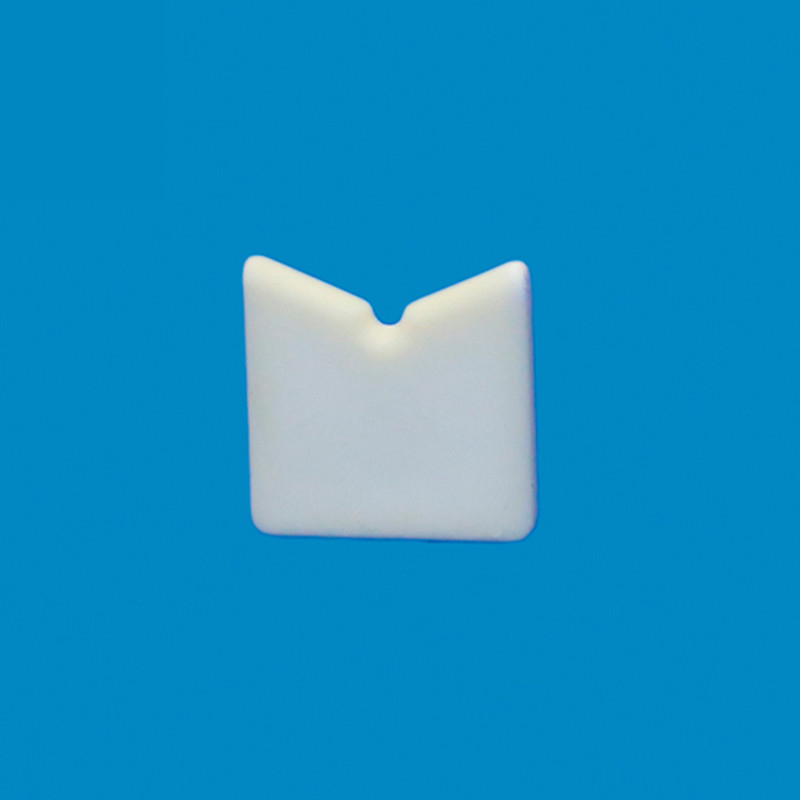

Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 1

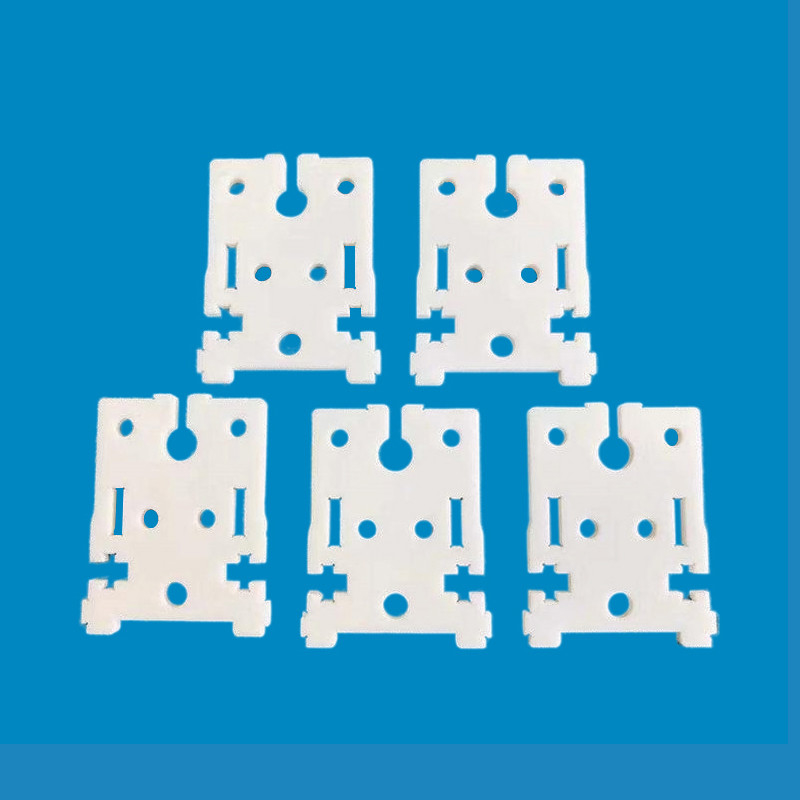

Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 2
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 3

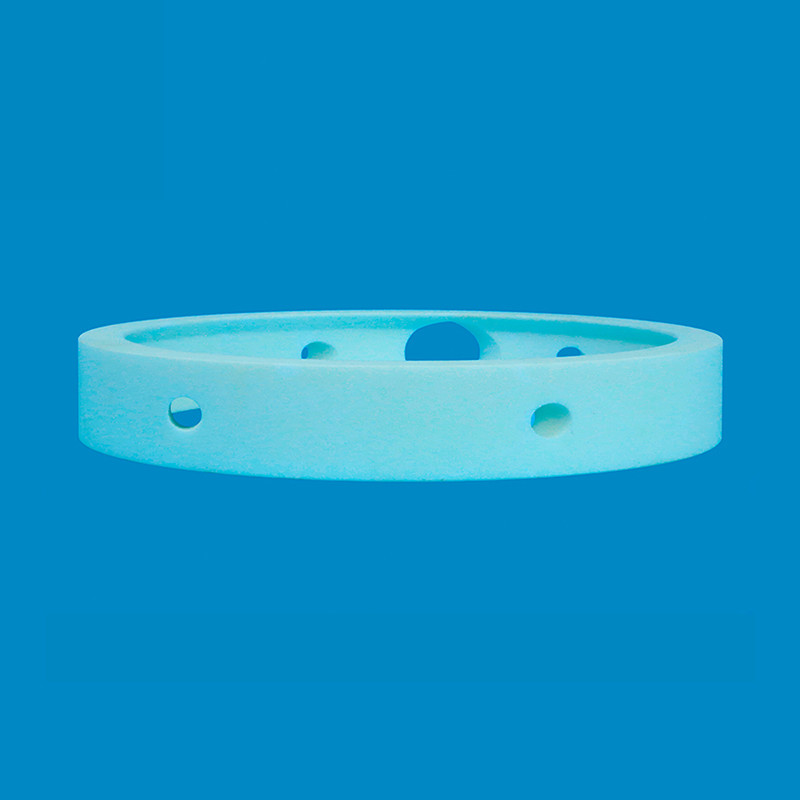

3.6g/cm³ 95 ceramic parts ring with high insulation properties
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 5
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 6
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component 7
3.6g/cm³ 95 ceramic parts ring with heat resistant properties
