Material: | 95% Alumina Ceramics | Color: | White |
---|---|---|---|
Density: | 3.6 G/cm³ | Dielectric Strength: | 20 KV/mm |
OEM,ODM: | Acceptable | Orgin: | WUXI JIANGSU CHINA |
MOQ: | 100 PCS | Package: | Carton |
Highlight: | 95% alumina ceramic parts,Customized alumina ceramic parts,Electrical Insulation alumina parts |
Material | 95% Alumina Ceramics |
Color | White |
Density | 3.6 g/cm³ |
Dielectric Strength | 20 KV/mm |
OEM/ODM | Acceptable |
Origin | Wuxi Jiangsu, China |
MOQ | 100 PCS |
Package | Carton |
Property | Unit | 95% Alumina | 97% Alumina | 99% Alumina | 99.7% Alumina |
---|---|---|---|---|---|
Density | g/cm³ | 3.6 | 3.72 | 3.85 | 3.85 |
Flexural Strength | Mpa | 290 | 300 | 350 | 350 |
Compressive Strength | Mpa | 3300 | 3400 | 3600 | 3600 |
Modulus of Elasticity | Gpa | 340 | 350 | 380 | 380 |
Impact Resistance | MPam1/2 | 3.9 | 4 | 5 | 5 |
Weibull Modulus | M | 10 | 10 | 11 | 11 |
Vickers Hardness | HV0.5 | 1800 | 1850 | 1900 | 1900 |
Thermal Expansion Coefficient | 10-6K-1 | 5.0-8.3 | 5.0-8.3 | 5.4-8.3 | 5.4-8.3 |
Thermal Conductivity | W/Mk | 23 | 24 | 27 | 27 |
Thermal Shock Resistance | △T℃ | 250 | 250 | 270 | 270 |
Maximum Use Temperature | ℃ | 1600 | 1600 | 1650 | 1650 |
Volume Resistivity at 20℃ | Ω | ≥1014 | ≥1014 | ≥1014 | ≥1014 |
Dielectric Strength | KV/mm | 20 | 20 | 25 | 25 |
Dielectric Constant | εr | 10 | 10 | 10 | 10 |
95% Alumina Ceramics offer superior electrical insulation, corrosion resistance, and abrasion resistance. These advanced ceramic components are widely used in machinery and electronic equipment, meeting both standard and specialized application requirements.

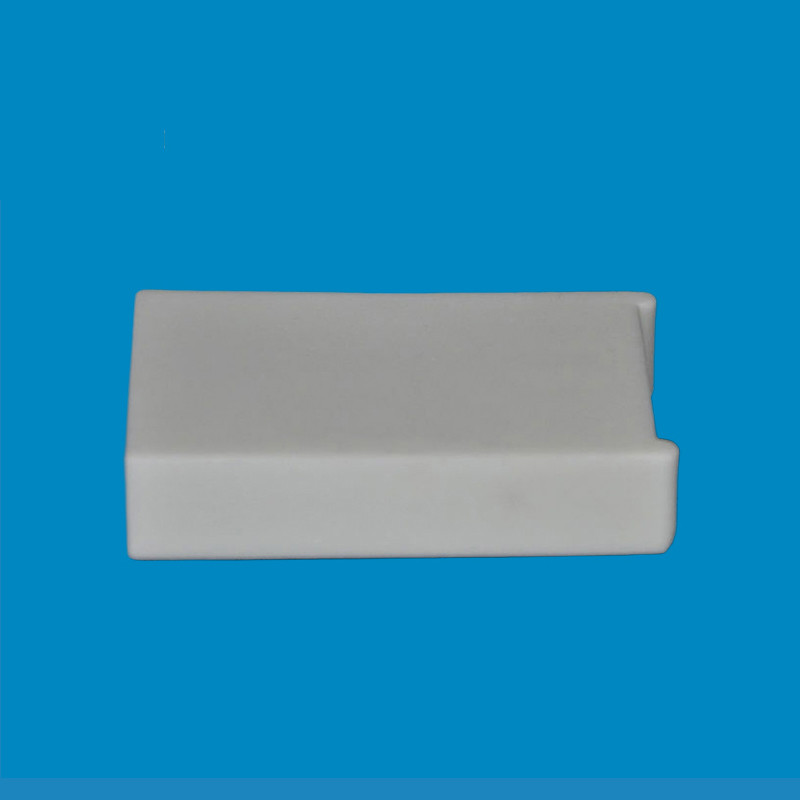

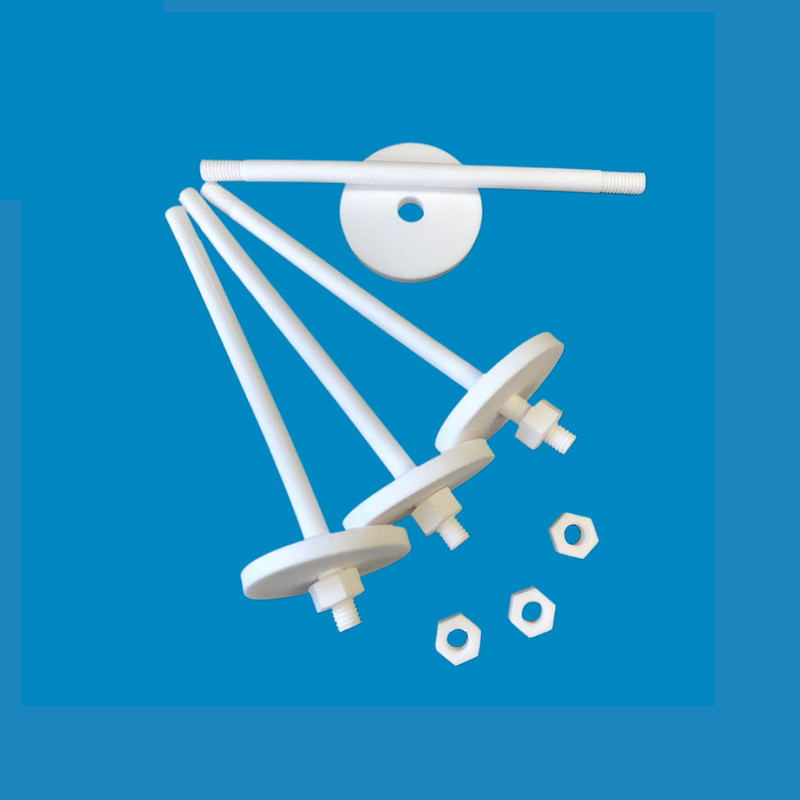

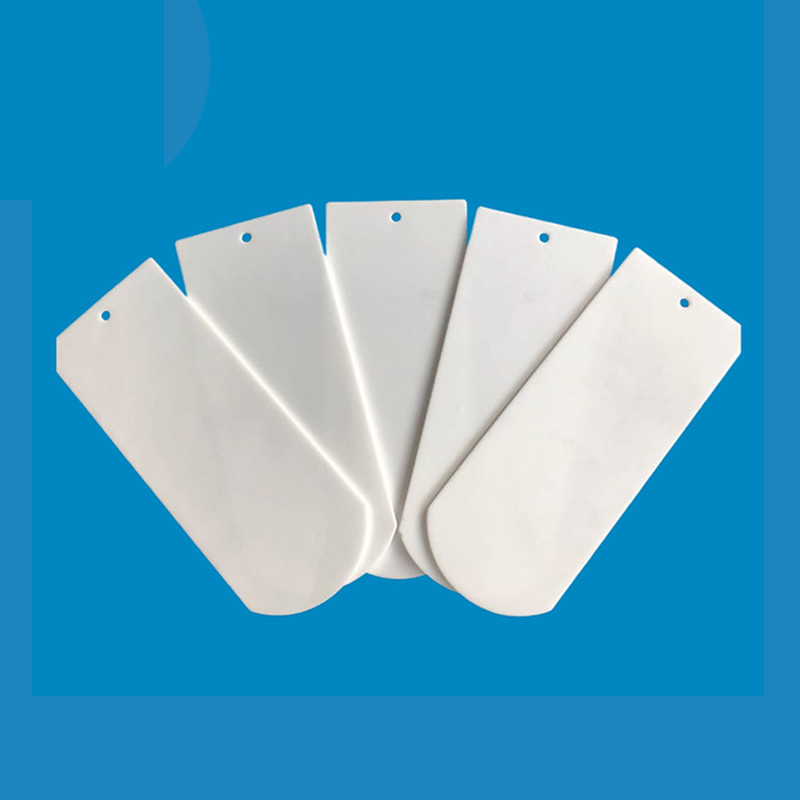

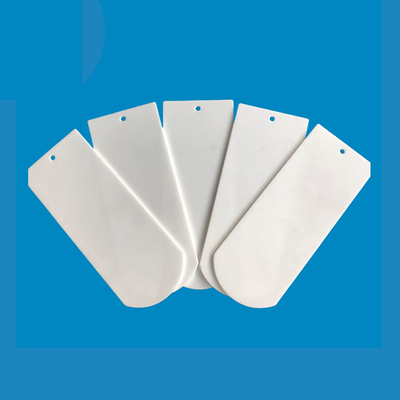

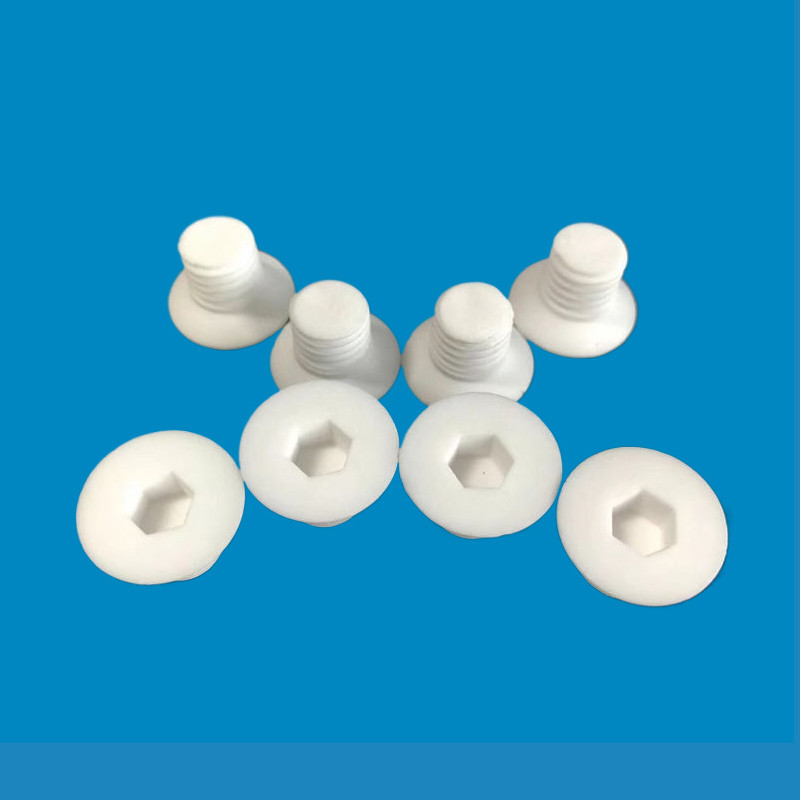

Our product range includes various shapes and forms such as tubes, plates, rings, rollers, shafts, washers, spacers, and seal parts, all customizable to your specifications.
