Name: 1800 Vickers Hardulus 95% Alumina Ceramics Insulator Ceramic Components
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	95% Alumina Ceramics	Color:	White
Weibull Modulus:	10M	Density:	3.6 G/cm³
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	95% alumina ceramic al2o3 , 95% alumina based ceramics , White alumina ceramic components

Product Description

1800 Vickers Hardulus 95% Alumina Ceramics Insulator Ceramic Components

Product Specifications

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Weibull Modulus	10M
Density	3.6 g/cm³
OEM, ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Our 95% alumina ceramic components belong to the ordinary alumina ceramic series, which are classified into 99%, 95%, 90%, and 85% ceramic varieties based on Al₂O₃ content. These high-performance 95% alumina ceramics are primarily used as corrosion-resistant and wear-resistant components, extensively applied in electronic devices and integrated circuit manufacturing.

Material Properties Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardulus	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

Product Images

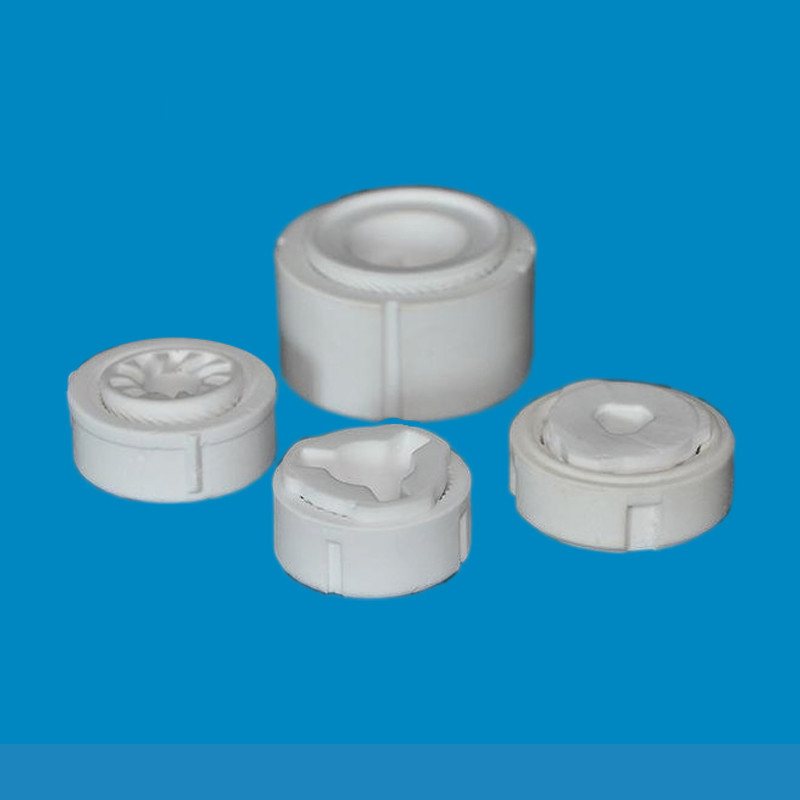

3.6g/cm³ 95 ceramic parts ring with high insulation properties

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	95% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
