Name: Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: 95% Alumina Ceramics
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	95% Alumina Ceramics	Color:	White
Density:	3.6g/cm³	Modulus Of Elasticity:	340 Gpa
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100 PCS	Package:	Carton
Highlight:	95% Alumina Ceramic Plate , 3.6g/cm³ Alumina Ceramic Plate , Refractory alumina ceramics

Product Description

Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes

Product Attributes

Attribute	Value
Material	95% Alumina Ceramics
Color	White
Density	3.6g/cm³
Modulus of Elasticity	340 Gpa
OEM，ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100 PCS
Package	Carton

Product Description

Alumina ceramic substrate is widely used in many industrial fields due to its exceptional performance characteristics. These high-performance ceramics meet both standard and specialized application requirements with superior reliability.

Key Features

Multiple molding methods: extrusion, isostatic pressing, and injection molding
Customizable color options available
Maximum use temperature: 1600℃
Volume resistivity at 20℃: ≥10¹⁴Ω

Material Properties Comparison

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥10¹⁴	≥10¹⁴	≥10¹⁴	≥10¹⁴
Dielectric Strength	KV/mm	20	20	25	25
Dielectric Constant	εr	10	10	10	10

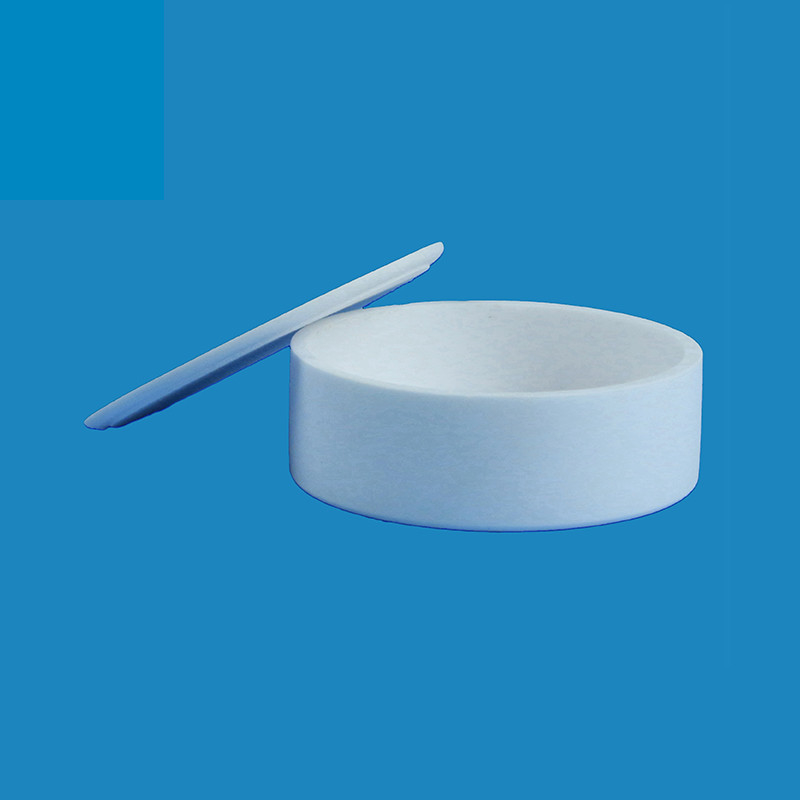

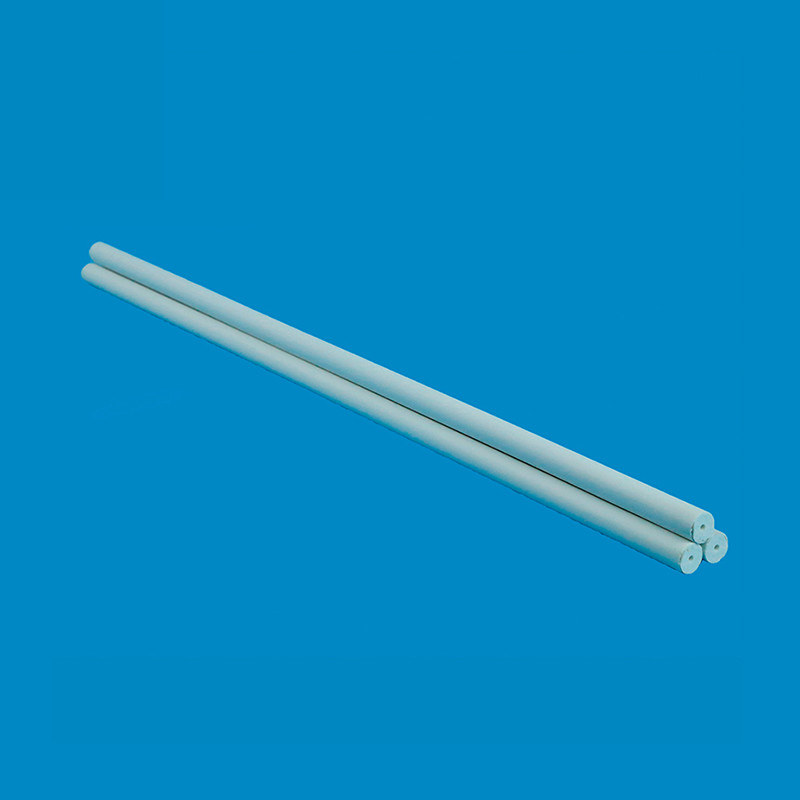

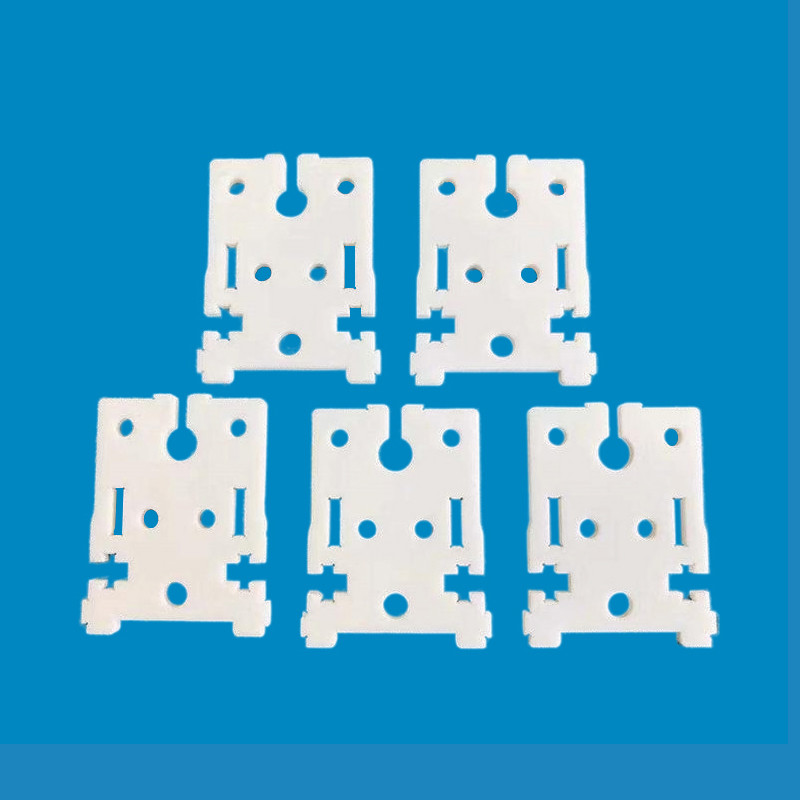

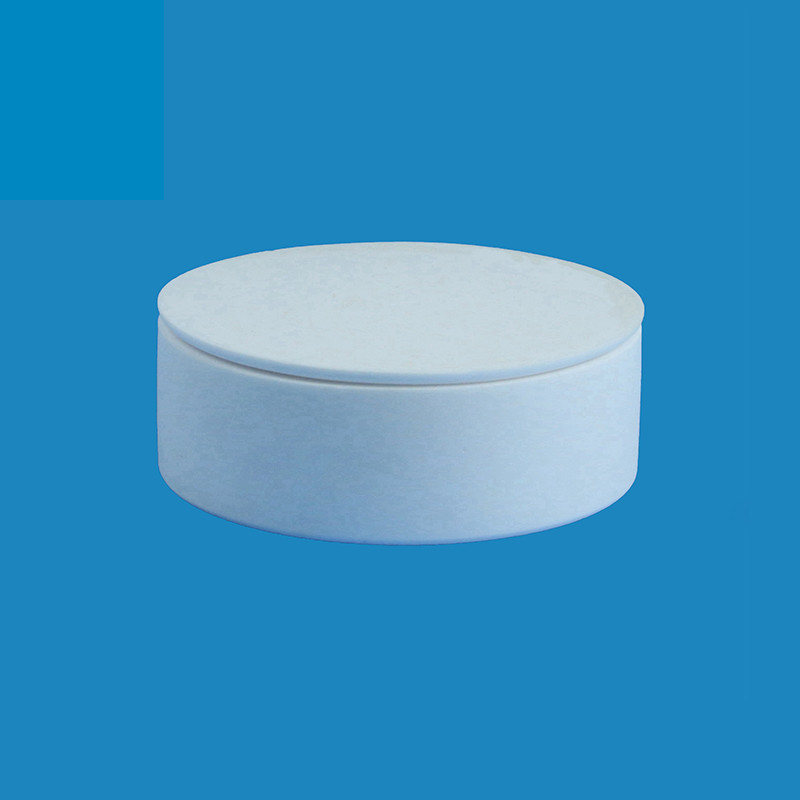

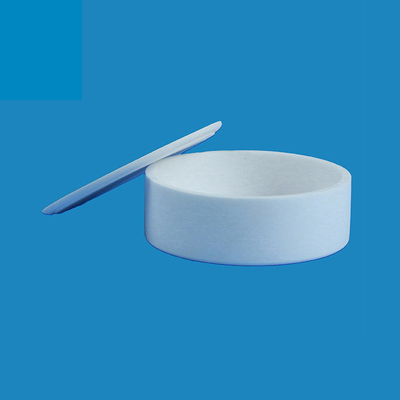

Product Images

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 0$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 1$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 2$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 3$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 4$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 5$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 6$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 7$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 8$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 9$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 10$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 11$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 12$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 13$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 14$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 15$

$Refractory 3.6g/cm³ 95% Alumina Ceramics Plate Customizable Have Many Shapes 16$

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	95% Alumina Ceramics

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
