OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory

OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Alumina Ceramic Crucible
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Alumina Ceramic Crucible Color: Yellow Or White
Shape: Customization Usage: Industry Usage
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

mullite Alumina Crucible

,

OEM Alumina Crucible

,

mullite al2o3 crucible

Product Description

OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory
Product Attributes
Material Alumina Ceramic Crucible
Color Yellow Or White
Shape Customization
Usage Industry Usage
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Our high-strength refractory alumina ceramic crucible is designed for kiln tools, providing excellent protection against gas and harmful substances. The use of alumina ceramic crucible for firing ceramics increases firing capacity, prevents product adhesion, improves yield rate, and provides excellent thermal conductivity and stability to ensure ceramic quality.

Technical Specifications
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

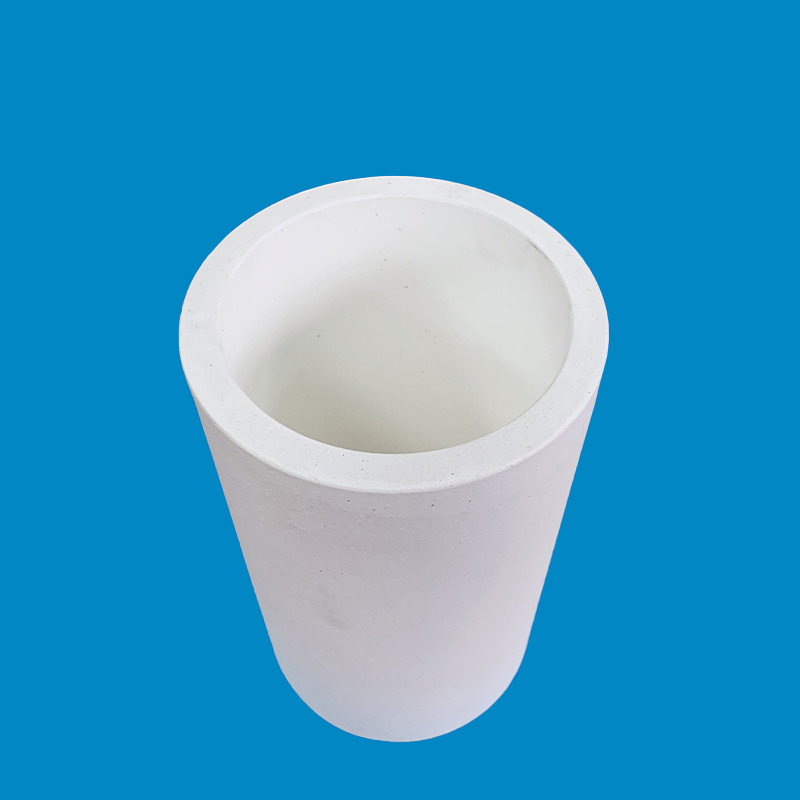

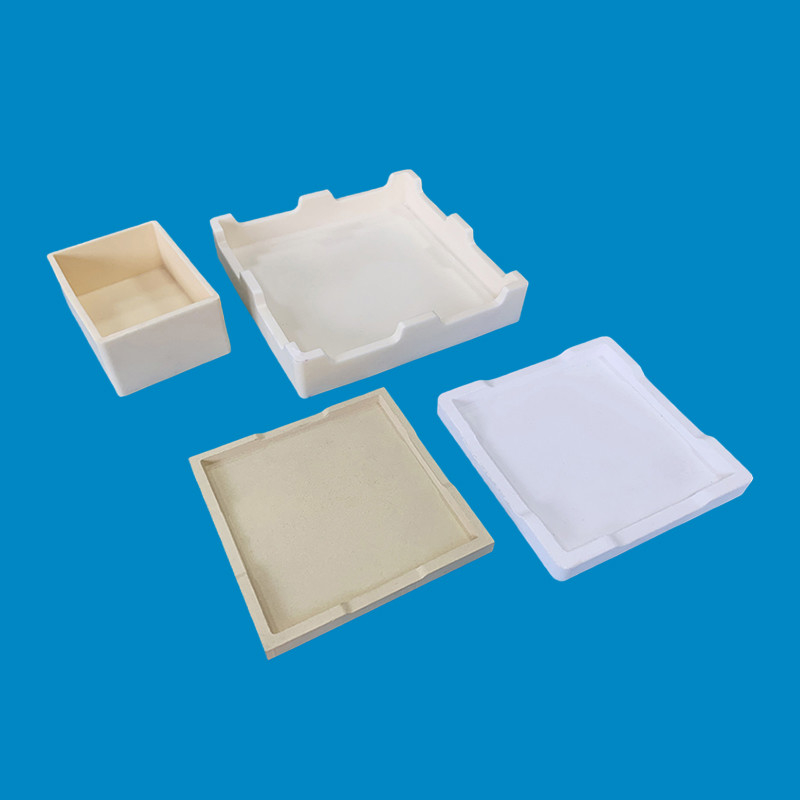

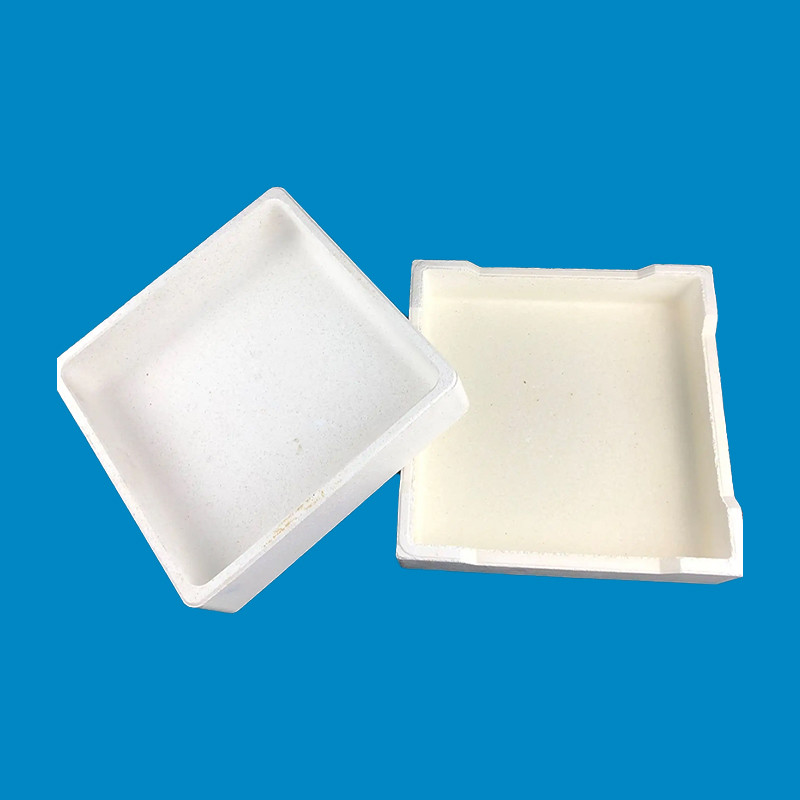

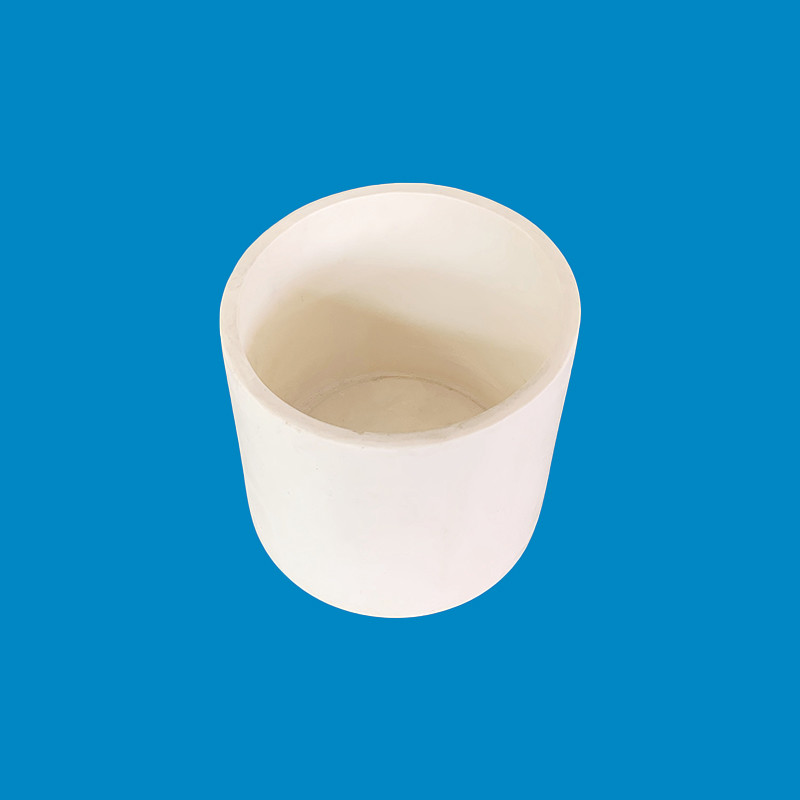

Product Images
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 0
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 1
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 2
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 3
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 4
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 5
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 6
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 7
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 8
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 9
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 10
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 11
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 12
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 13
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 14
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 15
OEM Mullite Ceramic Al2o3 Alumina Crucible For Kiln Refractory 16
