Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold

Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Alumina Ceramic Crucible
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Alumina Ceramic Crucible Color: Yellow Or White
Shape: Customization Usage: Industry Usage
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

Mullite high temperature ceramic crucible

,

Corundum high temperature ceramic crucible

,

Corundum ceramic crucible for melting gold

Product Description

Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold
Product Attributes
Attribute Value
Material Alumina Ceramic Crucible
Color Yellow Or White
Shape Customization
Usage Industry Usage
OEM，ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description
Our Corundum Mullite Composite Alumina Ceramic Crucible is engineered for high-performance industrial analysis and firing applications. The selection of premium raw materials directly impacts its exceptional performance and longevity.
Utilizing high-performance refractory materials like mullite and corundum mullite enhances:
  • Superior refractory temperature capacity
  • Optimized thermal conductivity efficiency
  • Exceptional structural stability during operation
These superior properties ensure optimal protection during ceramic firing processes, guaranteeing consistent product quality and maximum yield.
Technical Specifications
Material Unit A95% Alumina A97% Alumina A99% Alumina A99.7% Alumina
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric Constant εr 10 10 10 10
Product Images

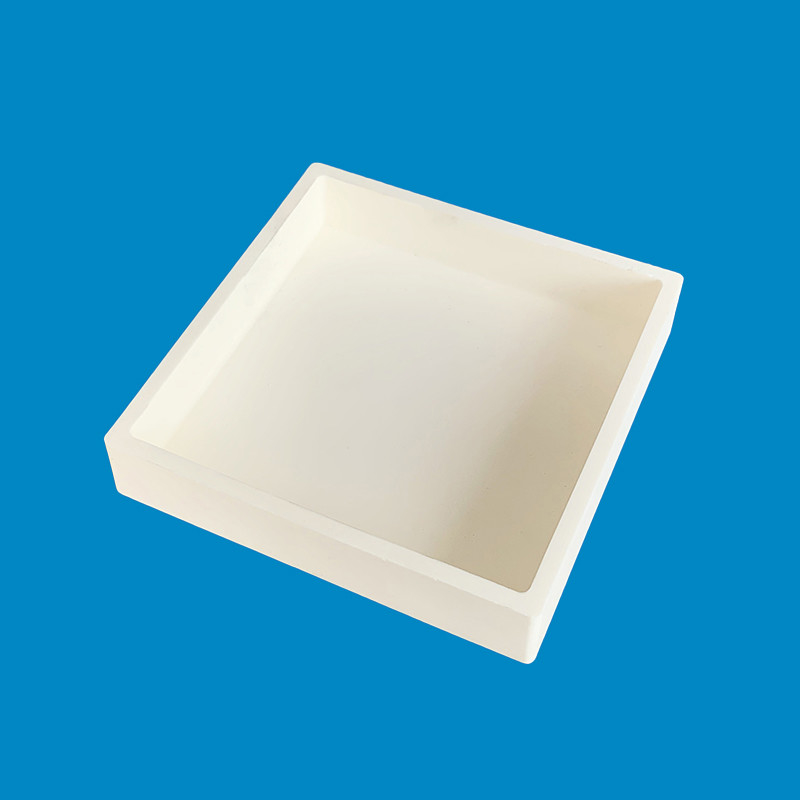

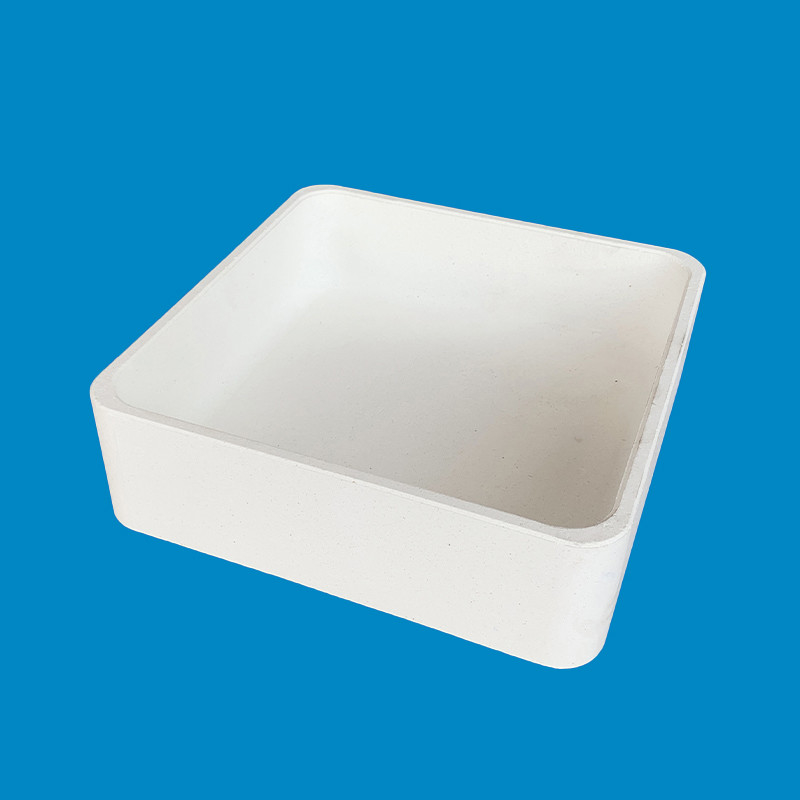

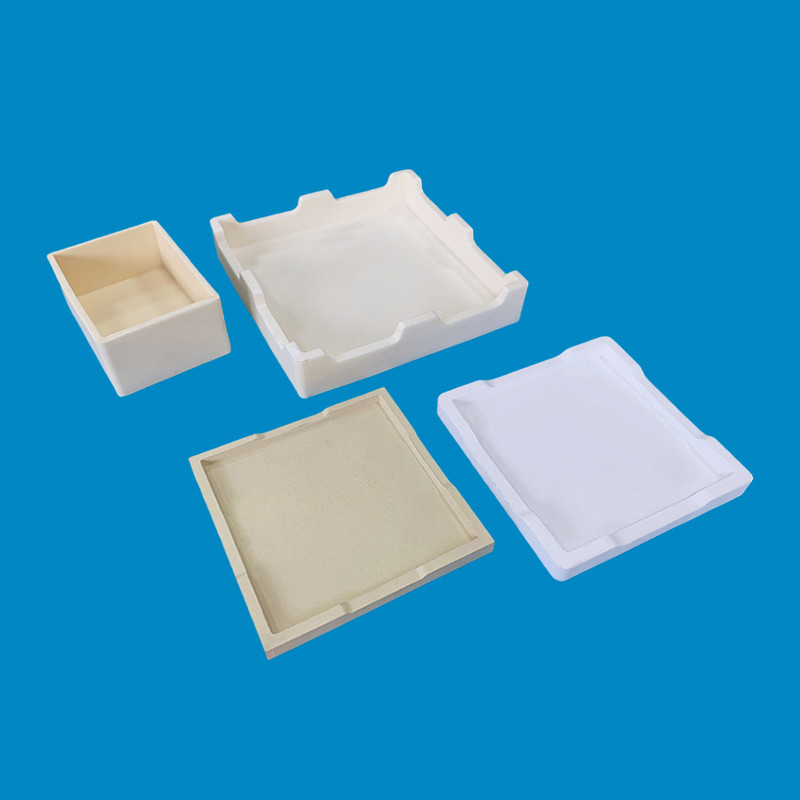

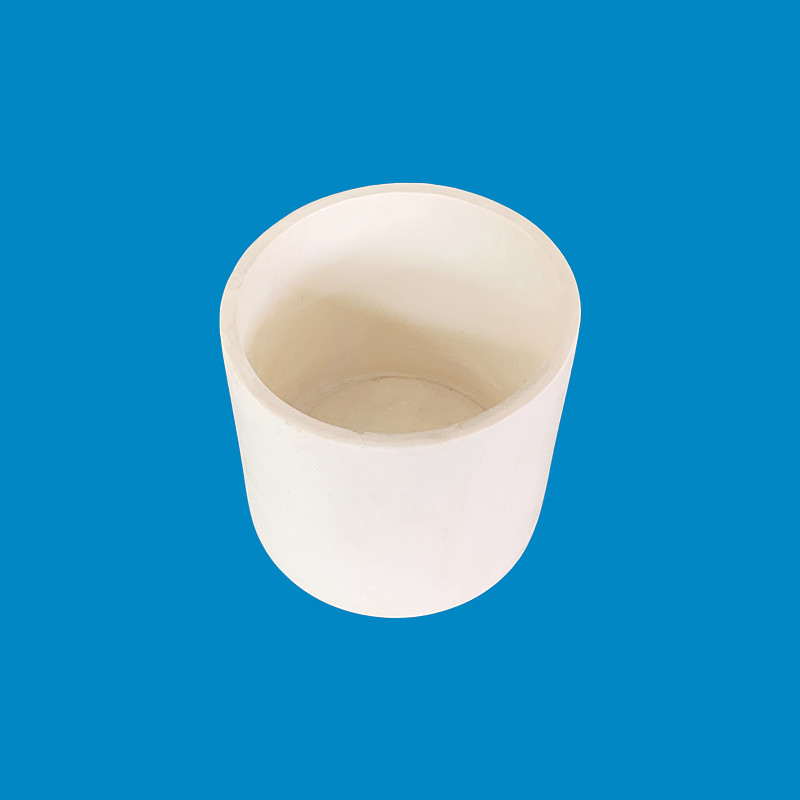

Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 0
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 1
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 2
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 3
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 4
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 5
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 6
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 7
Corundum Mullite Composite High Temperature Ceramic Crucible For Melting Gold 8
