Material: | Alumina Ceramic Crucible | Color: | Yellow Or White |
---|---|---|---|
Shape: | Customization | Usage: | Industry Usage |
OEM,ODM: | Acceptable | Orgin: | WUXI JIANGSU CHINA |
MOQ: | 100 PCS | Package: | Carton |
Highlight: | Sintered Alumina Crucible,industrial Alumina Crucible,Sintered ceramic crucible for melting steel |
Attribute | Value |
---|---|
Material | Alumina Ceramic Crucible |
Color | Yellow Or White |
Shape | Customization |
Usage | Industry Usage |
OEM, ODM | Acceptable |
Origin | WUXI JIANGSU CHINA |
MOQ | 100 PCS |
Package | Carton |

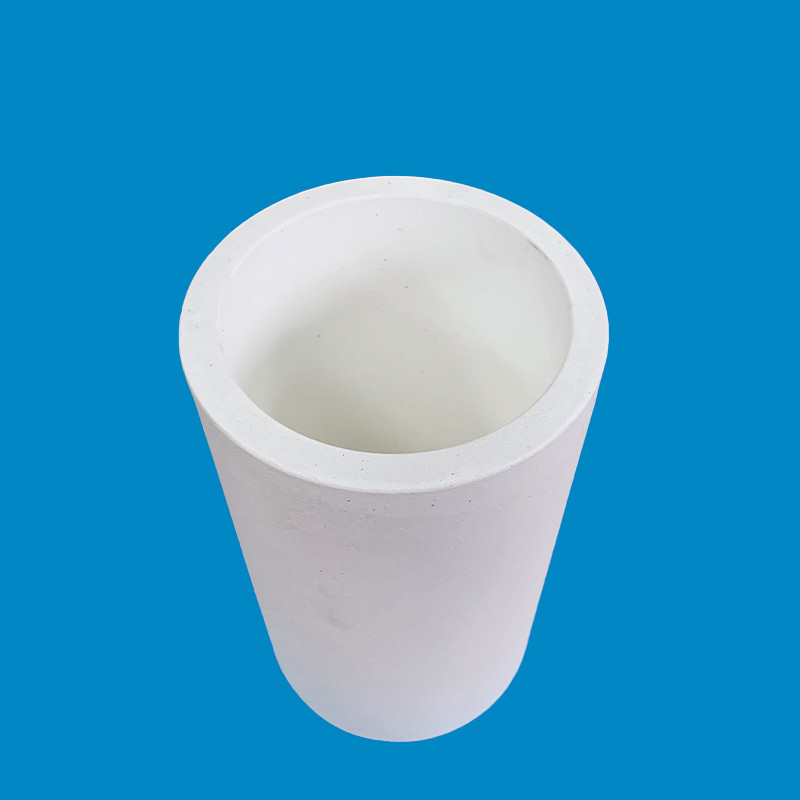

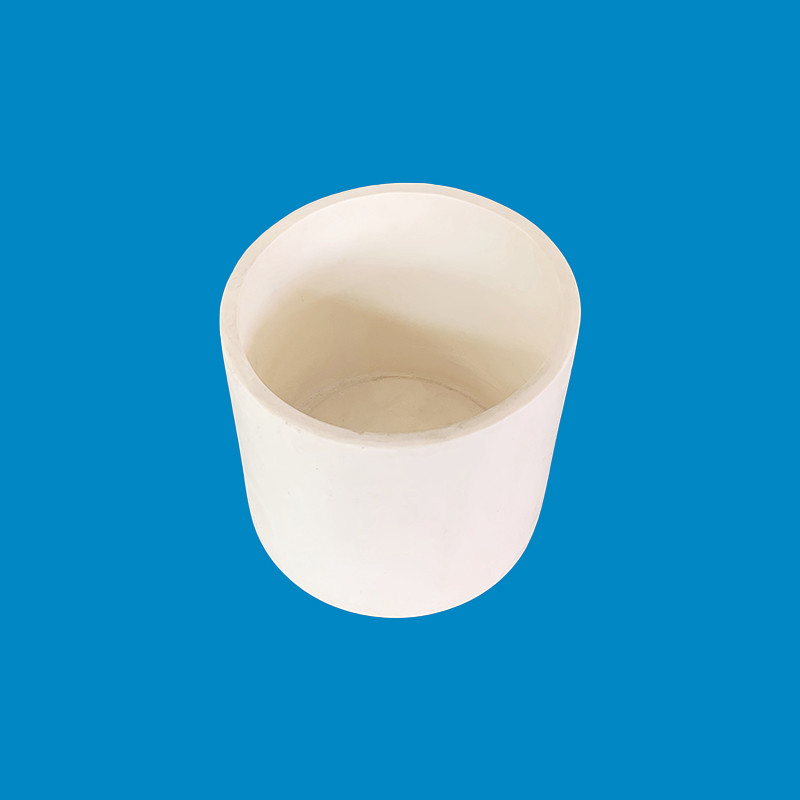

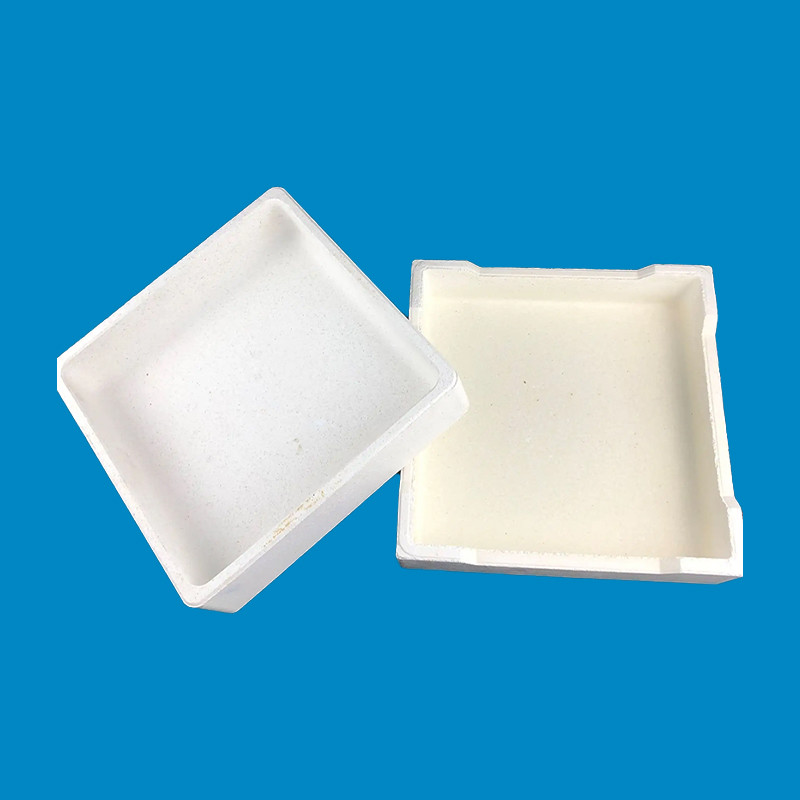

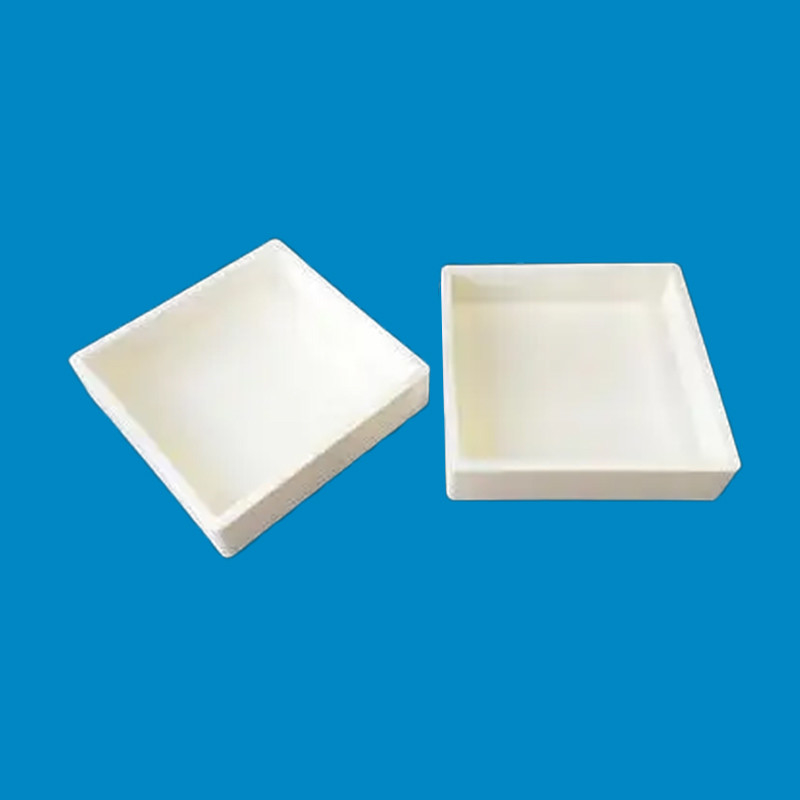

Our high thermal shock resistance alumina ceramic crucible is engineered for analyzing and firing applications in industrial settings. These crucibles serve as essential kiln tools designed specifically for ceramic firing processes, providing protection from direct flame exposure to prevent discoloration from smoke and dust.
Crafted from premium refractory materials, these crucibles offer superior softening temperatures that exceed typical firing requirements. The exceptional durability ensures excellent resistance to rapid cooling and heating cycles, guaranteeing extended service life in demanding industrial applications.
Material | Unit | A95% Alumina Ceramics | A97% Alumina Ceramics | A99% Alumina Ceramics | A99.7% Alumina Ceramics |
---|---|---|---|---|---|
Density | g/cm³ | 3.6 | 3.72 | 3.85 | 3.85 |
Flexural Strength | Mpa | 290 | 300 | 350 | 350 |
Compressive Strength | Mpa | 3300 | 3400 | 3600 | 3600 |
Modulus of Elasticity | Gpa | 340 | 350 | 380 | 380 |
Impact Resistance | MPam1/2 | 3.9 | 4 | 5 | 5 |
Weibull Modulus | M | 10 | 10 | 11 | 11 |
Vickers Hardness | HV0.5 | 1800 | 1850 | 1900 | 1900 |
Thermal Expansion Coefficient | 10-6K-1 | 5.0-8.3 | 5.0-8.3 | 5.4-8.3 | 5.4-8.3 |
Thermal Conductivity | W/Mk | 23 | 24 | 27 | 27 |
Thermal Shock Resistance | △T℃ | 250 | 250 | 270 | 270 |
Maximum Use Temperature | ℃ | 1600 | 1600 | 1650 | 1650 |
Volume Resistivity at 20℃ | Ω | ≥1014 | ≥1014 | ≥1014 | ≥1014 |
Dielectric Strength | KV/mm | 20 | 20 | 25 | 25 |
Dielectric constant | εr | 10 | 10 | 10 | 10 |
