Heat Resistant Refractory Ceramic Alumina Crucible Customized

Heat Resistant Refractory Ceramic Alumina Crucible Customized
Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized Heat Resistant Refractory Ceramic Alumina Crucible Customized
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Alumina Ceramic Crucible
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Alumina Ceramic Crucible Color: Yellow Or White
Shape: Customization Usage: Industry Usage
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 PCS Package: Carton
Highlight:

refractory Alumina Crucible

,

Heat Resistant Alumina Crucible

,

Customized alumina ceramic crucible

Product Description

Heat Resistant Refractory Ceramic Alumina Crucible - Customized
Product Specifications
Attribute Value
Material Alumina Ceramic Crucible
Color Yellow or White
Shape Customization Available
Usage Industrial Applications
OEM/ODM Acceptable
Origin Wuxi, Jiangsu, China
MOQ 100 PCS
Package Carton
Product Description
Our durable and heat resistant alumina ceramic crucibles are engineered for analyzing and firing processes in demanding industrial environments. Composed primarily of refractory clay with high-performance materials including mullite and corundum mullite, these crucibles maintain exceptional stability during high-temperature operations, ensuring reliable performance for ceramic production and laboratory applications.
Technical Specifications
Material Unit A95% A97% A99% A99.7%
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

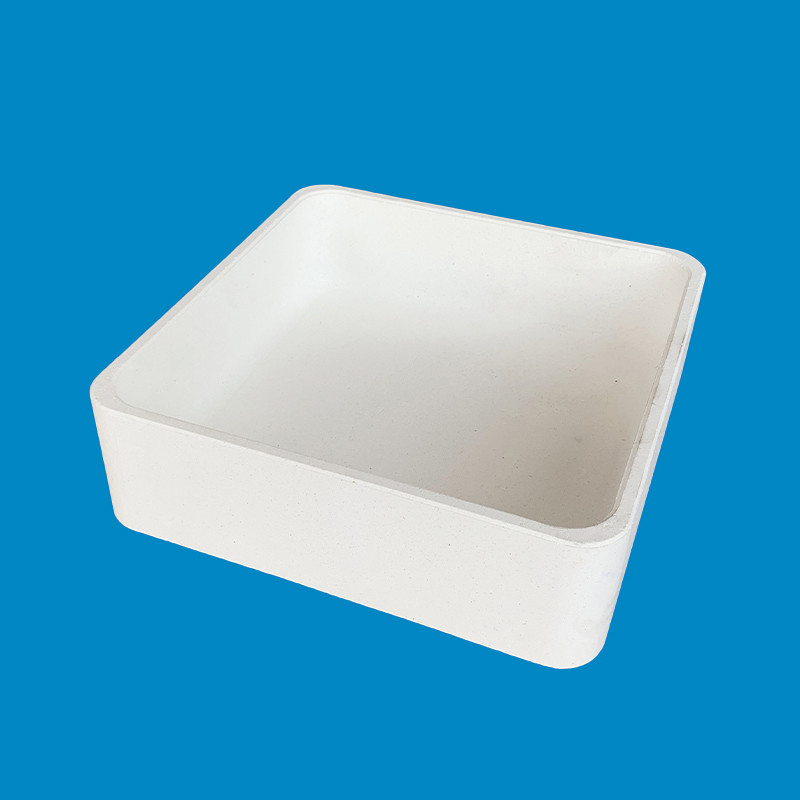

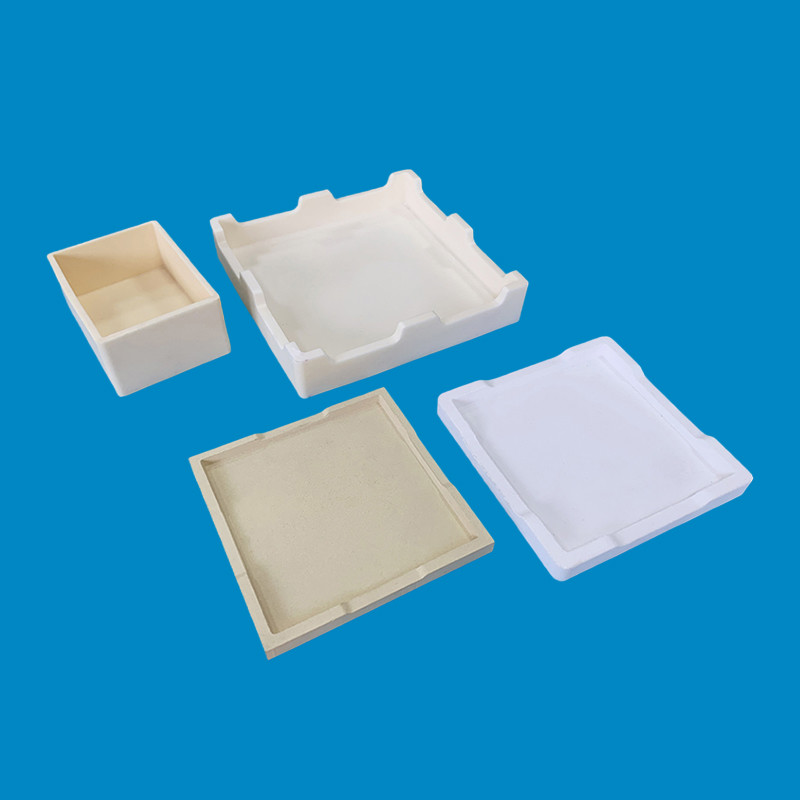

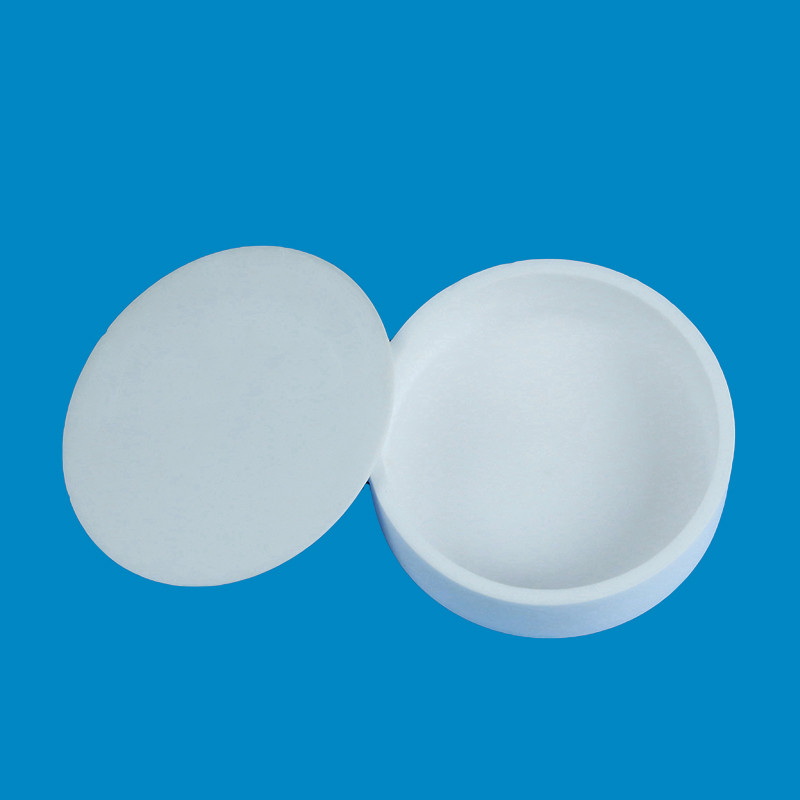

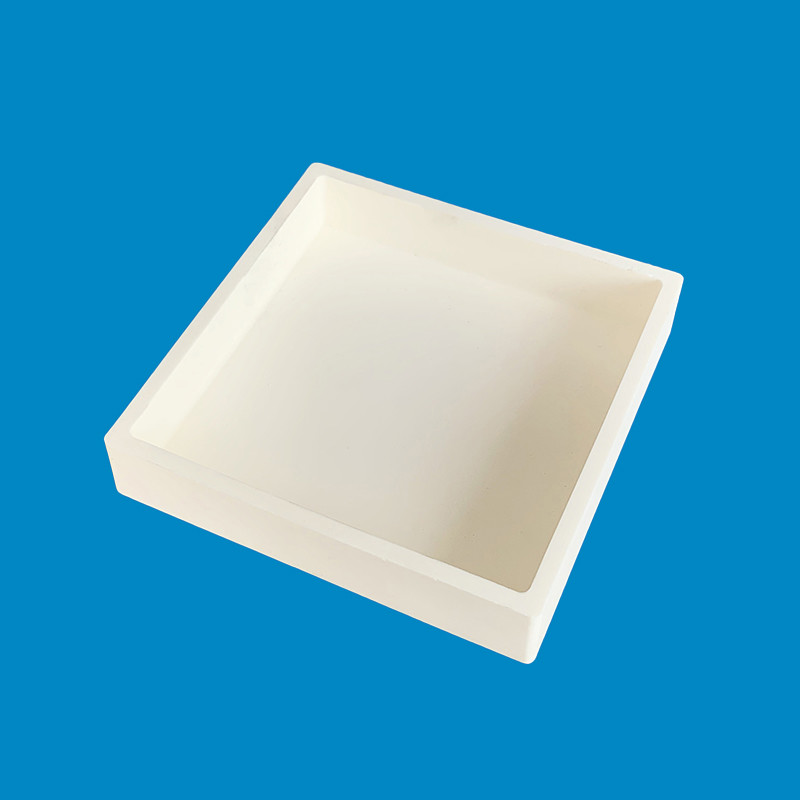

Product Images
Heat Resistant Refractory Ceramic Alumina Crucible Customized 0
Heat Resistant Refractory Ceramic Alumina Crucible Customized 1
Heat Resistant Refractory Ceramic Alumina Crucible Customized 2
Heat Resistant Refractory Ceramic Alumina Crucible Customized 3
Heat Resistant Refractory Ceramic Alumina Crucible Customized 4
Heat Resistant Refractory Ceramic Alumina Crucible Customized 5
Heat Resistant Refractory Ceramic Alumina Crucible Customized 6
Heat Resistant Refractory Ceramic Alumina Crucible Customized 7
