Name: ODM Alumina Ceramic Thermocouple Protection Tubes Insulator For High Temperature
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Ceramic Tube
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	Ceramic Tube	Color:	Yellow Or White
Temperature Capability:	High Heat Resistant	Dielectric Constant:	10εr
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100	Package:	Carton
Highlight:	Alumina ceramic thermocouple protection tubes , ceramic thermocouple protection tubes Insulator , ODM ceramic tubes for high temperature

Product Description

ODM Alumina Ceramic Thermocouple Protection Tubes Insulator

High insulation, heat resistant alumina ceramic tubes designed for extreme temperature environments with excellent chemical resistance properties.

Key Specifications

Attribute	Value
Material	Ceramic Tube
Color	Yellow or White
Temperature Capability	High Heat Resistant
Dielectric Constant	10εr
OEM/ODM	Acceptable
Origin	Wuxi Jiangsu, China
MOQ	100 units
Package	Carton

Product Description

Alumina ceramic tubes are essential components in industrial and scientific applications, offering superior performance in high-temperature environments. These tubes are particularly valuable in metallurgical processes for melting and smelting operations.

Material Specifications

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric Constant	εr	10	10	10	10

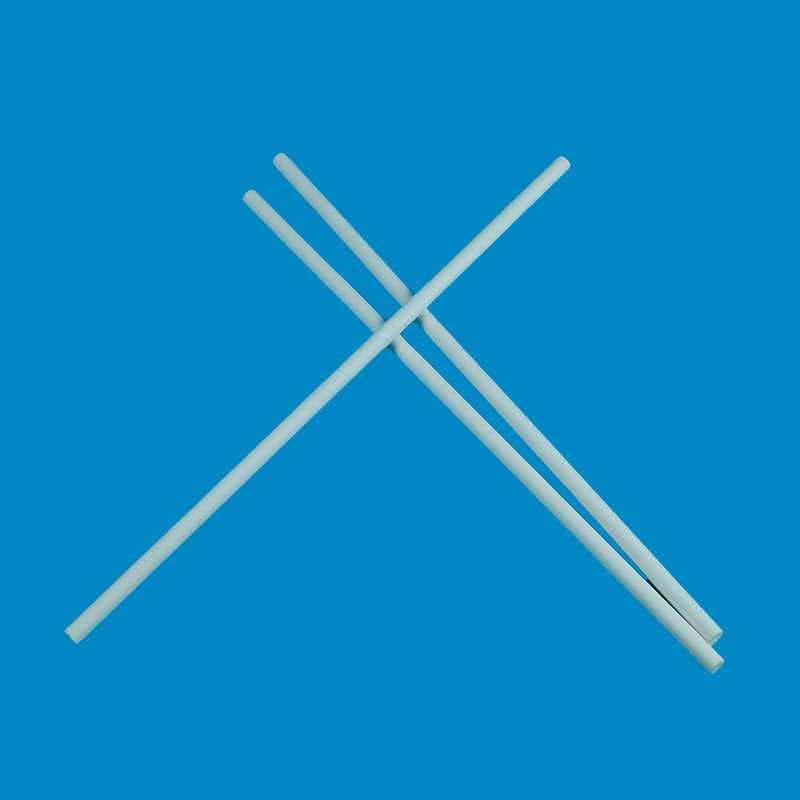

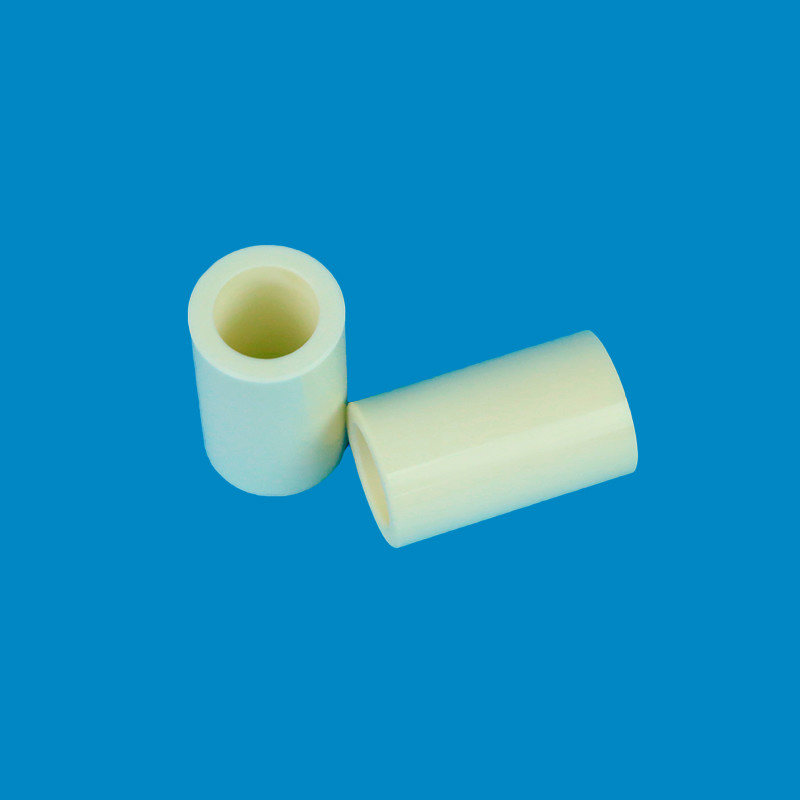

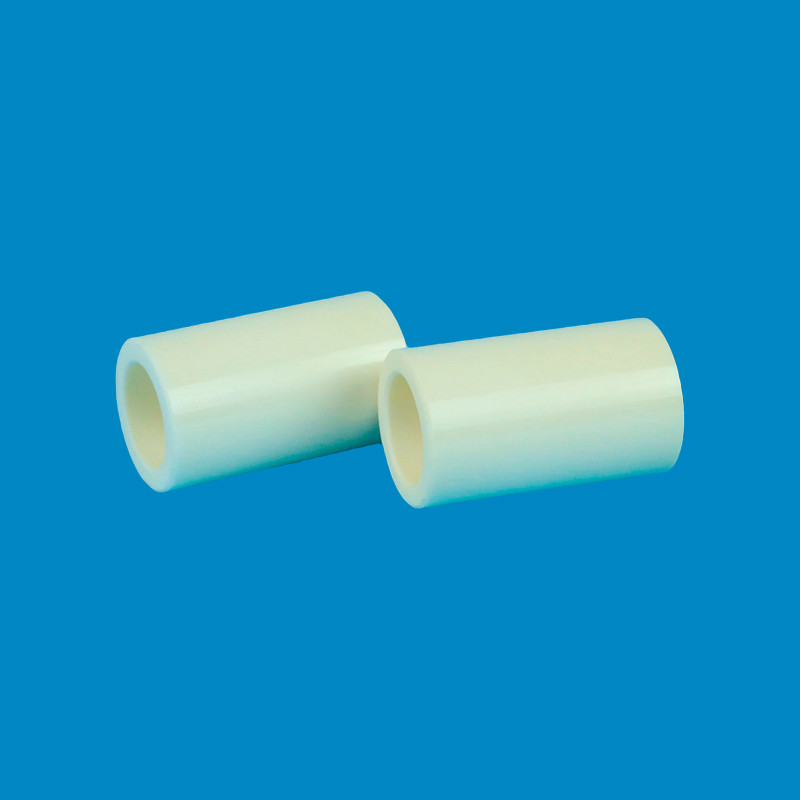

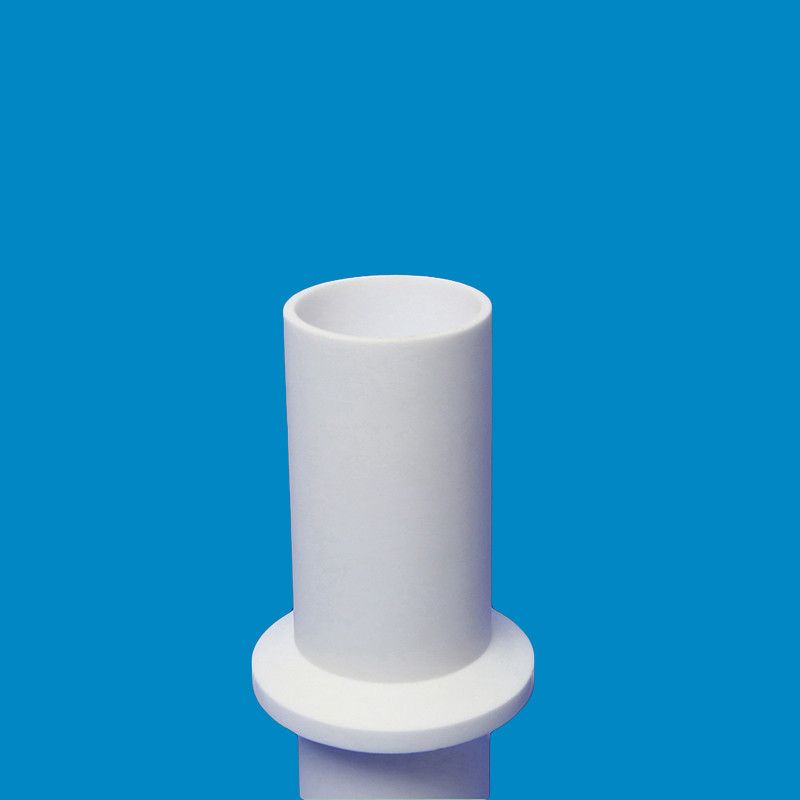

Product Images

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	Ceramic Tube

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
