Name: Industrial Bespoke Ceramic Parts Al2O3 Alumina Impact Resistance For Crushing Machine
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Alumina Ceramic Crusher Parts
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	Alumina Ceramic Crusher Parts	Color:	Yellow Or White
Maximum Use Temperature:	1600-1650℃	Wear Resistance:	High Wear Resistance
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100	Package:	Carton
Highlight:	Industrial bespoke ceramic parts , crushing bespoke ceramic parts , Al2O3 Alumina industrial ceramic parts

Product Description

Industrial Bespoke Ceramic Parts Al2O3 Alumina Impact Resistance For Crushing Machine

Product Attributes

Attribute	Value
Material	Alumina Ceramic Crusher Parts
Color	Yellow Or White
Maximum Use Temperature	1600-1650℃
Wear Resistance	High Wear resistance
OEM，ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100
Package	Carton

Product Description

Revolutionize Your Crushing Process With Alumina Ceramic Crusher Parts Yellow Or White

Key Features

Simple and robust structure with low operating costs
Utilizes stone-to-stone principle for minimal wear
High crushing efficiency with energy-saving operation
Capable of both fine and coarse grinding functions
Performs consistently with material moisture content up to 8%

Technical Specifications by Alumina Content

Property	Unit	A95% Alumina	A97% Alumina	A99% Alumina	A99.7% Alumina
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

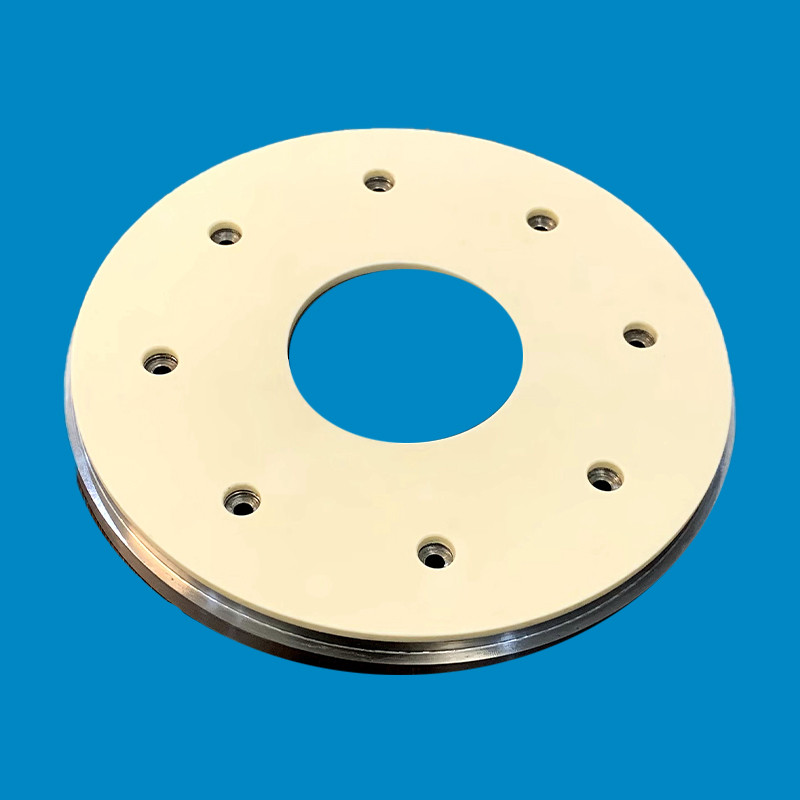

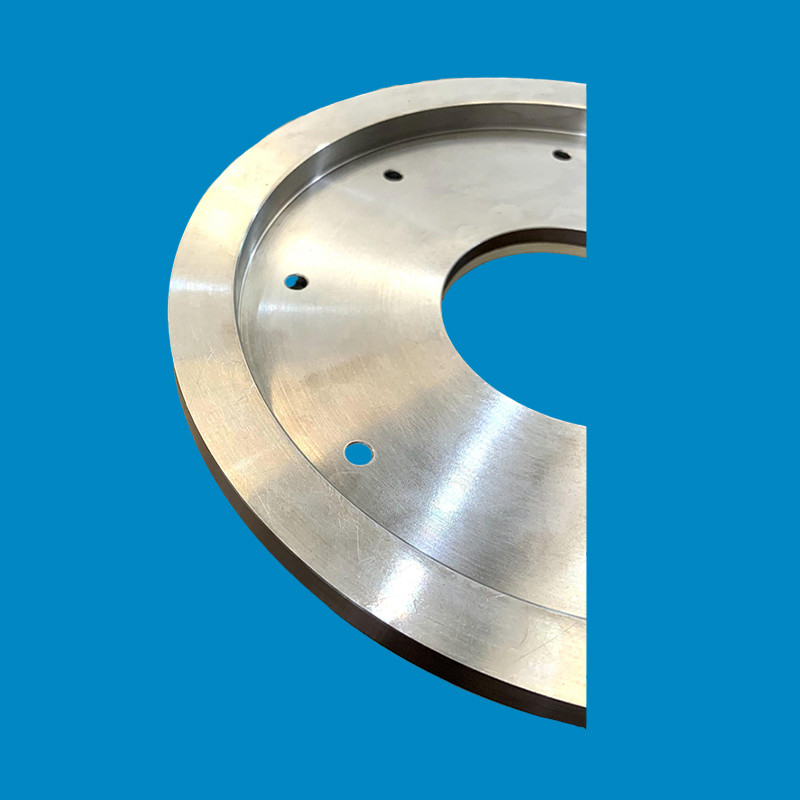

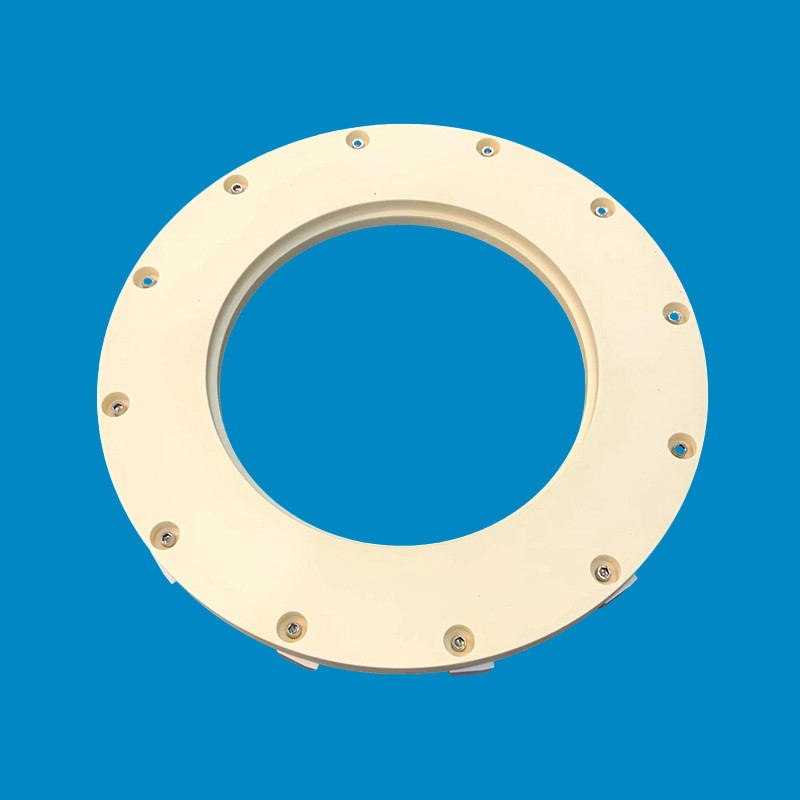

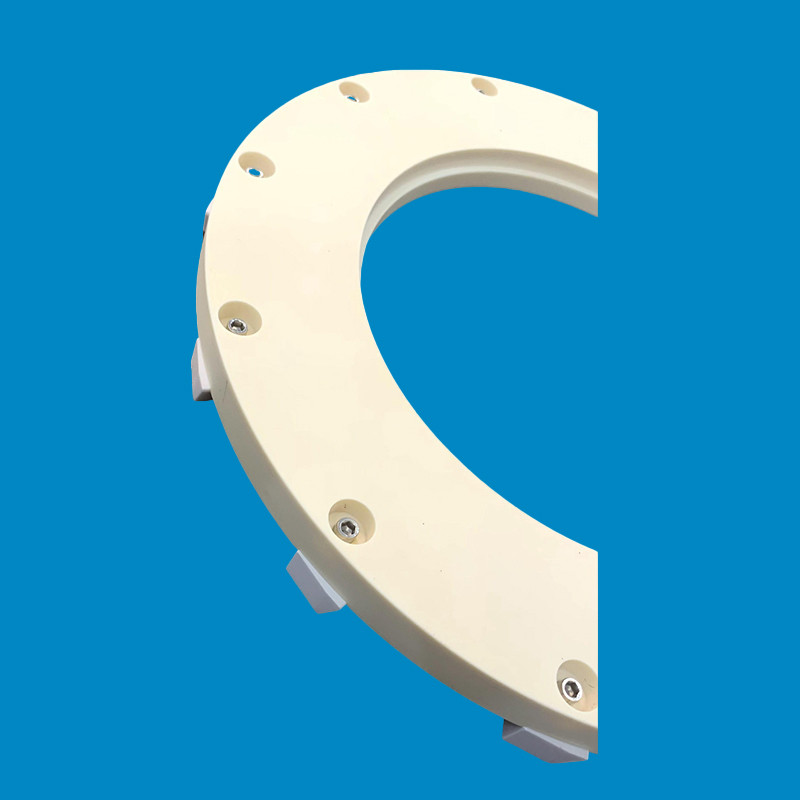

Product Images

Industrial application

Yellow components

White components

Assembly demonstration

Industrial application

Heat resistant ring

Precision components

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	Alumina Ceramic Crusher Parts

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
