Zirconia Al2O3 Alumina Ceramic Components Accessories Impact Resistance

Basic Information

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	Alumina Ceramic Crusher Parts

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK

Get Best Price

Chat Now

Detail Information

Material:	Alumina Ceramic Crusher Parts	Color:	Yellow Or White
Maximum Use Temperature:	1600-1650℃	Wear Resistance:	High Wear Resistance
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100	Package:	Carton
Highlight:	Zirconia Alumina Ceramic Components , Impact Resistance Alumina Ceramic Components , Al2O3 zirconia components

Product Description

Zirconia Al2O3 Alumina Ceramic Components Accessories Impact Resistance

Product Overview

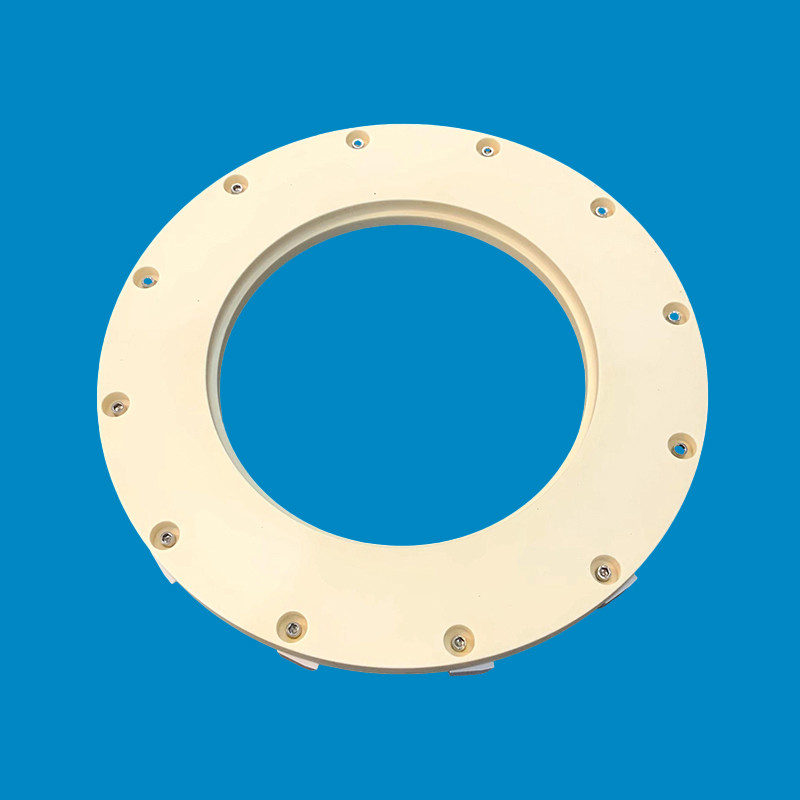

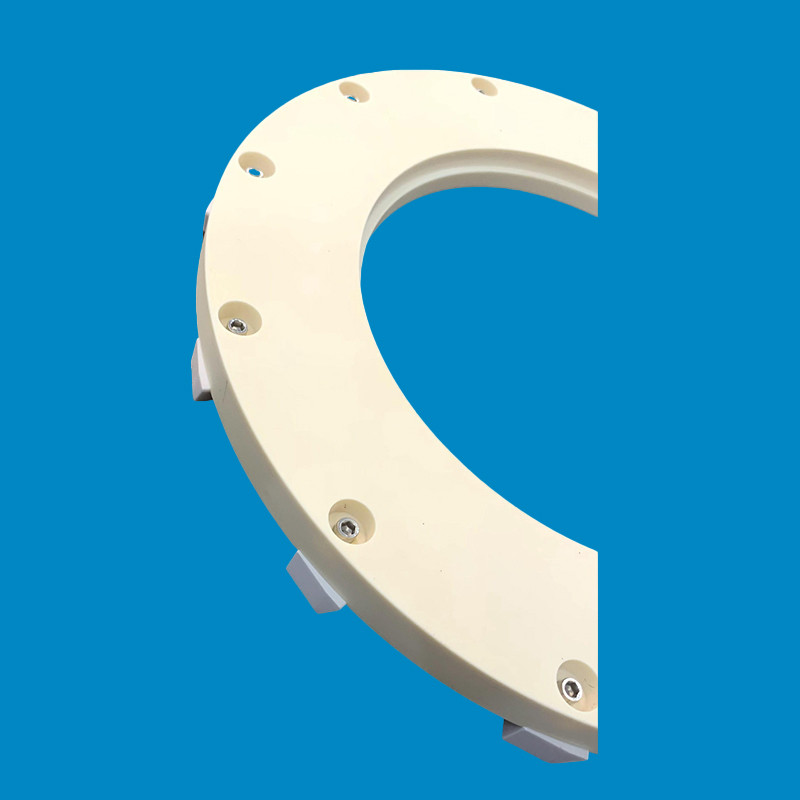

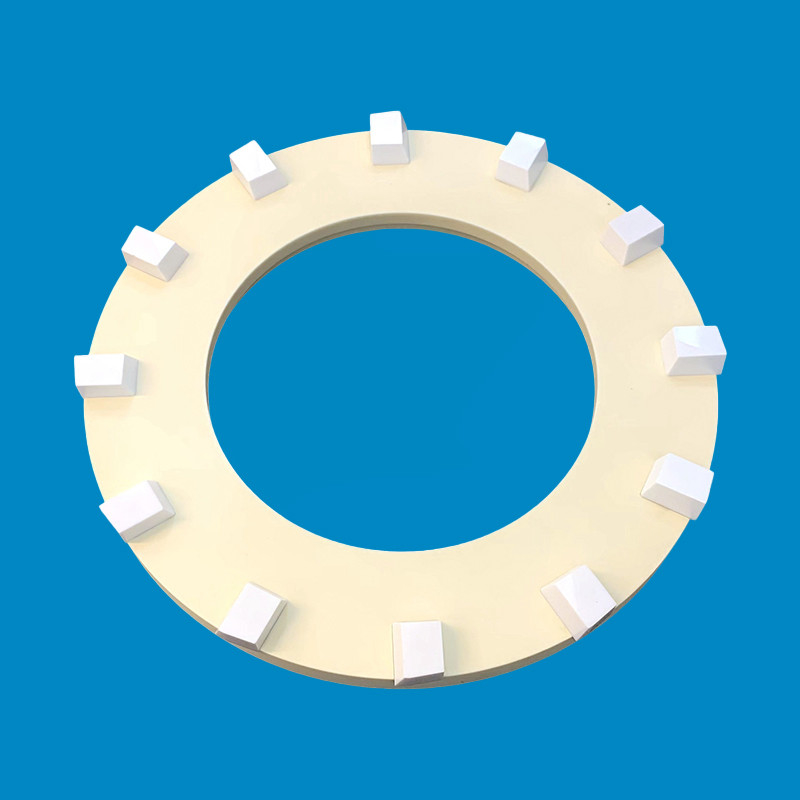

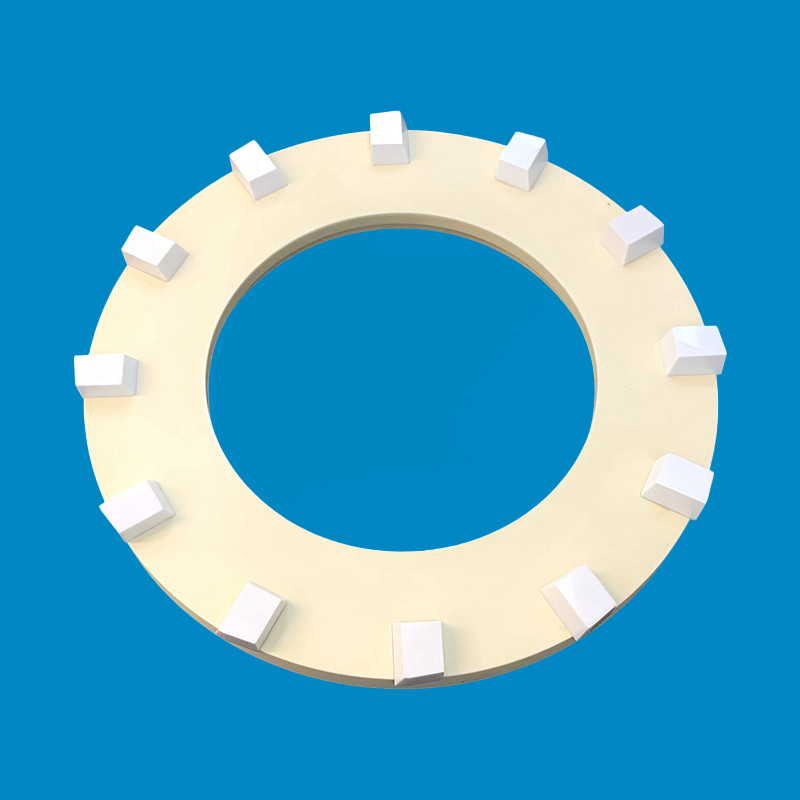

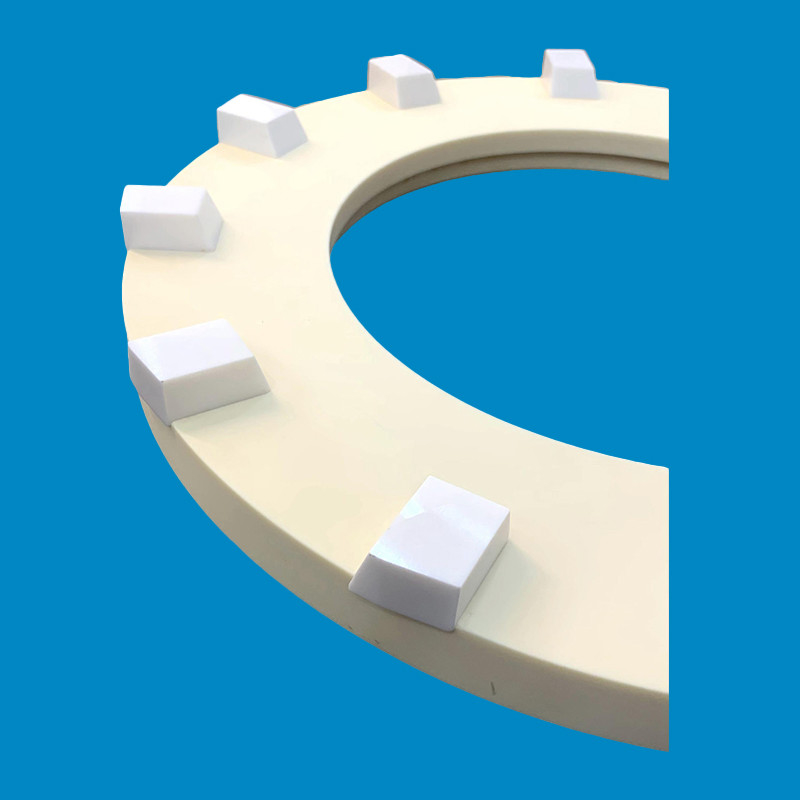

Al2O3 Alumina Ceramic Crusher Parts Accessories with High Wear Resistance for crushing equipment. The specialized ceramic machine operates by directing large pieces of material vertically into a high-speed rotating impeller, where centrifugal force creates multiple collisions for thorough crushing.

Key Attributes

Attribute	Value
Material	Alumina Ceramic Crusher Parts
Color	Yellow Or White
Maximum Use Temperature	1600-1650℃
Wear Resistance	High Wear resistance
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100
Package	Carton

Technical Specifications

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10
