Name: Custom Pumps Plunger Ceramic Thermocouple Insulators High Temperature
Brand: Yixing Hengyuan Ceramic Technology Co., Ltd.
SKU: Ceramic Plunger
Price: 10.00 USD
Availability: InStock

Detail Information

Material:	Ceramic Plunger	Color:	White
Difficulty Of Disassembly:	Easy To Disassemble	Accuracy:	High Precision
OEM，ODM:	Acceptable	Orgin:	WUXI JIANGSU CHINA
MOQ:	100	Package:	Carton
Highlight:	custom Plunger Ceramic , high temperature Plunger Ceramic , custom ceramic thermocouple insulators

Product Description

Custom Pumps Plunger Ceramic Thermocouple Insulators High Temperature

Product Overview

Versatile Ceramic Plunger with High Precision for Pharmaceutical, Environmental and Chemical Industries. Ceramic plunger pumps offer superior physical performance, making them ideal for demanding industrial environments. With hardness exceeding 9 on the Mohs scale, these plungers provide exceptional wear resistance and extended service life compared to traditional metal alternatives.

Key Attributes

Material	Ceramic Plunger
Color	White
Difficulty Of Disassembly	Easy To Disassemble
Accuracy	High Precision
OEM/ODM	Acceptable
Origin	WUXI JIANGSU CHINA
MOQ	100
Package	Carton

Technical Specifications

Material	Unit	A95% Alumina Ceramics	A97% Alumina Ceramics	A99% Alumina Ceramics	A99.7% Alumina Ceramics
Density	g/cm³	3.6	3.72	3.85	3.85
Flexural Strength	Mpa	290	300	350	350
Compressive Strength	Mpa	3300	3400	3600	3600
Modulus of Elasticity	Gpa	340	350	380	380
Impact Resistance	MPam1/2	3.9	4	5	5
Weibull Modulus	M	10	10	11	11
Vickers Hardness	HV0.5	1800	1850	1900	1900
Thermal Expansion Coefficient	10-6K-1	5.0-8.3	5.0-8.3	5.4-8.3	5.4-8.3
Thermal Conductivity	W/Mk	23	24	27	27
Thermal Shock Resistance	△T℃	250	250	270	270
Maximum Use Temperature	℃	1600	1600	1650	1650
Volume Resistivity at 20℃	Ω	≥1014	≥1014	≥1014	≥1014
Dielectric Strength	KV/mm	20	20	25	25
Dielectric constant	εr	10	10	10	10

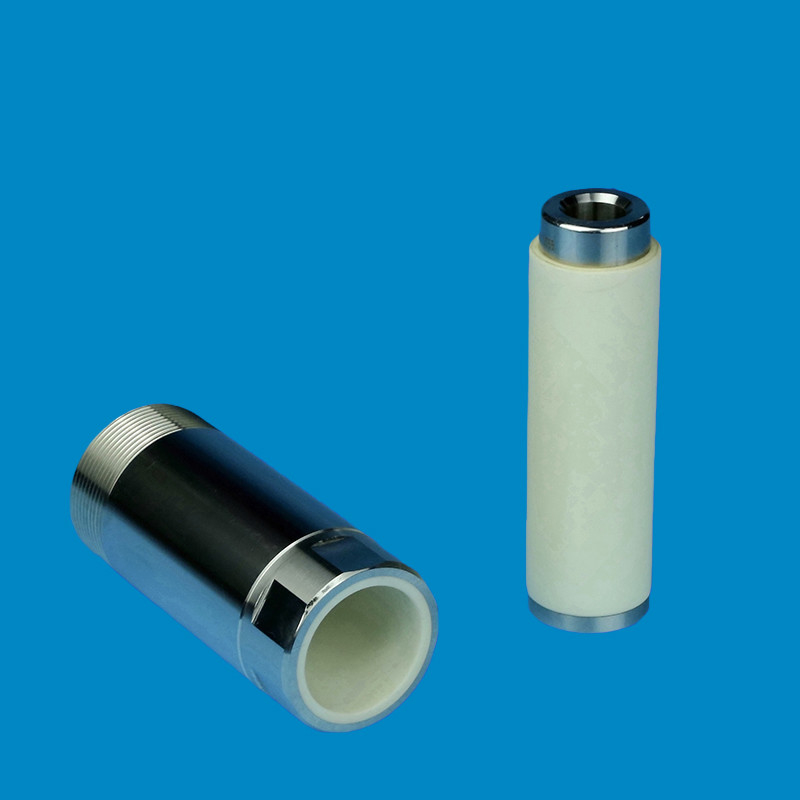

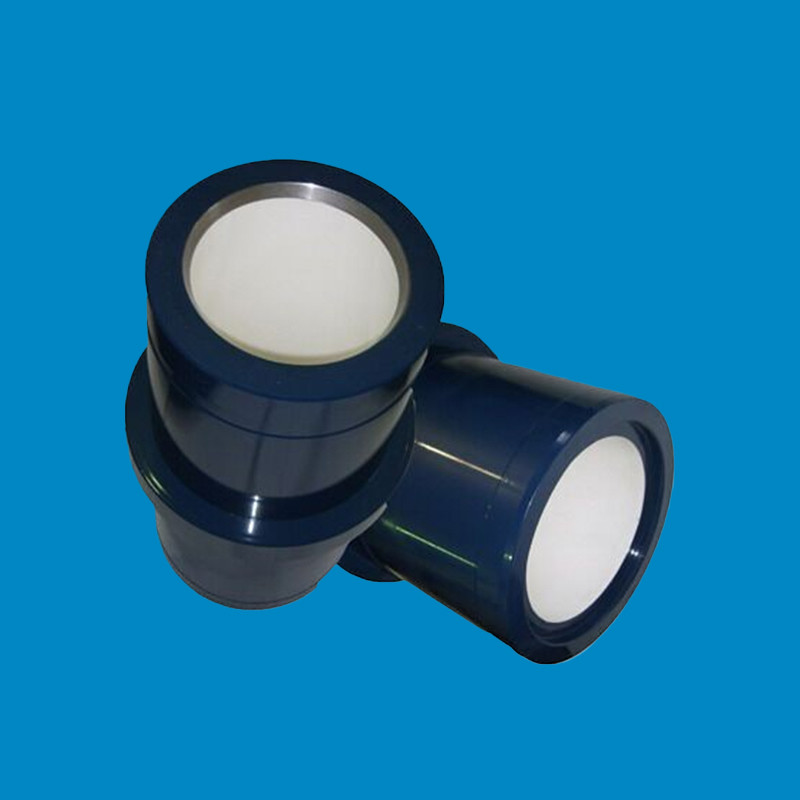

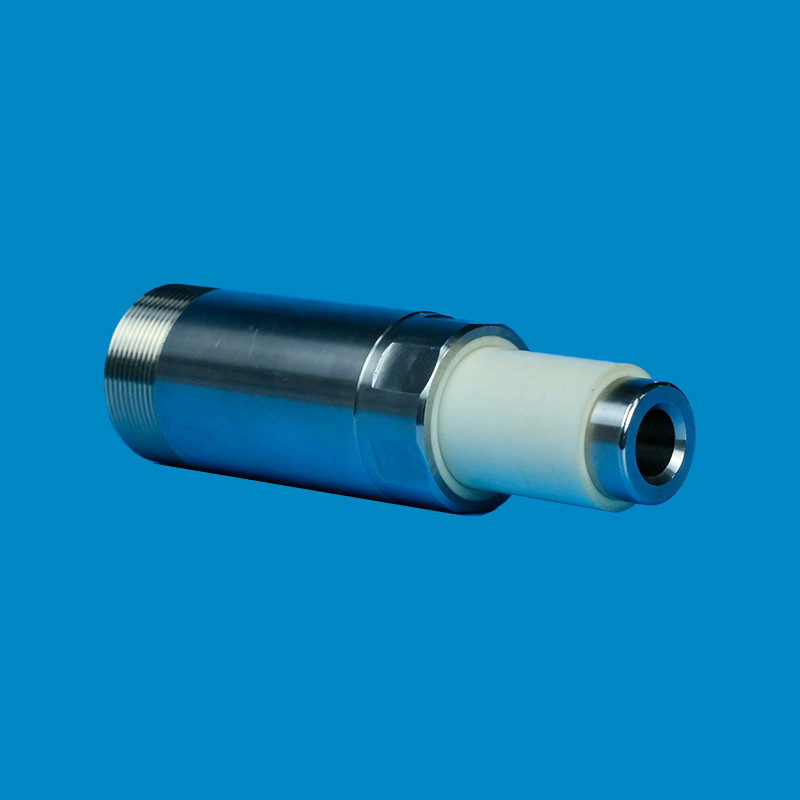

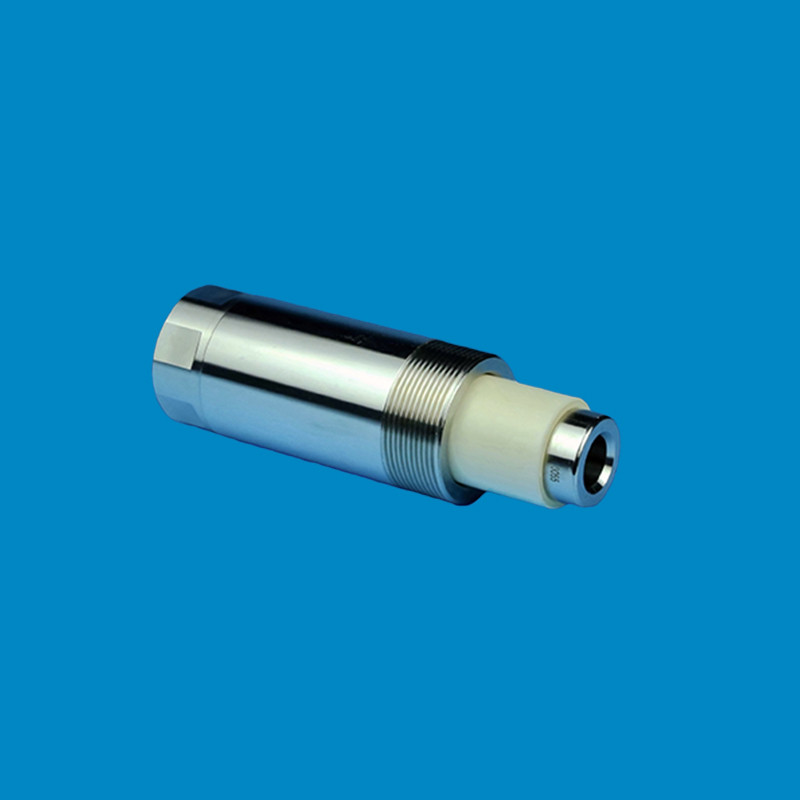

Product Images

Tag:

Place of Origin:	WUXI JIANGSU CHINA
Brand Name:	HENGYUAN
Certification:	CE,UL
Model Number:	Ceramic Plunger

Minimum Order Quantity:	100
Price:	$1-$20
Packaging Details:	Carton
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	5000 PCS/WEEK
