products
Home > Products> Plunger Ceramic> High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication

High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication

High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication
Basic Information
Place of Origin: WUXI JIANGSU CHINA
Brand Name: HENGYUAN
Certification: CE,UL
Model Number: Ceramic Plunger
Minimum Order Quantity: 100
Price: $1-$20
Packaging Details: Carton
Delivery Time: 20 DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 PCS/WEEK
Get Best Price
Chat Now
Detail Information
Material: Ceramic Plunger Color: White
Difficulty Of Disassembly: Easy To Disassemble Accuracy: High Precision
OEM，ODM: Acceptable Orgin: WUXI JIANGSU CHINA
MOQ: 100 Package: Carton
Highlight:

high hardness ceramic plunger pump

,

self lubrication ceramic plunger pump

,

self lubrication ceramic insulator

Product Description

High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication
Product Specifications
Material:
Ceramic Plunger
Color:
White
Difficulty Of Disassembly:
Easy To Disassemble
Accuracy:
High Precision
OEM, ODM:
Acceptable
Origin:
WUXI JIANGSU CHINA
MOQ:
100
Package:
Carton
Product Features
  • Made from high-performance technical ceramic materials offering exceptional hardness, wear resistance, and durability
  • Excellent high temperature resistance and corrosion resistance properties
  • Features a micro porous structure on the working surface for self-lubrication
  • Innovative design improves sliding friction and lubrication mechanisms compared to traditional plunger pumps
Material Properties
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10
Product Images

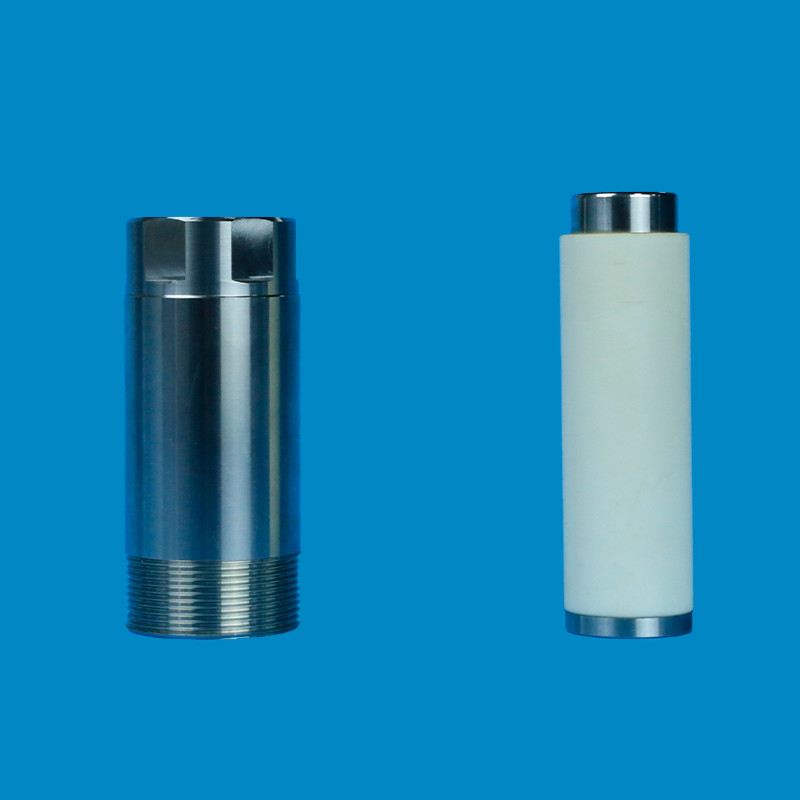

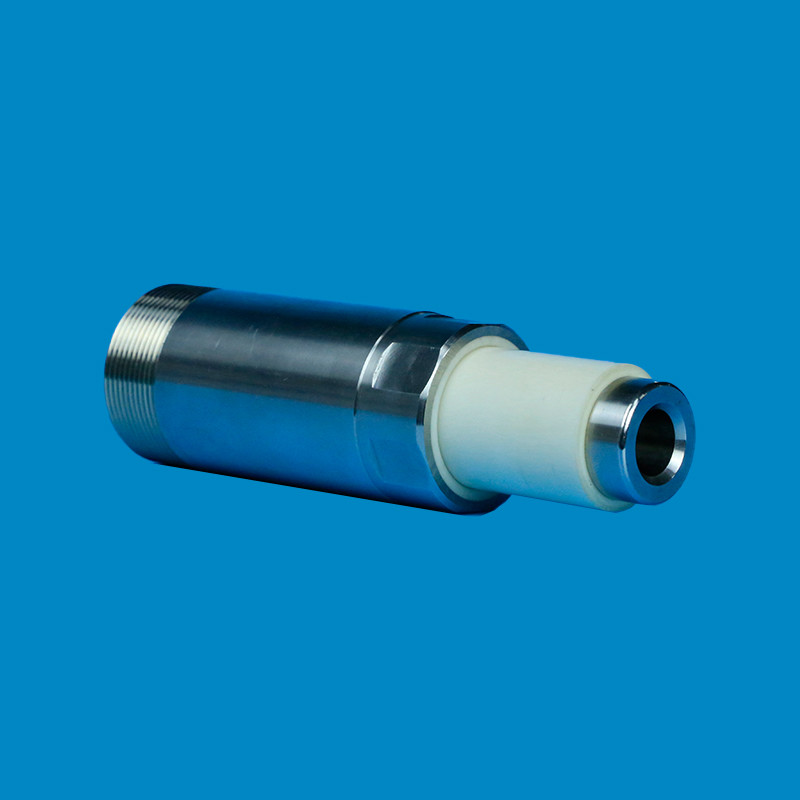

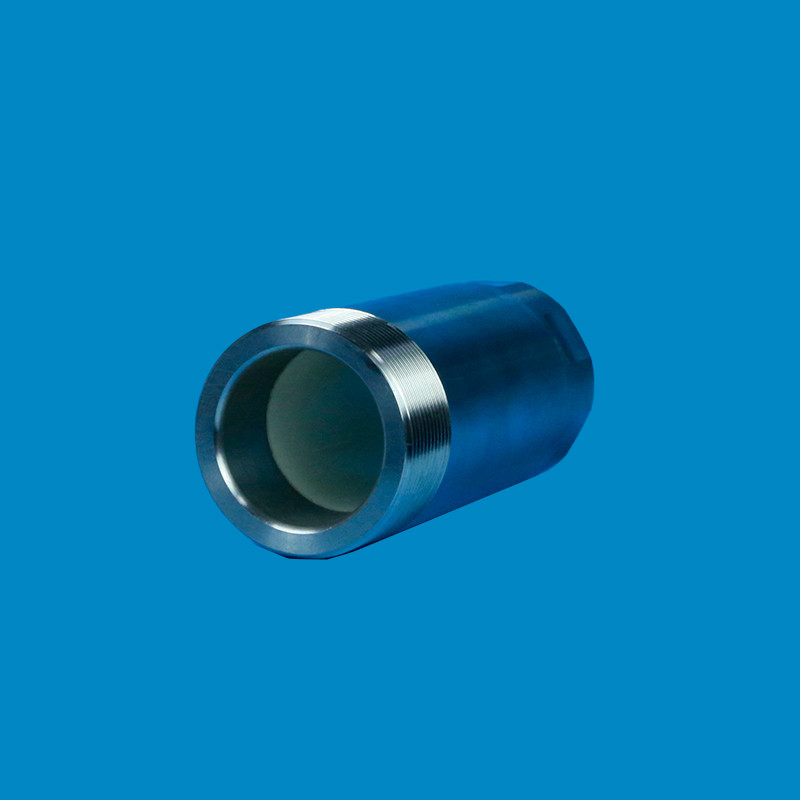

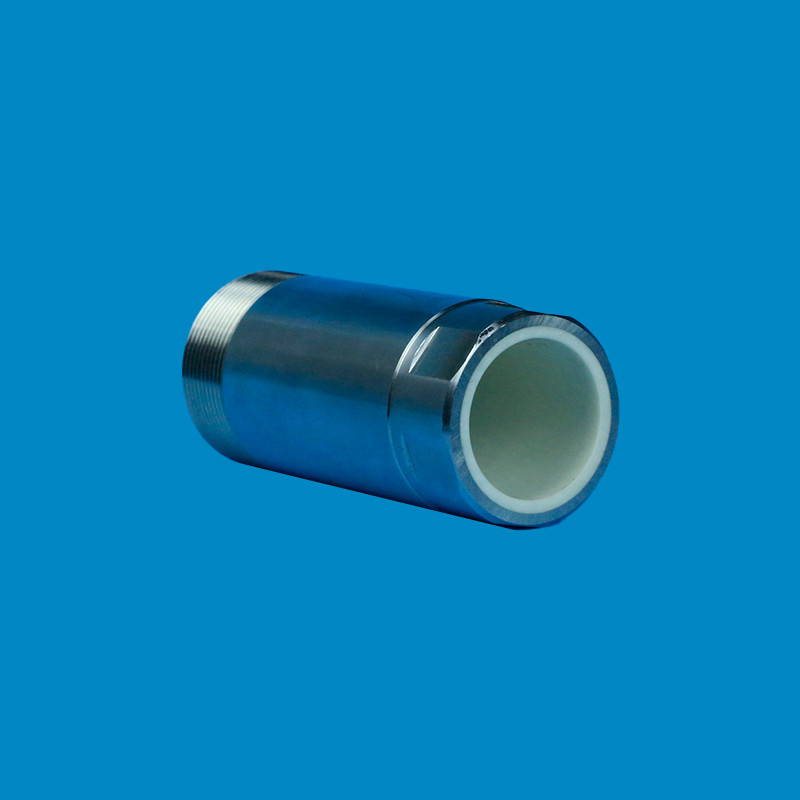

High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 0
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 1
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 2
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 3
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 4
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 5
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 6
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 7
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 8
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 9
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 10
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 11
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 12
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 13
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 14
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 15
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 16
High Hardness Alumina Ceramic Plunger Pump Insulator Self Lubrication 17

Tag:

alumina insulator,

alumina ceramic insulator,

ceramic plunger pump
